14m 16m 18m working height HOWO hydraulic aerial work vehicle for sale
high quality and best price 18m working height aerial working platform truck for sale
The main technical advantages of CLW brand folded truck mounted aerial working platform is as below.
a,The boom and outriggers are made of low-alloy high-strength profiles, no welds, beautiful appearance, and strong resistance to deformation.
b, The working bucket adopts an external mechanical self-balancing design, so that the working bucket is always in a balanced state when working.
c, The working bucket is equipped with night operation lights to make night operation safer.
d, Four hydraulic outriggers, with H-shaped structure, larger bearing surface and higher stability. Each hydraulic outrigger is individually adjustable and can be adjusted according to the working ground environment. Even if the ground is uneven, the whole vehicle can be stabilized by adjusting the outriggers.
e, The rear outriggers of the vehicle are equipped with warning outline lights to improve the safety of warnings during vehicle operation.
f, The working arm is a three-section folding type, with two upper and lower operating systems, and has a double working position of a working bucket and a turntable. Various operations can be completed on the working bucket and on the turntable. The getting on and off are interlocked, and the operation is safe and reliable. The throttle valve is used to achieve stepless speed regulation during the boarding operation. The throttle valve is equipped with a waterproof cover to prevent the valve from getting stuck in rust.
g, The turntable can rotate 360°, using a vertical/horizontal reducer, the torque is larger and safer than the worm gear.
h, The turntable and working bucket are equipped with remote start and stop switches to control the start and stop of the host. When the operating vehicle is parked at the operating point for a long time, the flameout switch can be turned on at this time to reduce fuel consumption, save energy and reduce emissions, and be more environmentally friendly and economical.
i, The hydraulic system is equipped with a hydraulic locking system, whose function is to lock the cylinder in place after reaching the required position to prevent accidents.
j, Use manual and electric integrated dual-purpose electromagnetic electric control multi-way valve to ensure that even if the circuit fails, the
Manual operation can be used to ensure the safety of personnel working at heights.
k, Steel toolbox and pattern anti-skid platform, stainless steel fence, beautiful layout, stable operation and maintenance convenient.

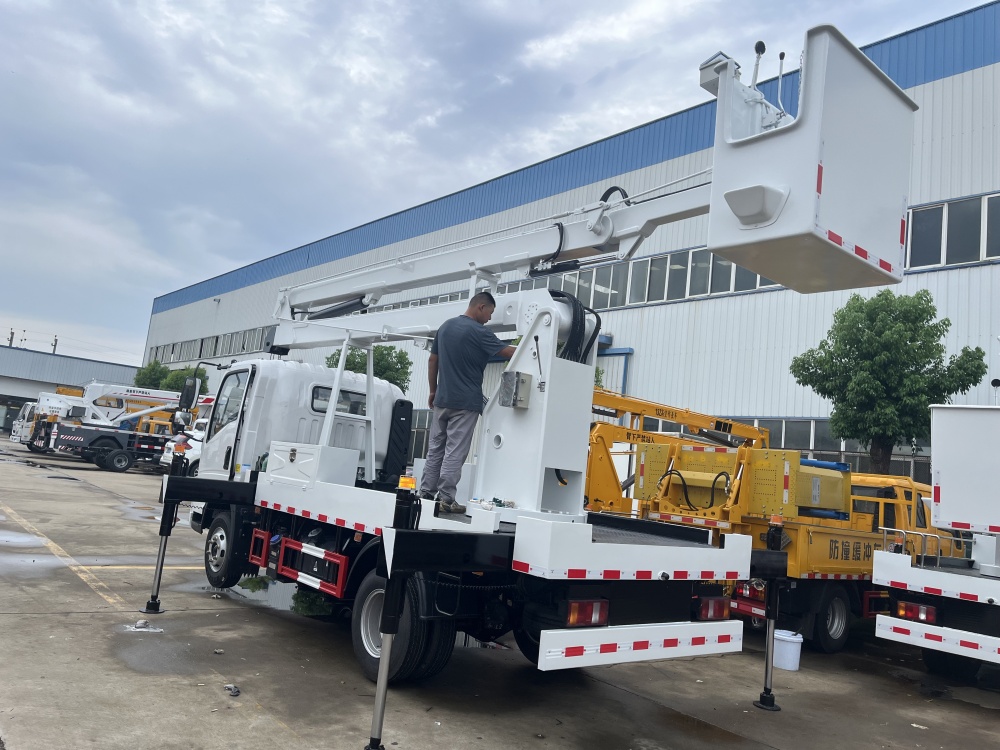

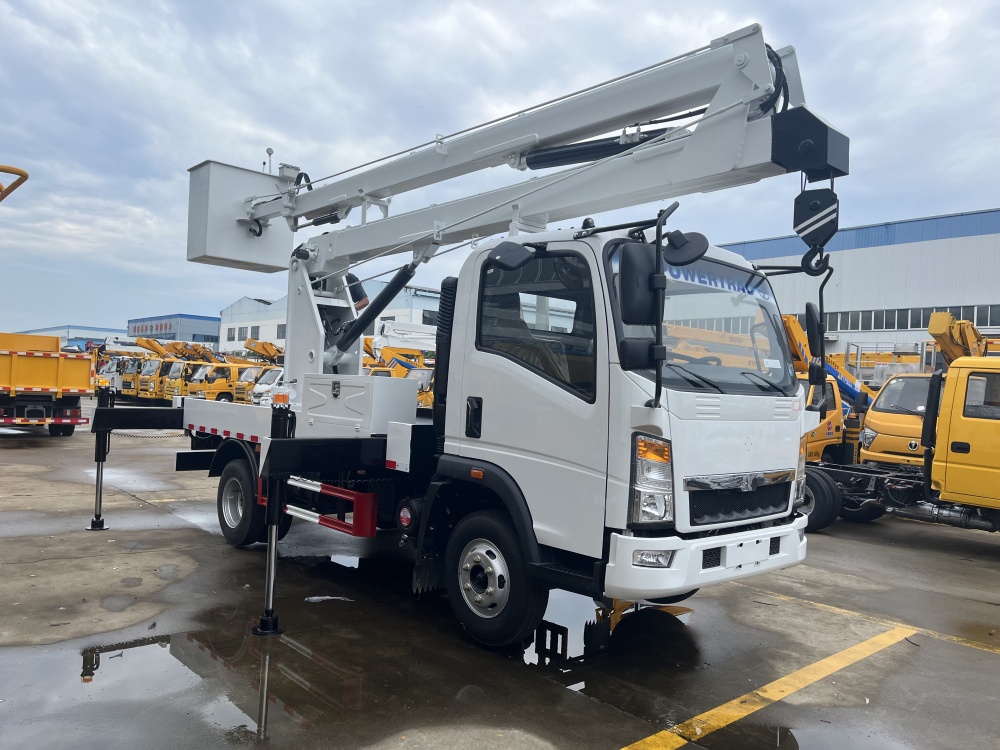

More pictures of SINOTRUK HOWO aerial working platform truck 18m is as below.
main technical parameters of SINOTRUK HOWO aerial working platform truck is as below.
Truck model | CLW5070JGKZ3 | ||||
Main parameters of the whole vehicle | Driver cab | Single row, Reversible | |||
Truck chassis model | ZZ1070 | ||||
Engine | model | Rated power（KW/hp） | |||
CY4102BZQ | 85/115 | ||||
Overall dimension(L*W*H)（mm） | 8600×2200,2320×3200,3350 | ||||
Total mass（kg） | 7400 | Curb mass（kg） | 7205 | ||
wheelbase（mm） | 3800 | ||||
Front/rear suspension（mm） | 1130/2470,1130/2360 | ||||
Structure and special parameters for the upper body | max working height（m） | 18.5m | |||
Working range at the max working height（m） | 2.3m | ||||
Max working range（m） | 8.2m | ||||
Working height at the max working range（m） | 10.1m | ||||
Outriggers type | H type | ||||
Outriggers Longitudinal span（mm） | 4650mm | ||||
Outriggers Horizontal span (mm) | 4220mm,4100mm | ||||
Max lifting height(hook centre)（m） | 8.4m | ||||
Max lifting mass (kg) | 1000kg | ||||
Working platform bucket dimension(L*W*H (mm) | 1200mm×610mm×1100mm | ||||
