Customizee HOWO 140hp 4T telescopic truck with crane for Africa

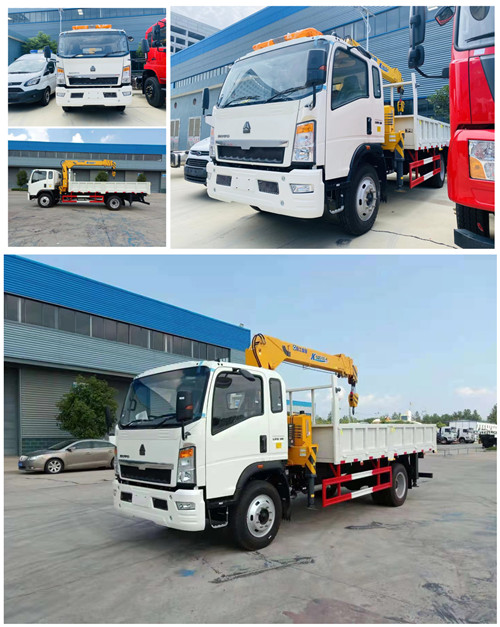

One unit of SINO TRUK HOWO 4*2 YUCHAI 140hp Euro 2 diesel 4tons telescopic crane boom mounted on cargo truck is finished. Look at the pictures of HOWO 4tons telescopic boom mounted on cargo truck is as below.
customized SINO TRUK HOWO brand 4*2 LHD 140hp diesel 4T telescopic cargo truck with crane for sale
Customized SINO TRUK HOWO 4T cargo truck with crane, adopts SINO TRUK HOWO 2080mm wider one row and a half driver cab, 4500mm wheelbase, YC4E140-33 140hp diesel Euro 2 engine, 6 speed gearbox, 3.2tons front axle/8tons rear axle, 8.25R20 rail tires, air cut braking and clutch steering, etc.
The overall dimension of HOWO 4*2 LHD 140hp diesel cargo truck with crane is 7995*2450*3000(mm); while the cargo box box dimension(L*W*H): 5200*2350*600(mm). Client choose to install high quality XCMG brand 4tons 4 sections telescopic crane boom.(The lifting height is 11.5m; while the working radius is 9.6m.
Main technical parameters of XCMG brand 4*2 LHD 140hp diesel 4tons telescopic crane boom mounted on cargo truck is as below.
| Product name | HOWO 4*2 LHD tons XCMG telescopic boom mounted on truck for sale | |
| Chassis type | ZZ1127 | |
| Parameters | Overall dimension length/width/height (mm) | 7995*2450*3000 |
| Cargo body dimension (L*W*H)(mm) | 5200*2350*600 | |
| GVW(kg) | 11990(Kg) | |
| Kerb Mass(kg) | 5870(Kg) | |
| Rated mass(kg) | 5925(Kg) | |
| Approach angle/ Departure angle(mm) | 18/21 (°) | |
| Front suspension/rear suspension(mm) | 1160/2335 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 95 | |
| Engine | Type | YC4E140-33 |
| Displacement/Power(kw) | 4257ml/105KW/140hp | |
| Manufacturer | YUCHAI | |
| Type | 4-in-line inter-cooling; intercooling | |
| Chassis | Drive Type | 4×2 LHD |
| Wheelbase(mm) | 4500 | |
| Tread(front/rear) | 1761/1595(mm) | |
| Front axle | 3.2 Ton | |
| Rear axle | 8 Ton | |
| Transmission | 6 forward gear,1 reverse gear, mechanical transmission | |
| Braking system | Air braking | |
| Cab | SINO TRUK HOWO 2080mm wider one row and a half driver cab | |
| Number of spring axle(front/rear) | 8/9+6 | |
| Tire Type | 8.25R20 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5200*2350*600(mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install High quality XCMG brand SQS100-4 4T telescopic crane boom | |
| Crane boom sections | 4 sections | |
| Crane boom lifting height (m) | 11.5m | |
| Crane boom working radius (m) | 9.6m | |
| The color of the whole truck is upon request. | ||
The boom truck is also called cargo crane truck, hydraulic crane truck, boom truck with crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc. The hot sale line is 0086 13329899995.
