50cubic meters hydraulic system aluminum alloy material animal feed container semitrailers for Saudi Arabia
high quality and best price 50cbm bulk feed container semitrailer
High quality and best price 50cubic meters hydraulic system discharging bulk feed container semitrailers

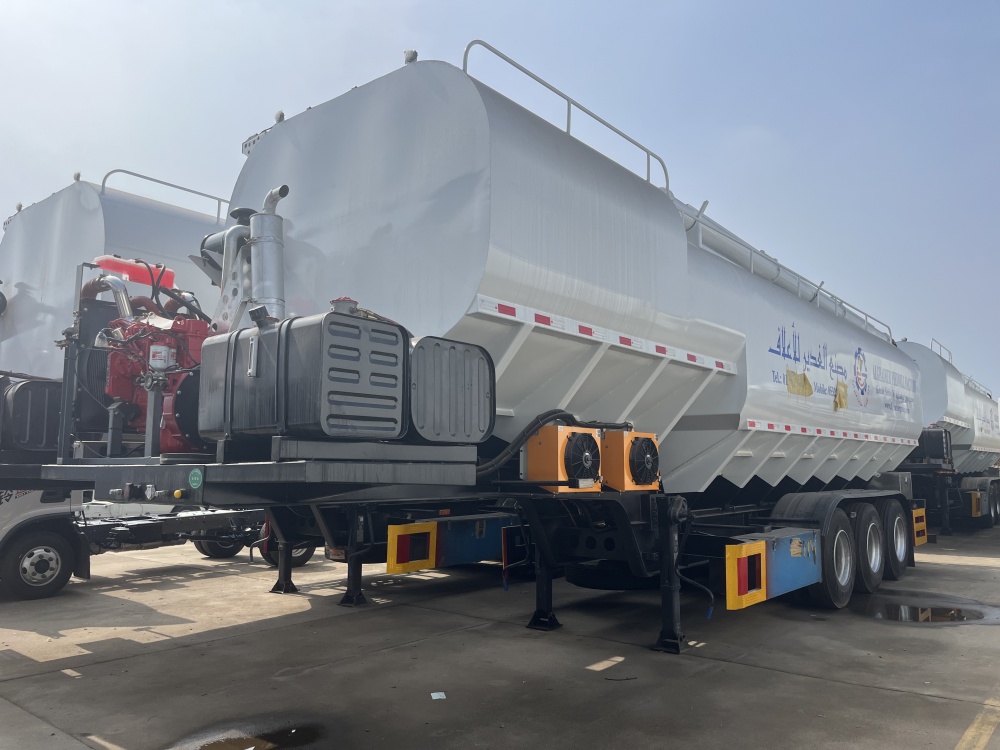

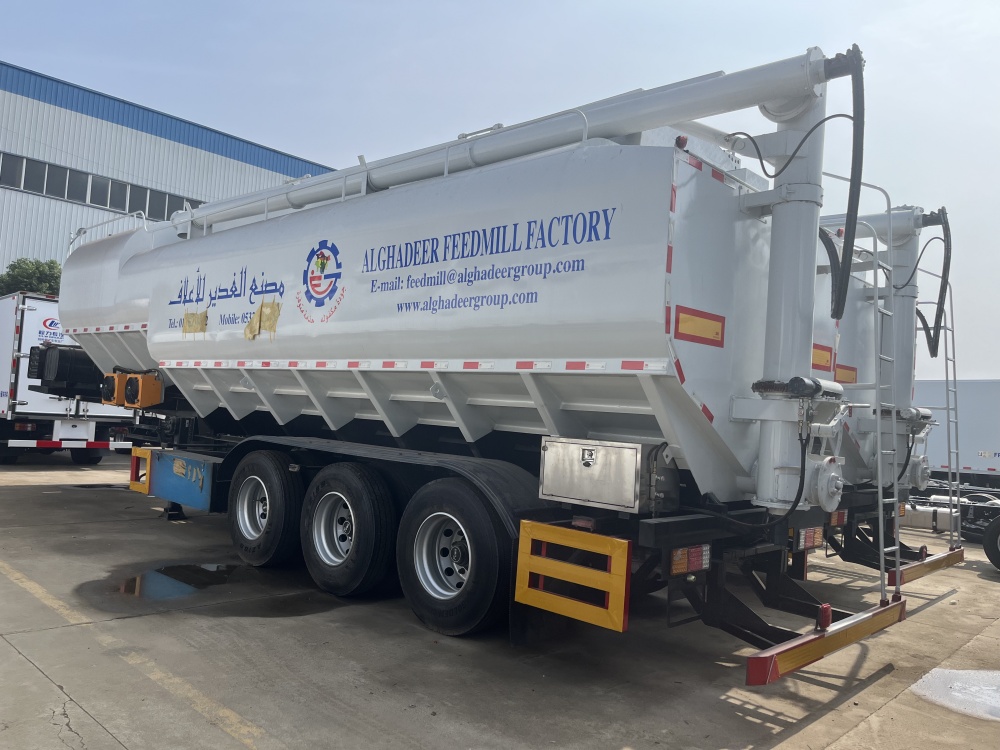

Two units of 50cubic meters aluminum alloy material customized for ALGHADEER GROUP in ALHASA, Saudi Arabia.
After two months' production, we have finished this model-bulk feed container semitrailer. At last, client choose hydrauic system discharging bulk feed container semitrailer.
the details of 50cubic meters aluminum alloy material animal feed container semitrailer is as below
Overall dimension(L*W*H): 12000×2550×3950（mm ）(approximate)
28T single-action outriggers, 90# tractor pin, 12R22.5 12PR tires, steel spring suspension, 3 axles.
A, Bulk feed container material: 5mm thickness aluminum alloy ellipse shape, 8mm thickness secondary beam,feed inlet dimension: 900X900.
B, Volume: 50cubic meters.
C, compartments: 5 compartments
D, discharging way: hydraulic system discharging, multi-way valve, DENISON hydraulic pump, EATON motor, 75KW diesel engine, radiation installed, 220Liters volume hydraulic oil tanker, 200Liters volume diesel tanker.
E, length of auger: 8m length
F, paint color: white color, the company logo free to paint.
G, retrofitting: pneumatic switch box for feed outlet.
The bulk feed container adopts high quality 5mm thickness aluminum alloy ellipse shape tanker welded, 8mm thickness secondary beam, 50cubic meters volume. There are 5 independent compartments.
Working principle ： hydraulic system discharging, hydraulically controlled the feeding auger lifting up-down or flatting and rotating ±180° . Easy discharging. The bulk feed container color: white color; the auger color: blue color. Color is request.
The devices of driving part for the semitrailer is as below.
The sterna of Front wing of the beam upper: 8mm; bottom: 10mm(double layers), middle: 8mm; the height of the rear wing is 480mm, W higher strengthen bend type and
Straight beams through, 90# tractor pin, 28T outriggers, 13T FUWA axles*3, 16T braking pads, 12.00R20 rail tires*12, 16×8 pieces spring, 1200mm tool box*1, spare tires frame*1, etc.
The upper parts of bulk feed container is as below.
1, the volume of the bulk feed tank is 50cbm, the feed tanker adopts high quality 4mm thickness carbon steel. There are 4 * auger for the whole vehicle are driven by 4* 5.5KW electronic motors. The top mounted auger is controlled by the hydraulic system, rotating left-right 180°. There are 6 compartments for 6 different feed pellets. The discharging pipe Tilt 60 °, the vertical discharging height is 8.5m. It is needed about 50m to fully discharging.
Poultry feed truck is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the feed trucks manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories. More information, please feel free to contact with Ms. Anita Deng.
