Customized FOTON AUMARK 220hp diesel Sewer dredging vehicle for sale
| Product name | FOTON Brand Sewer dredging vehicle for sale | ||
| Total mass(Kg) | 15995 | Vacuum tanker volume(m3) | 10 |
| Rated mass(Kg) | 7650 | Overall dimension(L*W*H)(mm) | 8700,8500×2500×3250 |
| Curb mass(Kg) | 8150 | Driver cab seated person | 3 |
| Approach/departure angle(°) | 21/15 | Front/rear suspension(mm) | 1450/2550,1350/2650 |
| Axle nos. | 2 | wheelbase(mm) | 4700 |
| Axle load(Kg) | 5995/10000 | Max speed(Km/h) | 85 |
| Truck chassis | |||
| Truck chassis | BJ1163VLPHG-A | Manufacturer | Foton |
| Steel spring | 9/12+9 | Tire specification | 11R22.5*6 |
| Fuel type | Diesel | Front tread(mm) | 1935 |
| Emission standard | Euro 2 | Rear tread(mm) | 1860 |
| Engine model | Engine manufacturer | displacement(ml) | power(Kw) |
| YC6J220-33 | YUCHAI POWER | 7225 | 176 |
Design advantages of the new square water tanker:
A, the new square appearance, beautiful and atmospheric, the tank body is folded back and forth, left and right, with stiffeners, durable and not deformed,
B, There are long tool boxes on both sides of the tank body, which is convenient for storing working tools.
C. There is a rolling door at the front of the tank, which has ample space for inspection and maintenance, such as gearbox, sandwich power take-off, high-pressure pump and other core components.
D. The high-pressure reel at the rear can be rotated by 180°, which is convenient for rewinding and unwinding the tube from various angles and cleaning operations. The operating system is on the reel, which is convenient for operation and saves labor.
E, self-made large filter (no disassembly and washing type) can be installed to make it more convenient to use, no need to disassemble and wash the filter frequently, saving labor.

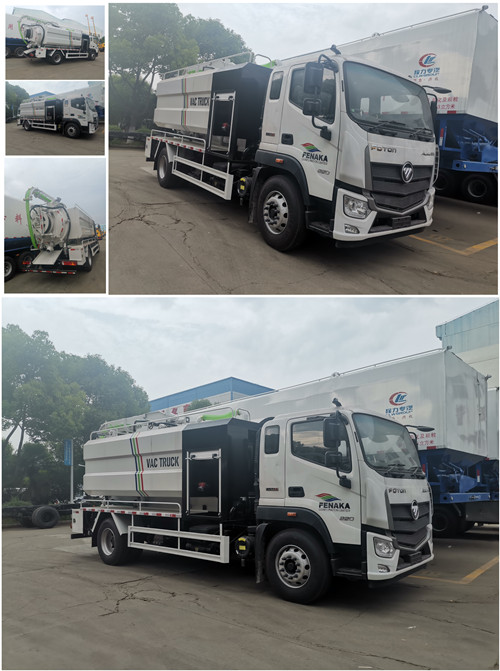

More pictures of FOTON AUMARK brand diesel sewer dredging vehicle manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! FOTON AUMARK 4*2 10CBM sewer dredging vehicle for sale
Upper part of the sewer dredging vehicle manufactured by Chengli Special Automobile Co., Ltd. is as below.
1. The area of the water tank is approximately: 10cbm. The water tank is made of high-quality steel plate of Wuhan Iron and Steel Co., Ltd., with a wall thickness of 4mm. The middle of the tank body is reasonably designed with a wave plate, and the upper surface of the tank body is designed with inspection manholes.
2. The water inlet of the water tank is a ball valve fire hydrant, one on each side (convenient to switch, durable), with fire interface, hand-washing valve, and low-water drainage function
3. The high-pressure pump has a flow rate of 215L and a pressure of 22 MPa. (Prevent impurities from entering the pump), with air blowing function (in winter, the water in the high-pressure pump and high-pressure pipe can be blown clean to prevent freezing damage).
4. The rear high-pressure reel is hydraulically discharged and retracted, with a shower tube function (after the high-pressure pipe is operated, the high-pressure pipe can be flushed when it is recycled)
5. The tail is a large reel with clean style, the reel is enlarged, thickened and reinforced, and can be rotated at 160°. The operating systems are arranged neatly, with operating instructions and precautions, a seismic pressure gauge with a diameter of 100, with a damper (the pressure display is more accurate)
6, with 2 tool boxes, with rolling door (convenient for high-pressure pump maintenance and repair)
7. The vehicle adopts galvanized protective net, pattern non-slip guardrail (beautiful and durable)
