Customized FOTON AUMARK 4*2 LHD 240hp diesel 50,00-60,000 day old chick transported truck for sale,FOTON Brand new Euro 2 livestock poultry baby birds van truck for sale
FOTON AUMARK 4*2 LHD 240HP diesel day birds transported vehicle, adopts high quality FOTON AUMARK 2200mm LHD one row and a half driver cab, 5150mm wheelbase, YC6A240-33 176KW/240hp diesel Euro 2 engine, 8 speed manual gearbox, 5.5tons front axle/10tons rear axle, 11R22.5 rail tires, air cut braking, air conditioner, power steering ,etc.
The technical parameters of upper part for FOTON AUMARK day old chicks transported truck as below
The cold van body dimension of FOTON AUMARK day old chicks transported carrier is 6670×2300×2400 (mm). The interior and exterior of the van box body with fiber reinforced plastics(FRP), and the middle insulation layers of 80mm thickness PU foam. There are sliding windows and waterproof blind-windows. The air will be from the van body floor ventilation
Left and right sides of the van body are with 12 sets 40*40 Mesh Plates for the cold air from the reefer. There are several 320*320 electronic ventilator fans mounted on the truck top and the rear door plate. Folding Shelves are for the two sides van body. Both Two sides of the van body with 5 blind-windows; while top mounted sky-window. Three lines of ventilator Air Ducts mounted on the van floor. The reefer choose high quality China made engine-powered refrigerator( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab). The heating system is selective.

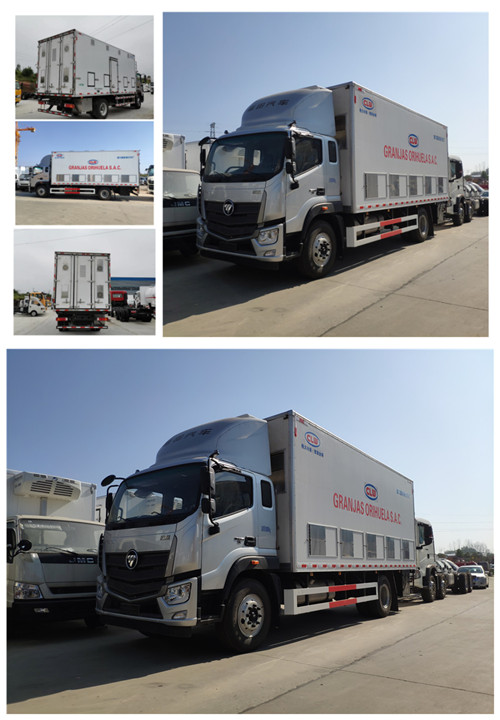

More pictures of FOTON AUMARK 4*2 LHD 60,000 day old chick transported truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
customized FOTON AUMARK 60,000 day old chick transported truck for overseas clients for sale
main technical parameters of FOTON AUMARK 4*2 LHD 6.7m length day old chick transported truck is as below.
| Product name | Foton aumark 4*2 LHD day old chick transported truck | ||
| Overall dimension(L*W*H)(mm) | 9100×2470×3760 | Chick van box dimension(L*W*H)mm | 6670×2300×2400 (mm). |
| Drive type | 4*2 LHD | Total mass | 15795 |
| Gearbox | 8 speed transmission, manual | Tyre specification | 9.00R20 rail tyres *6+1 |
| Power steering | Yes | Front/rear axle | 5.5tons front axle/10tons rear axle |
| Air cut braking | Yes | Driver cab | Foton Aumark 2200mm one row and a half driver cab with air conditioner |
| Engine | YC6A240-33 | Emission standard | Euro 2 |
| Rater power | 176KW/240hp | Displacement (ml) | 7255 |
Main technical parameters of day old chick van body
| Performance and consumption | |||
| Heating system | Watering system | Without, client choose to install | |
| Cooling system | One refrigerated reefer | China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) | |
| Ventilation system | Air duct installed on the floor for air flow | three line as the pictures show | |
| Cold air ducts on the two sides of the van body | two cold air ducts for the refrigerated reefer | ||
| Blind windows | 5 sets of blind windows for the left and right van sides (as the pictures show); two bigger water-proof blind window at the front van plate. Blind Windows: 5*2+2=12 | ||
| electronic ventilator fans | 1, 4 sets of electronic ventilator fans with sliding doors for the rear plate door; 5*2 sets of electronic ventilator fans for van top Electronic fans: 4+5*2=14 | ||
| Sky-window | Top mounted sky windows*4 Sky-windows: 4*1=2 | ||
| Dimension | |||
| Chick van box body | Length | 6670mm | |
| Width | 2300mm | ||
| Height | 2400mm | ||
| Refrigerated van box | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices; Aluminum-patterned baseplate; | ||
Day old chicks transported vehicle is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc.
It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost.
There are ventilation and heating system inside the farm poultry transported truck. There are several electronic ventilator fans (according to the length of the insulation van) on the top for ventilating, assuring offering enough oxygen for the baby young chicks/ducks/ gooses in the van. There are several windows (according to the length of the chick box body) for ventilating, heating, oxygen-offering.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of van truck in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply refrigerated truck, insualtion body van box, cargo van truck, baby chick transported truck, etc. And our CLW brand van truck have been exported to many countries all over the world. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
