customized CLW Brand aluminum alloy material 42cbm oil tanker semitrailer for sale
The fuel trailer is also called oil tanker trailer, oil trailer, fuel tank semi trailer,oil transport semi trailer, fuel tank trailer, fuel truck trailer,etc.The fuel tank semi trailer is mainly used to transport oil, fuel, gasoline, etc.
The fuel tank trailer is also called oil tanker trailer, oil tank semi trailer, fuel tank semi trailer,diesel oil semi trailer, fuel tanker trailer, fuel trailer truck,etc.The fuel tank semi trailer is mainly used to transport oil, fuel, gasoline, etc.
The fuel tank transport trailer equipped with oil tank, trailer axle, trailer landing gear leg antistatic device, discharge valve, pipeline system, 2pcs lockable discharge hose carrier on both side, spare tire carrier, top access ladder, antislip walkway, handrail, manhole, fire extinguisher, side lamps and reflective stickers,ABS, etc.

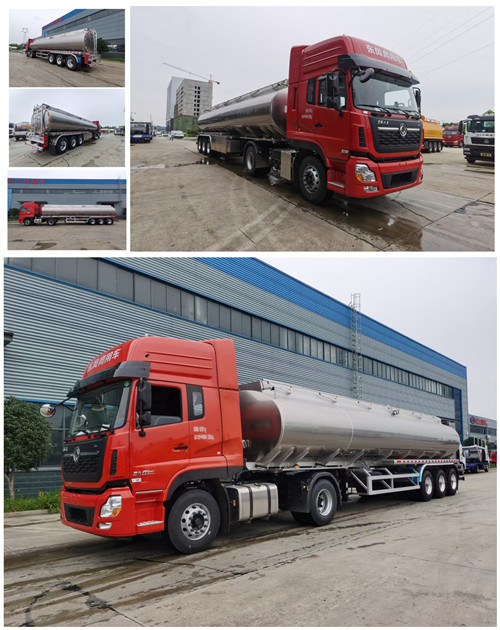

customized 42cbm aluminum alloy oil tanker semitrailer for sale
main technical parameters of CLW brand 3 axles 42cbm aluminum alloy oil tanker semitrailer manufactured by Chengli Special Automobile Co., Ltd. is as below.
| CLW9407GYYLV | |||
| Design Specification | |||
| Loading medium | Gasoline/diesel | ||
| Overall dimension(L*W*H)(mm) | 11000×2500×3750 | ||
| Total mass(kg) | 40000 | ||
| Curb mass(kg) | 6800 | ||
| Rated loading capacity (kg) | 33200 | ||
| Tanker | |||
| Rear tanker volume | 42cbm（42cbm with water） | ||
| Tanker section | Quasi ellipse | ||
| Tanker wall | Aluminum alloy 5182,6mm thickness | ||
| Endheads | Aluminum alloy 5182,6mm thickness | ||
| Anti-wave sheet | Aluminum alloy 5182,5mm thickness | ||
| pipeline and accessories | |||
| manholes & NO. | Euro standard aluminum alloy explosion-proof manholes*2 | ||
| respiratory valve | 2 sets aluminum alloy material | ||
| Bottom loading system | Bottom loading outlet | ||
| oil and gas recovery | oil and gas recovery | ||
| Anti-overflow | With Anti-overflowing system | ||
| Safety bottom valve | Aluminum alloy material 4 inch Safety bottom valve*1 | ||
| Discharging valves | Middle and right side | ||
| Accessories | |||
| Top-mounted rail fence | sectional Elevating fence, tanker top with anti-slip net | ||
| Storage box for hose | Stainless steel material hose storage box*left and right side | ||
| Discharging hose | L=6000,3inch Steel Wire Tube | ||
| Ladder | Ladder inside the tanker+ exterior part with ladder Tanker | ||
| Tool box | Aluminum alloy tool box | ||
| Spare tires frame | 1 | ||
| mud guard | Yes | ||
| Side Guardrail | Yes | ||
| Rear Bumper | Yes | ||
| Fire protection device | 8kg extinguishers*2 set | ||
| Antistatic device | Yes | ||
| Undercarriage part | |||
| Axles | 13tons FUWA drum braking axles | ||
| Suspension | Steel | ||
| Leaf Spring | 8piece | ||
| Tires | 12R22.5 | ||
| Wheel rim | 9.0wheel rim*12 | ||
| Lifting leg | 28TSingle action | ||
| Tracting pin | 90# | ||
Fuel tank tank mainly used for oil derivatives’s (gasoline, diesel, crude oil, lubricating oil and coal tar oil) transport and storage. Chengli special automobile co.,ltd. ,which is a famous manufacturer producing all kinds of special trucks.it can offer many kinds of oil tank trucks from 2000 liters to 40000 liters. Such as oil tank truck, fuel tanker truck, heavy oil tank truck, fuel oil tank truck,liquid tanker truck, gallon fuel tank truck,diesel oil tank truck,oil transportation tank truck,fuel tank cap truck, etc. And also support Customized. Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of fuel tank in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply Dongfeng fuel tank, ISUZU refueler truck, HOWO oil truck, Forland fuel dispenser truck, etc. More information, please feel free to contact with Ms. Anita.
