Customized SINO TRUK HOWO 4*2 LHD 22cbm bulk feed truck for sale,
Customized SINO TRUK HOWO 20cbm bulk feed truck for sale,
SINO TRUK HOWO 4*2 LHD 20-22cbm poultry feed transported truck, adopts SINO TRUK HOWO 2250mm luxurious one row and a half driver cab, HOWO 8 speed manual gearbox, 250mm beam, WP4.6NQ220E61 220hp diesel engine, 8tons front axle, 10.00R20 rail tires, 4700mm wheelbase, Central lock, electric door and window remote key, original air conditioner, etc.
The volume of HOWO brand bulk feed truck is 22cbm, adopts high quality carbon steel material. There are 3 compartments for 3 different kinds feed pellet, etc. Client chooses electronic system discharging or hydraulic system discharging, etc.

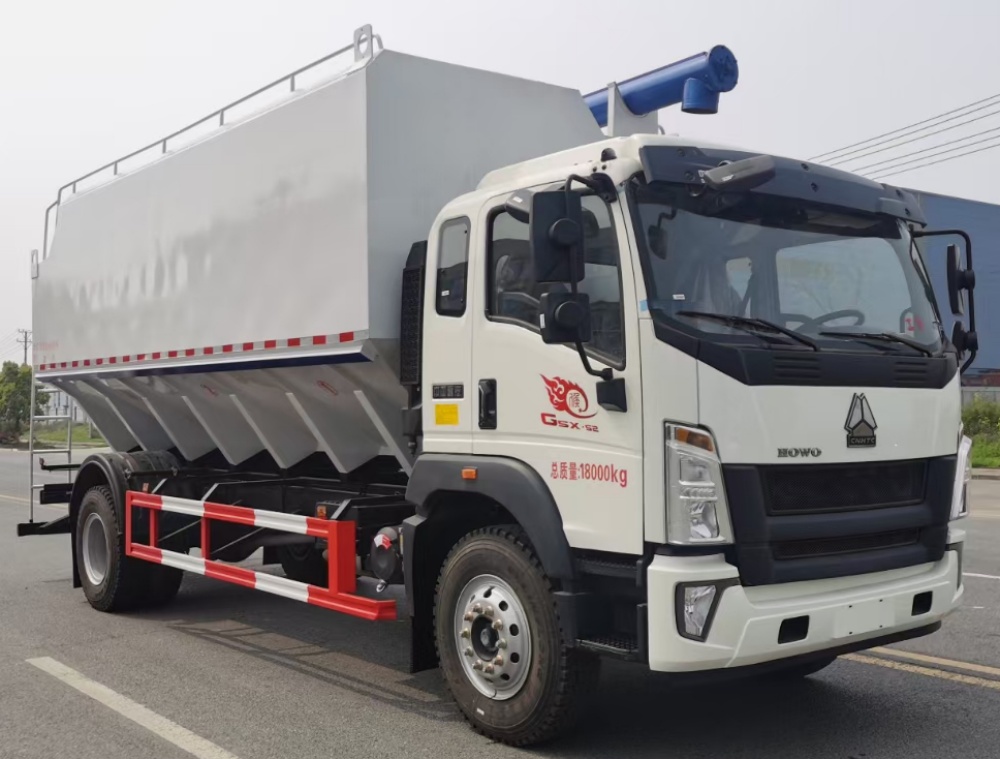

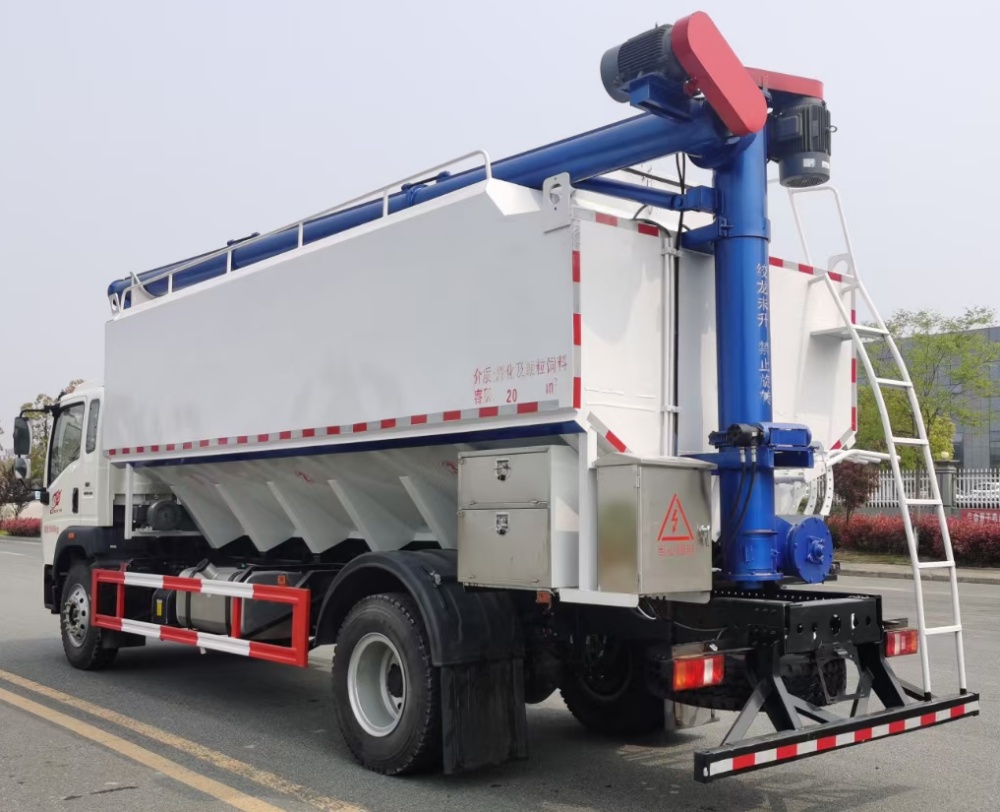

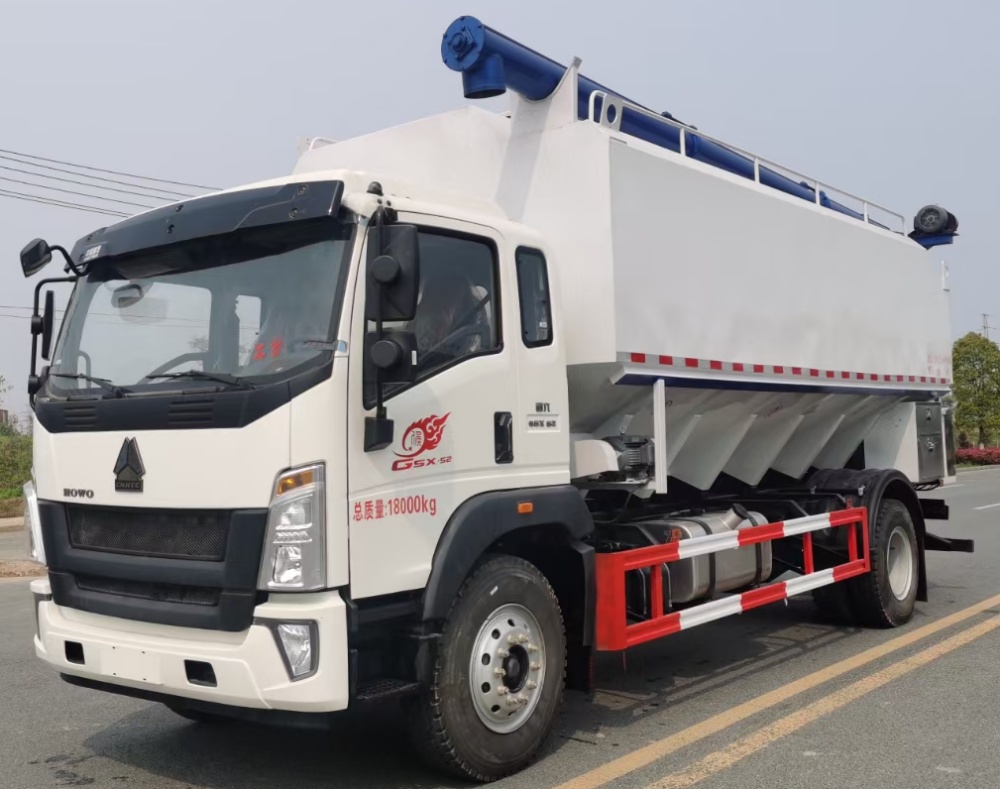

More pictures of SINO TRUK HOWO 4*2 LHD 220hp diesel 10tons bulk feed truck manufactured by Chengli Special Automobile Co., Ltd is as below.

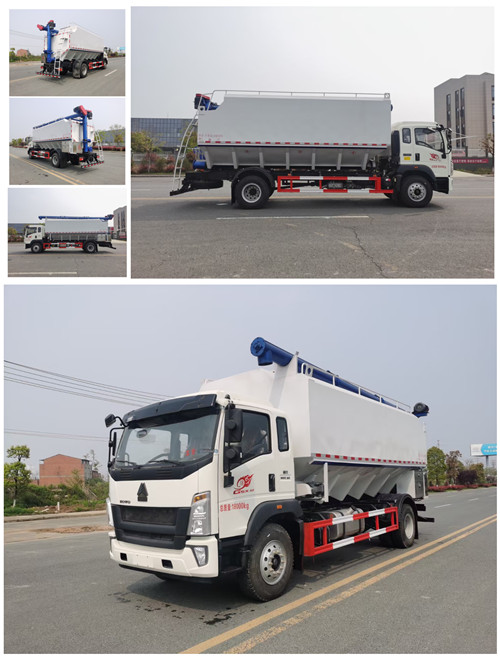

customized SINO TRUK HOWO 4*2 LHD 22cbm 10tons livestock poultry feed transported vehicle for sale
The specification of SINO TRUK HOWO 20cbm-22cbm bulk feed truck as below
| Main technical parameters | ||
| Product name | SINO TRUK HOWO 22cbm bulk feed truck for sale | |
| Overall dimension(L*W*H) (mm) | 9000×2500×3800 | |
| Total mass(Kg) | 18000 | |
| Curb mass(kg) | 9470 | |
| Rated mass(kgs) | 8400,8335 | |
| Max speed | 89km/h | |
| Transmission | Howo 10 speed gearbox, manual | |
| Tyre nos. | 6*10.00R20 | |
| Driver cab | SINO TRUK HOWO 2250mm luxurious one row and a half driver cab | |
| Engine model | WP4.6NQ220E61 220hp diesel engine | |
| Engine emission standard | Euro Ⅵ | |
| Engine power | 162KW/220hp diesel engine | |
| Engine displacement(ml) | 4580ml | |
| Feed container part | ||
| Volume | 22cbm | |
| Loading capacity | 10tons(According to the proportion( feed proportion is from 0.4tons/m3 to 0.55tons/m3) | |
| Discharging way | Hydraulic system discharging or electronic system discharging | |
| Compartments | 3 compartments with 3 different kinds feed pellets | |
| Average discharging speed（kg/min） | 500-600 kg/min or 1m3/min | |
| Full discharging time (minutes) | 20mins | |
| Rotation angle of auger when discharging | ±180 degree for left side and right side | |
| max elevation angle of auger when discharging | 70 degree | |
| Delivery distance | Horizontal max range（m） | 7.2 |
| Vertical max range（m） | 8.5 | |
| Residual rate | No more than 0.10 | |
The feed truck is also called bulk feed truck, bulk feed delivery truck, bulk feed transport truck, etc.
It is consists of truck chassis, feed tank, feed discharge auger system, electro-hydraulic operation system,etc. The tank is made by high strength steel plate and can be divided into several compartments to transport different feed. The feed trucks are mainly used to transport various kinds of granular feed for large scale plant breeding and feed mill. Meanwhile, it also can be used to transport some non-corrosive raw material for pharmaceutical factory.
The bulk feed trucks we manufacture have two type,one is with electric auger discharge system and the other is with hydraulic auger discharge system. The electric discharge system adapt the feed mill with electric power matching, the hydraulic discharge system adapt the feed mill without electric power matching. The The tank volume of our feed trucks are from 8 cubic meters to 20 cubic meters.
