Customized CLW 6*4 LHD dump tipper truck for sale
Customized Dongfeng 6*4 LHD diesel dump tipper truck, adopts dongfeng 153 LHD one row and a half driver cab, 3800+1300mm wheelbase, 5.5tons front axle/13tons rear axles, 10.00R20 rail tires*10+1, 9 speed gearbox, double-layers beam, etc.
The tipper box dimension(L*W*H): 5400x2350x1500(mm), the loading capacity of this dongfeng 6*4 LHD dump tipper truck is up to 20tons-25tons.
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
The dump truck for sale is consisted of dump truck chassis, tipping box. It is mainly used for transport sands, stone, gravels, etc.
As a dump truck supplier, in truck brand, we have many dump trucks , such as dongfeng dump truck, sinotruck dump truck, foton dump truck, forland dump truck, faw dump truck, beiben dump truck, iveco dump truck, jac dump truck, jmc dump truck, etc. In dump truck capacity, we have mini 5 cubic meters dump truck, medium 20 cubic meters dump truck, heavy 30 cubic meters dump truck . In drive type, we have 4x2 dump truck, 4x4 mini dump truck, 6x4 dump truck, 8x4 dump truck. In steering wheel, we have right hand drive dump truck, LHD dump truck.

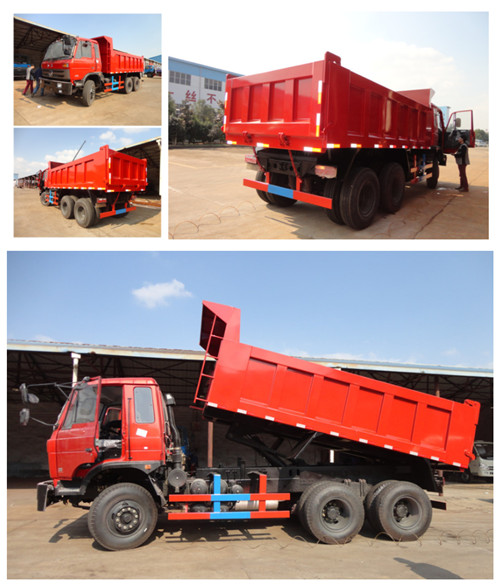

More pictures of Dongfeng 6*4 260hp diesel engine dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
Customized dongfeng 6*4 LHD 20tons dump tipper truck for Ghana for sale
The technical parameters of dongfeng 6*4 LHD 20tons dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Dump Truck |
| Drive Type | 6*4 | |
| Fact Loading Weight(kg) | 20000 | |
| Curb Weight (kg) | 9795 | |
| Overall Dimensions L*W*H(mm) | 8400×2500×3450 | |
| Engine | Engine Brand | YUCHAI |
| Fuel Type | Diesel | |
| Power | 191kw/260HP | |
| Emission Standard | Euro II | |
| Displacement(ml) | 5900 | |
| Engine Type | 6 cylinders in line, water cooling,4 stroke , inter-cooling, diesel engine | |
| Chassis | Chassis Brand | Dongfeng |
| Truck Cab | Flat roof, one row with single sleeper, tilted cab | |
| Tire No. | 10+1 | |
| Tire Specification | 10.00R20 steel tire | |
| Axle No. | 3 | |
| Wheelbase (mm) ; | 3800+1300 | |
| Steering Wheel | Left hand drive with power-assisted | |
| Gear Box | 9 speed manual gearbox | |
| Brake | Air brake | |
| Box | Box Inner Dimension(mm) | 5400x2350x1500 |
| Box Material | Carbon Steel | |
| Box Thickness(mm) | Side plate:6mm, bottom plate:8mm | |
| Discharge Type | Rear Tipping, front-installed cylinders lifting |
