Customized RHD 5T-7T dump truck dongfeng for Barbados
Dongfeng captain 2030mm single row driver cab
4*2 RHD(right hand drive)
3800mm wheelbase
YC4FA120-33 88KW/120hp diesel engine, Euro 2 emission standard,
WLY 6+1 gears, manual type
2.7T front axle/6.8T rear axle,
8.25R16 tires*6+1 spare
Air cut braking, power steering, clutch steering, 125L oil tanker, etc.
Curb mass: 4750kgs
Rated mass: 4155kgs
overall dimension(L*W*H): 6180×2350×2650(mm)
Dump tipper box dimension(L*W*H):4200×2250×600(mm)
Box material: Carbon steel, side sheet: 3mm thickness, bottom 4mm thickness
Hydraulic cylinder position: Double cylinders at the center of the truck bottom
Tipping way: rear tipping.

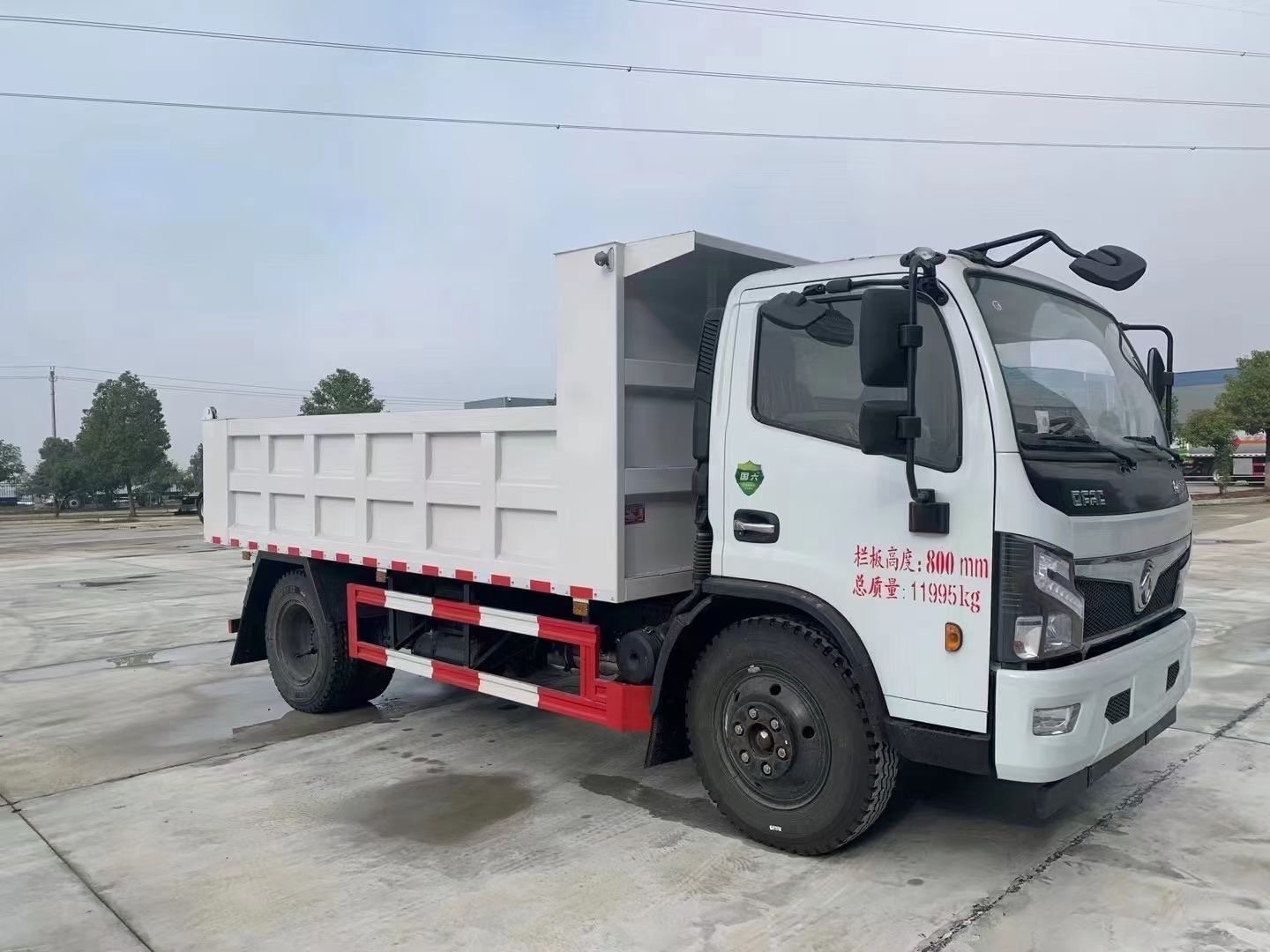

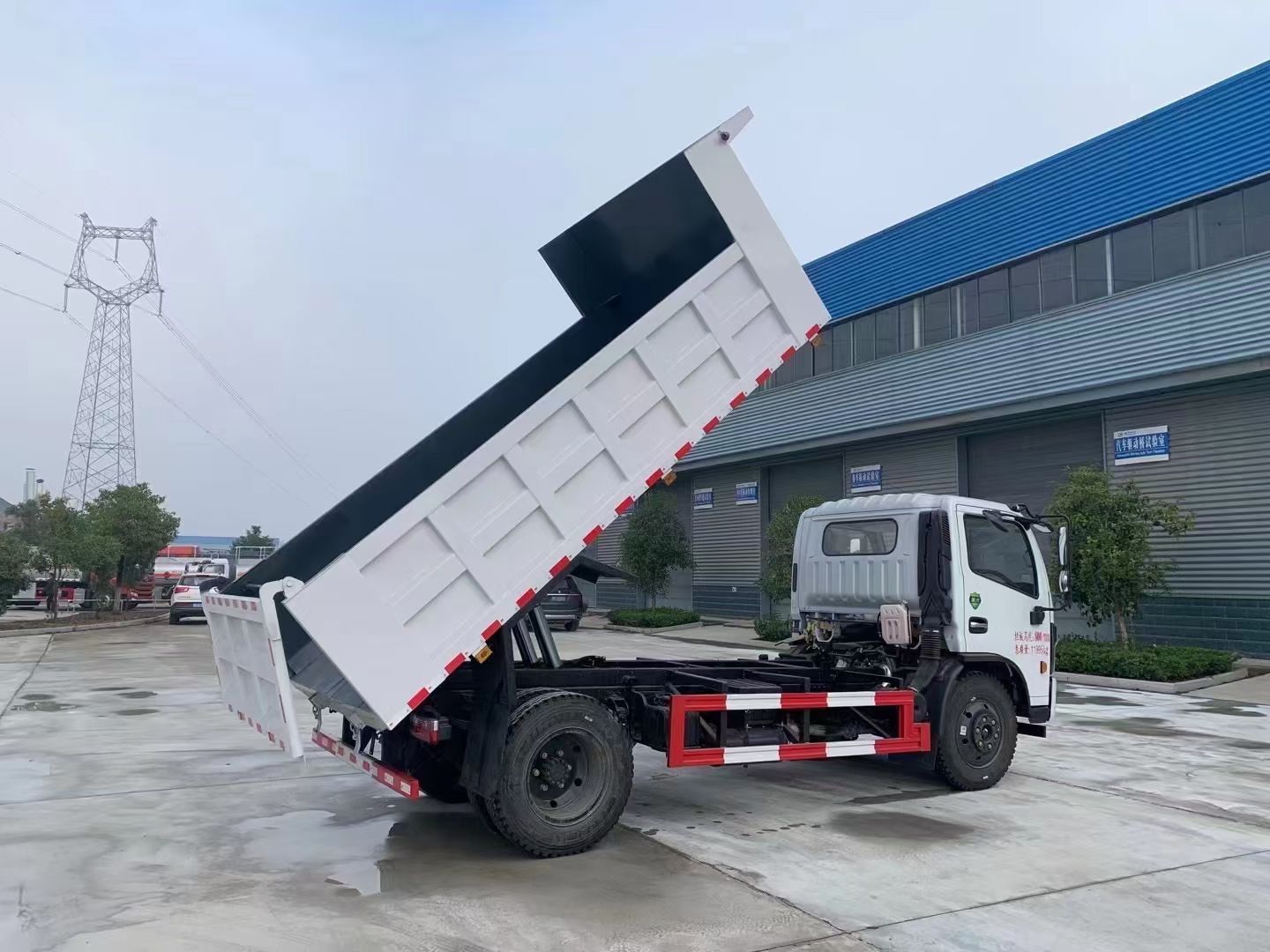

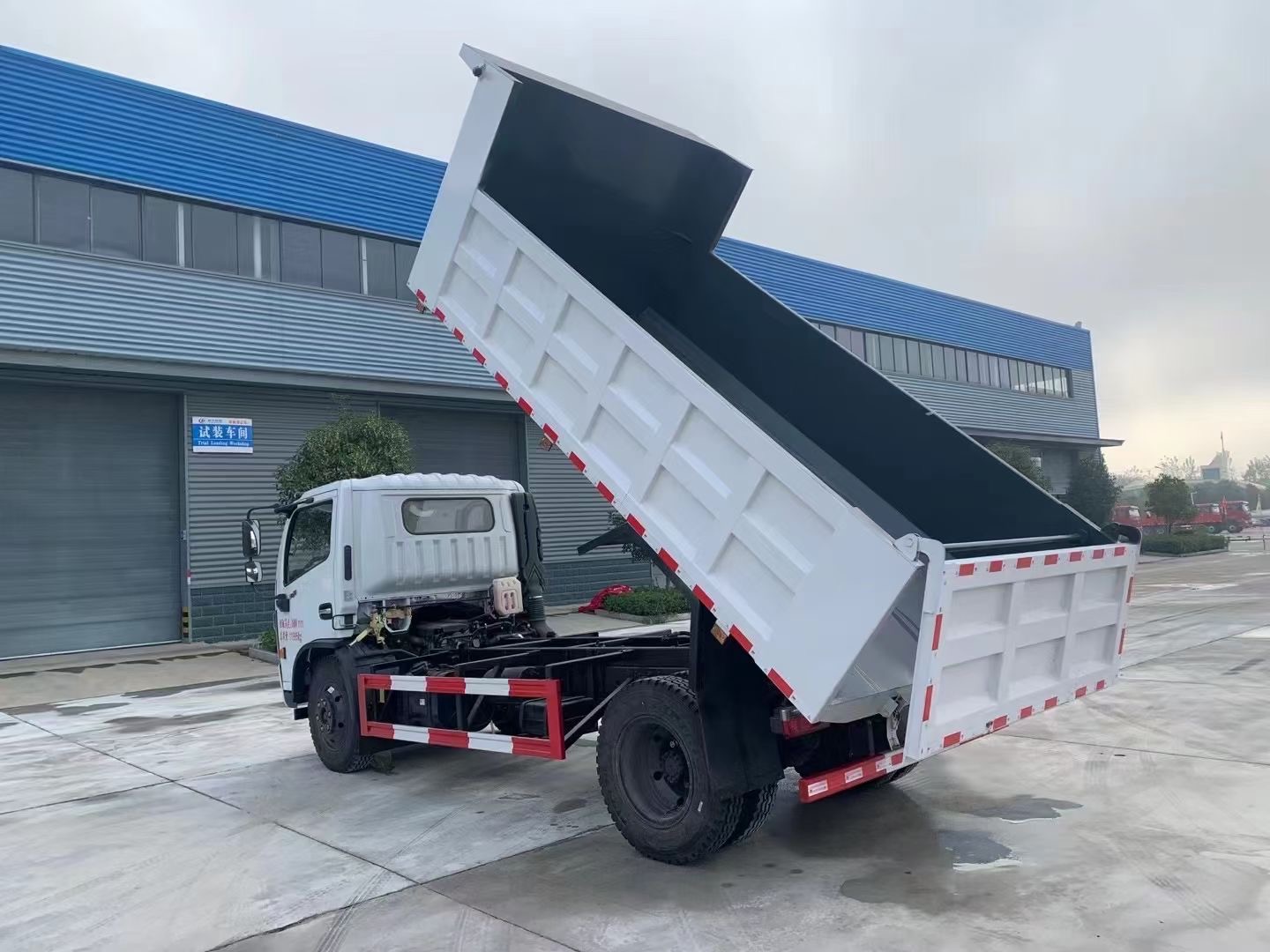

More pictures of Dongfeng RHD 5T-7T dump tipper truck are as below.
Good price! dongfeng RHD dump truck for sale
5T-7T dump truck DONGFENG RHD for sale
HOT SALE!DONGFENG RHD dump tipper truck for sale
main technical parameters of dongfeng RHD dump truck 5T-7T is as below.
| ms | Nos. | Descriptions | Specifications and Types |
| General | 1 | Truck Name | Dongfeng kaipute dump truck for sale |
| 2 | Drive Type | 4*2, RHD | |
| 3 | Loading capacity | 6720,6785 | |
| 4 | Gross Vehicle Weight(kg) | 11995 | |
| 5 | Rated weight(kgs) | 6720,6785 | |
| 6 | Curb Weight (kg) | 5080 | |
| 7 | Overall Dimensions L*W*H(mm) | 6200×2350×2580 | |
| 8 | Dump tipper box dimension(L*W*H)(mm) | 4200×2200×800 | |
| Engine | 9 | Engine Model | YC4FA120-33 |
| 10 | Fuel Type | Diesel | |
| 11 | Power | 88kw/120HP | |
| 12 | Emission Standard | Euro 3 | |
| 13 | Displacement(ml) | 2982 | |
| 14 | Engine Type | 4 cylinders in line, Vertical, in-line, four-stroke, water-cooled, electronic direct injection | |
| Chassis | 15 | Chassis Brand | Dongfeng Company |
| 16 | 4350/7645 | 4350/7645 | |
| 17 | Tire No. | 6 | |
| 18 | Tire Specification | 8.25R20*6+1 | |
| 19 | Wheelbase (mm) | 3800 | |
| 20 | Axle No. | 2 | |
| 21 | Gear Box | fastgear 8 speed manual gearbox with high-low speed | |
| 22 | Brake | Air brake | |
| 23 | Air Conditional | Yes, original air conditioner | |
| 24 | Front/rear suspension(mm) | 1260/1740,1260/1540 | |
| 25 | Leaf Spring No. | 8/10+7 | |
| 26 | Driver cab | DONGFENG KAIPUTE single row driver cab, 4*2 RHD(Right hand drive); LHD(left hand drive）is selective | |
| Tipping system | 27 | Box inner dimension(mm) | 4200/4500×2200×800 |
| 28 | Box material | Carbon steel,side 3mm,bottom 4mm | |
| 29 | Hydraulic cylinder no.(set) | 2 | |
| 30 | Hydraulic cylinder position | At the center of the truck bottom | |
| 31 | Discharge type | Rear tipping and rear door open | |
| Remark | 32 | Clients choose to install top mounted hydraulic environmental protection cover. | |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck
