HOT SALE! SHACMAN 6*4 strengthen heavy duty dump tipper truck for sale
SHACMAN brand strengthen heavy duty dump tipper truck, adopts H3000 Standard roof cabin with A/C, 3775+1400mm wheelbase, 10JSD180+QH50 gearbox, MAN 9.5T front axle/16T MAN Bipolar axles, WP10.380E22 380hp Euro Ⅱ WEICHAI diesel engine, 400L aluminum alloy oil tanker, 12.00R20 rail tires*10+1, etc.
And the overall dimension(L*W*H) of the SHACMAN 6*4 LHD dump tipper truck is 8385*3450*2300(mm)， while the dimension(L*W*H) of the tipper box is 5600/5800x2300x1500（mm）

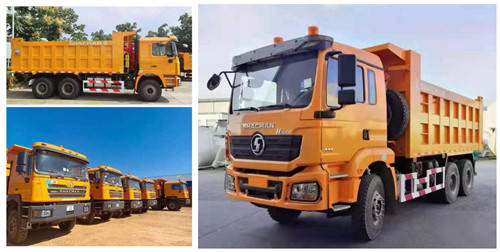

More pictures of SHACAN strengthen heavy duty dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! SHACMAN brand 6*4 LHD 380hp diesel dump tipper truck for sale
main technical parameters of SHACMAN brand 6*4 dump tipper truck for stone and coal transportation as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | SHACMAN 6*4 LHD dump truck for sale |
| Drive Type | 6*4, LHD | |
| Loading capacity | -25,000KGS | |
| Gross Vehicle Weight(kg) | 25000(Kg) | |
| Rated weight(kgs) | 12670(Kg) | |
| CurbWeight (kg) | 12200(Kg) | |
| Overall Dimensions L*W*H(mm) | 8385*3450*2300 (mm) | |
| Dump tipper box dimension(L*W*H) | 5600/5800x2300x1500（mm） (mm) | |
| Engine | Engine Model | WP10.380E22 |
| Fuel Type | Diesel | |
| Power | 280KW/380HP | |
| Emission Standard | Euro II | |
| Displacement(ml) | 9726 | |
| Chassis | Chassis Brand | SINO TRUK HOWO |
| Drive type | 6*4 LHD | |
| Front/Rear Axle Load(KG) | 7000/18000(double axles) | |
| Tire No. | 10 | |
| Tire Specification | 12.00R20 rail tires | |
| Wheelbase (mm) | 3775+1400mm | |
| Axle No. loading capacity | MAN 9.5T front axle/16T MAN Bipolar axles | |
| Gear Box | 10JSD180+QH50 gearbox gearbox, manual | |
| Brake | Air brake | |
| Air Conditional | Yes, original air conditioner, | |
| Front/rear suspension(mm) | 1525/1710(mm) | |
| Leaf Spring No. | 10/12 | |
| Driver cab | H3000 Standard roof cabin with A/C | |
| Tipping system | Box inner dimension(mm) | 5600/5800x2300x1500 (mm) |
| Box material | Q345 Carbon steel,side 6mm,bottom 8mm | |
| Dump box body shape | Rectangular box shape | |
| Hydraulic cylinder no.(set) | Single one | |
| Hydraulic cylinder position | Front installed hydraulic cylinder #180 | |
| Discharge type | Rear tipping | |
| Remark | Clients choose to install top mounted hydraulic environmental protection cover. | |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck, HOWO dump truck, ISUZU tipper truck, FAW dump tipper, North Benz dump truck, tipper trailer, etc. 4*2 dump truck, 4*4 dump truck, 6*4 tipper truck, 8*4 dump truck, etc. More information, please feel free to contact with Ms. Anita Deng.
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
