HOT SALE! CLW brand refrigerated van semitrailer for sale,
New manufactured refrigerated van semitrailer is with the model of CLW9401XLC. And the overall dimension(L*W*H) is 13500x2600x3995 (mm); while the dimension（L*W*H） of the refrigerated container semitrailer is 13300X2400X2300(mm). High quality new processed refrigerated van body is with interior and exterior of high quality glass fiber-reinforced plastic (FRP). And the middle layer is with high quality 100mm thickness PU FOAM material. One side door(left or right is ok). The floor base adopts high quality aluainum alloy air trunking. Equipped with high quality Chinamade or USA Brand CARRIER independent self-powered reefer unit(the lowest temperature is up to -15 ℃).
The driving part of this CLW brand refrigerated container semitrailer is as below.
1, 13TONS FUWA axles*3,
2, 12R22.5 tires*12,
3, 28T outriggers.

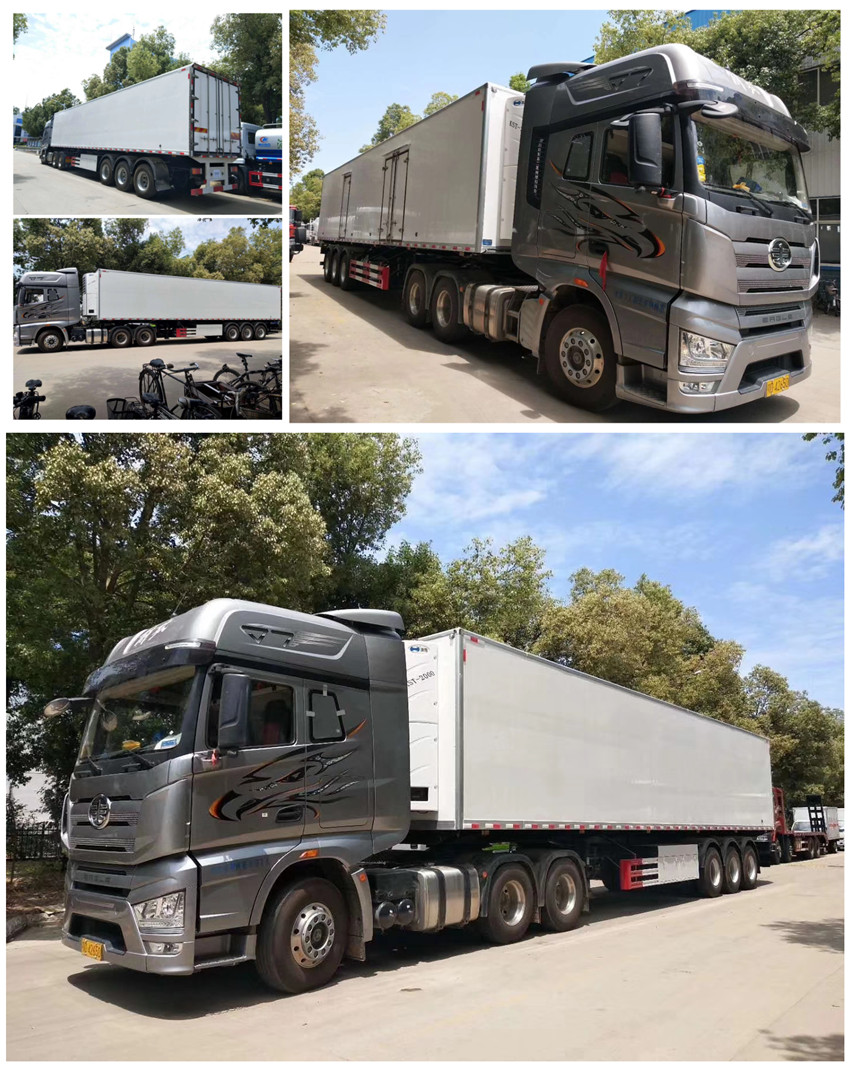

More pictures of CLW brand 13.3m length refrigerated van semitrailer manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! New designed refrigerated container semitrailer for sale
Main technical parameters of CLW brand 13.3m refrigerated container semitrailer manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Main technical parameters | |||
| Product name | CLW9401XLC refrigerated container semitrailer for sale | ||
| Total mass(Kg) | 40000 | Overall dimension(L*W*H)(mm) | 13500×2600×3995 |
| Rated mass(Kg) | 29600 | Van dimension (L*W*H)(mm) | 13000×2400×2300 |
| Curb mass(Kg) | 10400 | Wheelbase(mm) | 7350+1310+1310 |
| Approach/departure angle(°) | -/12 | Tire specification | 12R22.5 12PR*12 |
| Steel spring | -/8/8/8 | Tires nos. | 12 |
| Axle load(Kg) | -/24000(triples axles) | Axle nos. | 3 |
| Front tread(mm) | - | Rear tread(mm) | 1840/1840/1840 |
