HOT SALE! new-designed railway dust suppression truck for sale
HOT SALE! railway dust suppression vehicle adopts fully intelligent electronic control operation, vehicle spray system, mixing function, and rotating arm function. The heating function bicycle flow meter and other functions except the chassis and water tank self-priming and self-discharging are all powered by the on-board auxiliary generator set, and the power distribution box reserves an external power connector set.

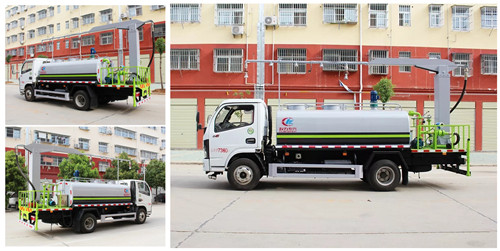

More pictures of Dongfeng 8cbm railway dust suppression vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
HOT SALE! Dongfeng 8cbm railway dust suppression vehicle for sale
The spraying system is equipped with a single-vehicle flowmeter(used to measure the amount of dust suppression sprayed on each train skin.) and can be displayed on the main-machine interface in the cab. It can view the spraying flow rate of each train and each cargo box in real time, and the data sheet can be printed out. The spraying system is equiped with a hook stop spraying system(contact induction spraying, spray stop betweeen twp train skins) and has the hook stop spray function on the left and right sides, which can achieve uniform spraying on the surface of the coal seam during spraying ,suitable for different models. No spilling phenomenon, spraying ar, with vehicle number recognition and recording function.( The whoile vehicle spraying system, bicycle flow meter and vehicle number recognition and recording functions are all connected and reflected on the smart(computer screen).
Main technical parameters of Dongfeng 8cbm railway dust suppression vehicle manufactured by Chengli Special Automobile Co., Ltd. is as below.
Dongfeng 8 cubic meter sprinkler Main technical parameters of the product |
Product name | Dongfeng 8 cubic meter sprinkler
(CL5126TDYE6) | outline dimension(mm) | 7350×2360×3400(mm) |
Chassis Model | EQ1110SJ8BDC |
|
|
Front passenger | 2 | Number of passengers | 3 |
Total mass(kg) | 11995 | Approach angle/Angle of departure(°) | 21°/14° |
MAX GROSS MASS(kg) | 6000 | front suspension/ear suspension(mm) | 1030/2420 |
curb weight(kg) | 5800 | Maximum speed(km/h) | 103 |
Emission standard | Euro 3 |
|
|
Vehicle introduction | 1. optional cab front face mask and front fog lamp with chassis. 2. effective volume of tank body: 4.06m³, external dimensions of tank body (long×Long axis×minor axis ( mm ): 3400 x 1600 x 1100, only 3308 wheelbase is selected. 3. the side protection and rear
lower protection devices are made of Q235A material and are all connected by welding. the rear lower protection size is 50× 120 (mm ) and 470 mm high from the ground. 4. optional installation of new appearance and pipeline as to the lower part of the platform. 5. optional side protection and rear lower protection devices are made of Q235B carbon steel and bolted together. rear lower protection size: 50× 120 ( mm ), 450 mm above the ground. 6. the position of the text spray pattern, vehicle color and local details can be changed. 7. ABS manufacturer and model: Xiangyang Dongfeng longcheng machinery co., ltd. / ABS / ASR - 24V- 4S /
4M; 8. the optional special device for front impact is located between the cab and the tank body. 9. special device: tank body, mainly used for watering and landscaping. |
Dongfeng 8 cubic meter sprinkler chassis parameters |
Chassis Model | EQ1070SJ3BDF | Fuel type | diesel oil |
number of axles |
|
|
|
