HOT SALE!SHACMAN X9 garbage compactor truck 7cbm Cummins engine for sale
Customized one unit of SHACMAN X9 garbage compactor truck for client from South America.
Garbage compactor trucks are used for collecting household wastes, compacted of sealed garbage van body, loader, push shovel, hydraulic system and electric system, etc. The whole vehicle is fully seale3d, adopts electro-hydraulic integration technology, realizing wastes-poured, wastes-crushed or wastes-squashed, forcefully lifted and filled, pushed into the van and compacted and pushed away by the garbage van, loader and push-shovel, etc. The wastes water is into the sewer tanker during compaction, solving the second-pollution during wastes transportation.
Shacman X9 garbage compactor truck 4*2 LHD 7cbm
1, shacman X9 1995 cab with bed with electric doors and windows and air conditioner,
4*2 LHD,
3400mm wheelbase
ISF3.8S3 141 103KW/141hp/3760ml Cummins engine, Euro 2 emission standard
8JS85F-C FAST 8+1 gears, manual type
3.2t front axle/9T rear axle
130L steel oil tanker,
8.25R20/16PR*6+1 spare
The volume of the garbage compactor truck is 7cubic meters.
More pictures of SHACMAN brand garbage compactor truck are as below.

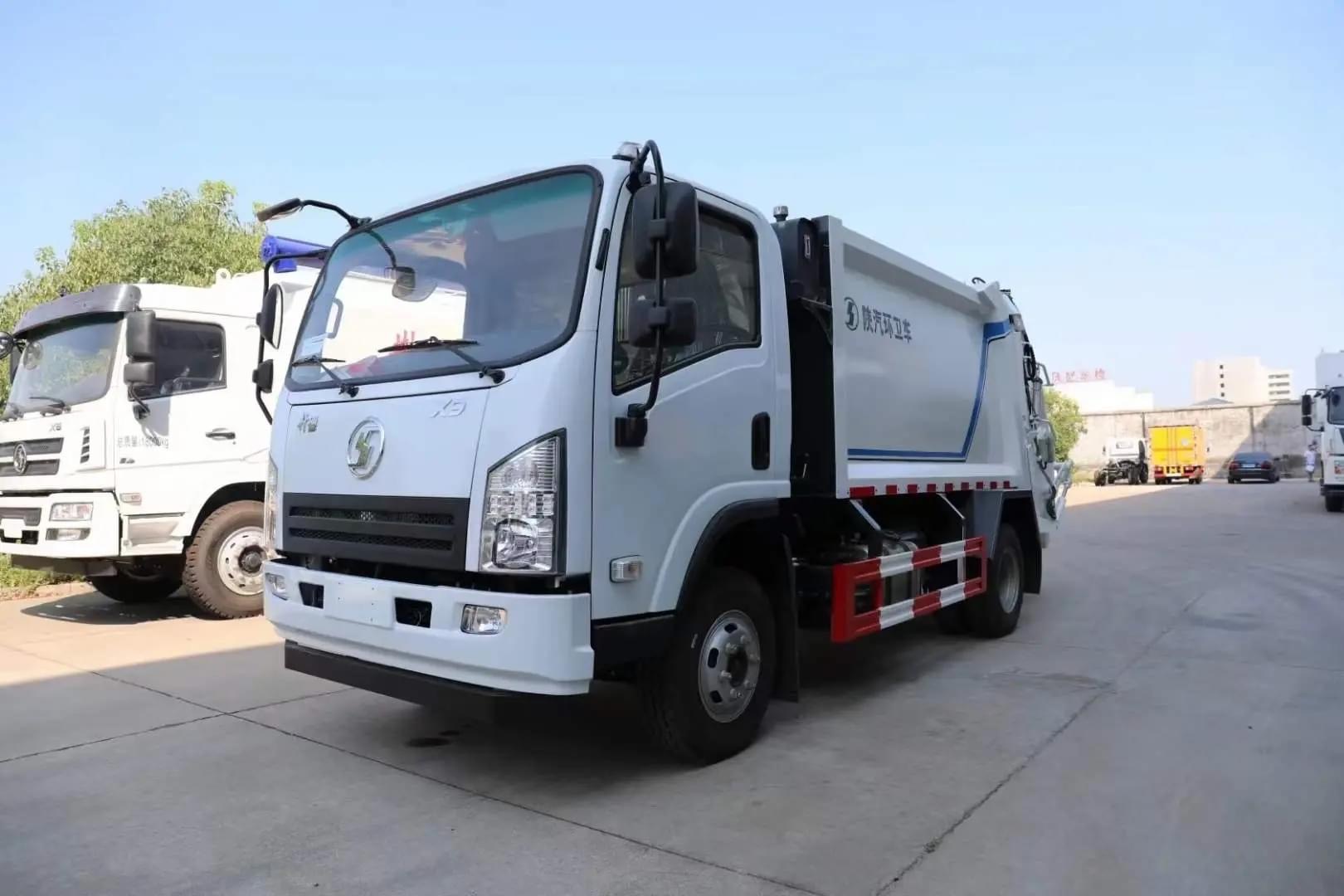

SHACMAN brand X9 garbage compactor truck for sale
Best selling SHACMAN brand garbage compacted truck for sale
Main technical parameters of SHACAMN compacted garbage truck is as below.
1 | Product name | Shacman garbage compactor truck for sale |
| 2 | Truck chassis model | sx |
| 3 | Overall dimension(L*W*H)(mm) | 7300*2250*2750 |
| 4 | Curb mass(kgs) | 6569 |
| 5 | Volume(m3) | 7 |
| 6 | Wheelbase | 3400mm |
| 7 | Axle nos. | 2 |
| 8 | Driver cab | SHACMAN X9 1995mm width cab with bed |
| 9 | Tires specification | 8.25R20/16PR*6+1 spare |
| 10 | Steel Spring | Yes |
| 11 | Engine model | ISF3.8S3 |
| 12 | Rated power | 103KW/141hp |
| 13 | Displacement(ml) | 3760 |
| 14 | Fuel type | Diesel |
| 15 | Emission standard | Euro 2 |
| 16 | Gearbox | FAST 8+1 gears, manual type |
| 17 | Color | Different color upon request |
| 18 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 19 | Wastes van material | High quality China standard light duty steel |
| 20 | Operation way | PLC control way |
| 21 | Loading and discharging way | Rear overturning mechanism |
| 22 | Compacted way | Bi-directional compression |
| 23 | Wastes compacting density | ≥0.8tons/m3 |
| 24 | One working circle time for loading and discharging | ≤30s |
| 25 | Max compressing force | ≥150KN |
| 26 | Max passing force | ≥180KN |
