2 units of 16cubic meters dongfeng D9 garbage compactor trucks for Central Asia

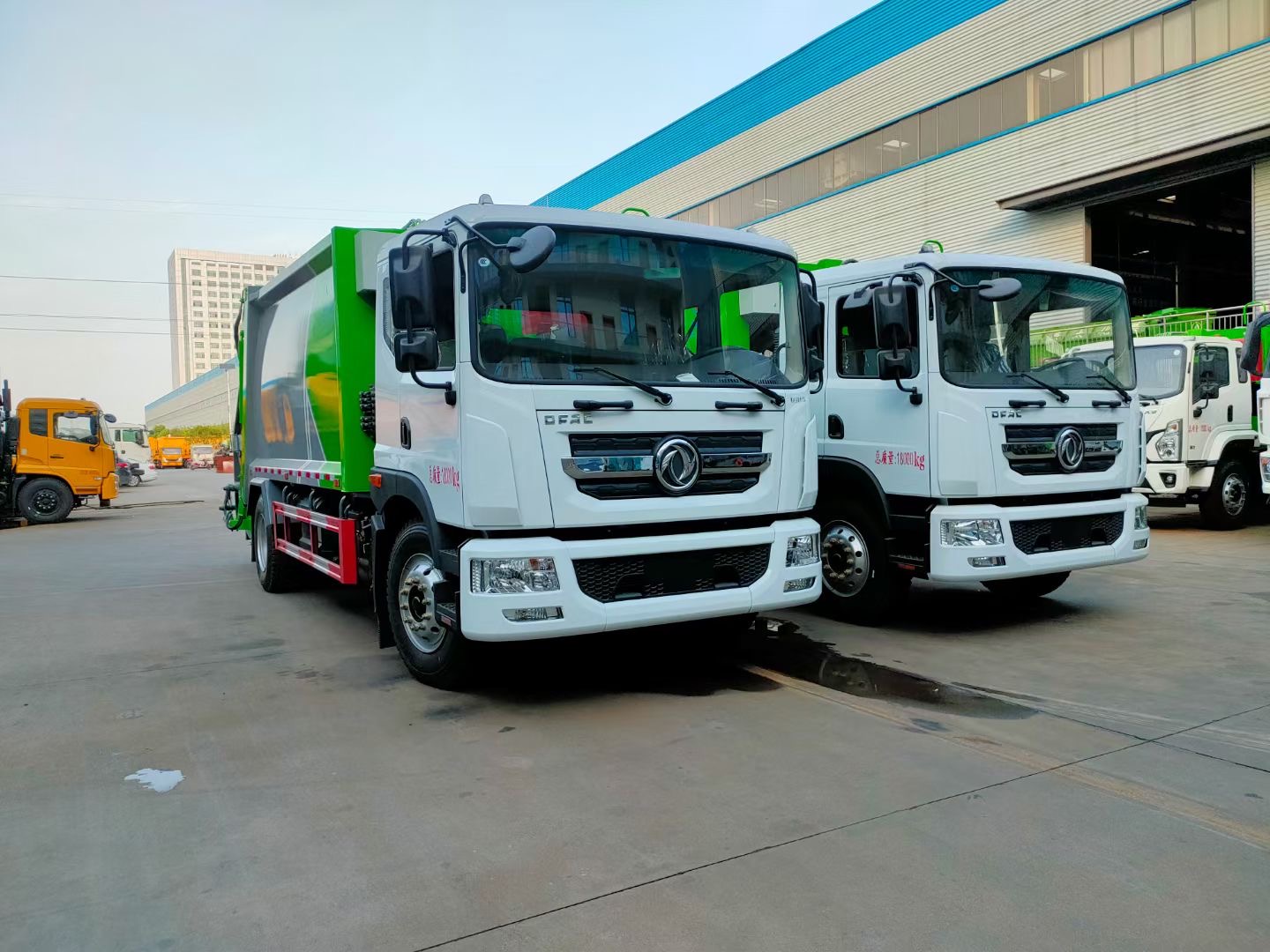

Recently, two units of 16cubic meters dongfeng D9 4*2 LHD garbage compactor trucks are finished, customized for client from Central Asia.
Customized Dongfeng D9 16cbm garbage compactor truck adopts dongfeng D9 luxurious driver cab,4700mm wheelbase, ISB210 50 210hp Euro 5 diesel engine, 10.00R20 rail tires, fastgear 8 speed gearbox,250mm double layers boom, etc.
And the volume of dongfeng D9 garbage compactor truck is 16cbm. The waste compression truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
More pictures of dongfeng D9 compacted garbage truck is as below.
HOT SALE!DONGFENG D9 compacted garbage truck for sale
16cbm compacted garbage trucks for sale
Main technical parameters of dongfeng D9 16cbm garbage compression truck is as below.
| 1 | Truck model | Dongfeng D9 new dongfeng brand 4*2 LHD 16CBM garbage compactor truck for sale |
| 2 | Truck chassis model | EQ |
| 3 | Engine model | ISB210 50 |
| 4 | Engine power/displacement | 155KW/5900ml |
| 5 | Engine model | 6 cylinders in line, inter-cooling diesel engine |
| 6 | Engine brand | Cummins |
| 7 | Engine emission standard | Euro Ⅳ |
| 8 | Oil consumption(L/100km) | 18L |
| 9 | Max speed | 90kw/h |
| 10 | mini turning diameter | 18m |
| 11 | Max Gradability | 25﹪ |
| 12 | Truck wheelbase | 4500（mm） |
| 13 | Wastes van volume | 12m3 |
| 14 | Fuel type | Diesel |
| 15 | Wastes hopper lifting angle | ≥45° |
| 16 | Loading and discharging way | Overturning hopper/wastes bins mechanism |
| 17 | compacting way | Bi-directional compression; wastes compacting density≥0.8T/m³ |
| 18 | one working circle time for loading (s) | ≤22 |
| 19 | one working circle time for discharging (s) | ≤30 |
| 20 | Overall dimension(L*W*H) (mm) | 8650×2500×3250(mm) |
| 21 | max compressing force | ≥150KN, |
| 22 | max compressing force | ≥180KN |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
