Good quality SHACMAN X3000 tractor head with 30cbm dump tipper semitrailer for Nicaragua
the main technical parameters of SHACMAN tractor head with tipper semitrailer 30cbm is as below.
Triple axles dump tipper semitrailer for sale
Tipper box dimension(L*W*H): 8500*2400*1500(mm),
Steel plate model: 700L/Q345; 10mm thickness bottom plate and 8mm thickness side plate; 4 longitudinal girders.
Hydraulic cylinder: 202# cylinder
Under-frame: crosss-beam upper-wing plate thickness: 14mm; under-wing plate thickness: 16mm; middle-wing plate thickness: 12mm; triple FUWA axles, 12R122.5*12+2 spare tires, 6 air reservoirs,etc.
approximate overall dimension(L*W*H): 10000*2550*3800mm
| Model | SHACMAN X3000 tractor head |
| Wheelbase(mm) | 3175+1400 |
| Engine model | ISME 420 30 306KW/420/10800ml displacement/6 cylinders diesel Euro 3 |
| Overall dimension(L*W*H)mm | 6825*2550*3210/3900 |
| Front/rear suspension(mm) | 1525/725 |
| Tractor pin | 90# common saddle |
| Tractor saddle mounting panel type | Flat panel |
| Approach/departure angle(°) | 20/55 |
| Front/rear turning radius (R1/R2) (mm) | 2650/2200 |
| Saddle front pitch (mm) | 300 |
| Saddle ground height (no load)(mm) | 1395±20 |
| Mini turn radius(mm) | 6950 |
| Mini ground clearance(mm) | 245 |
| Curb mass(kgs) | 9468 |
| Chassis width (mm) | 850 |
| longitudinal beam section size | 300×80×(8+5) |
| F/R springs number | 10/12 |
| Tires | 12.00R20 |

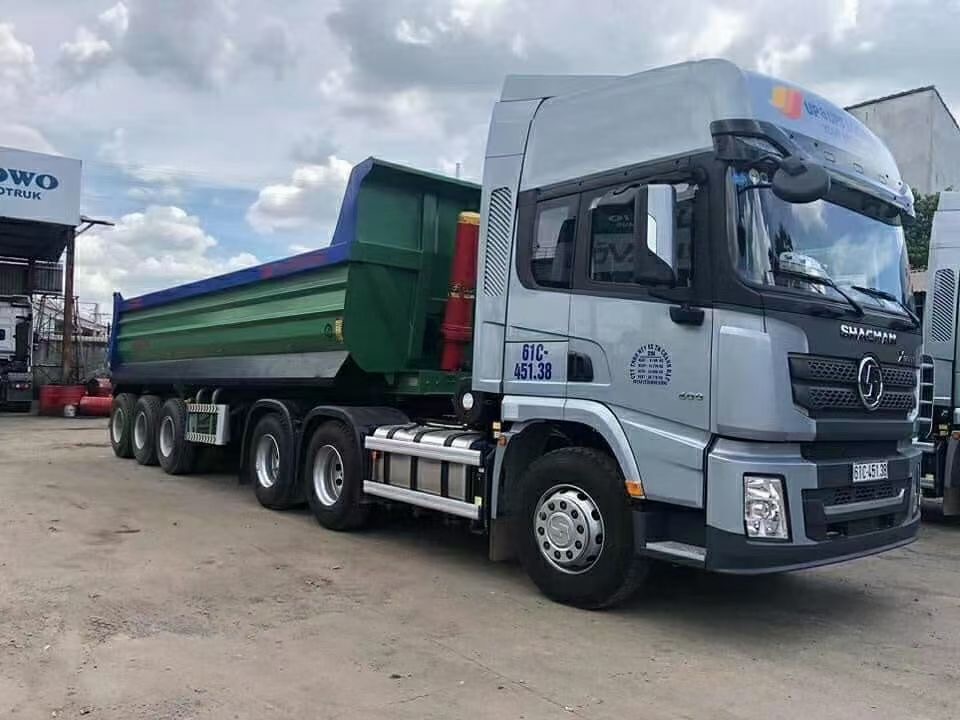

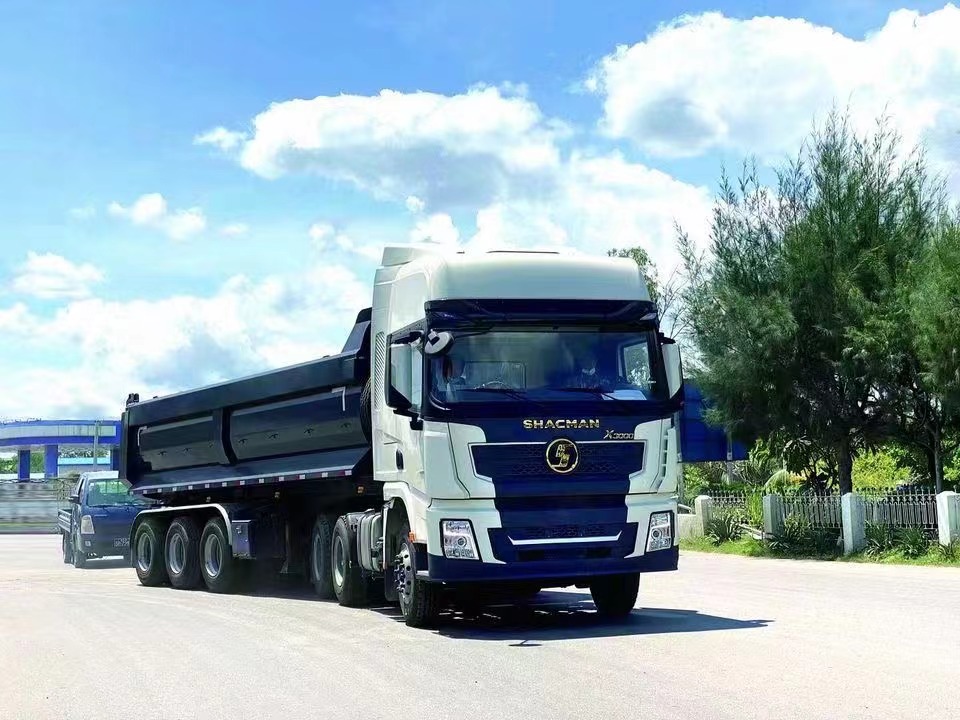

more pictures of SHACMAN tractor head with 30cbm dump tipper semitrailer are as below.
shacman 6*4 tractor head with 3 axles 30cbm dump tipper semitrailer for sale
high quality SHACMAN tractor head with tipper box semitrailer for sale
