HOT SALE! ISUZU brand 18m telescopic overhead working platform truck for overseas
One unit of ISUZU brand 18m telescopic aerial working platform customized for overseas client is finished, ready for shipping to Shanghai seaport. Loo

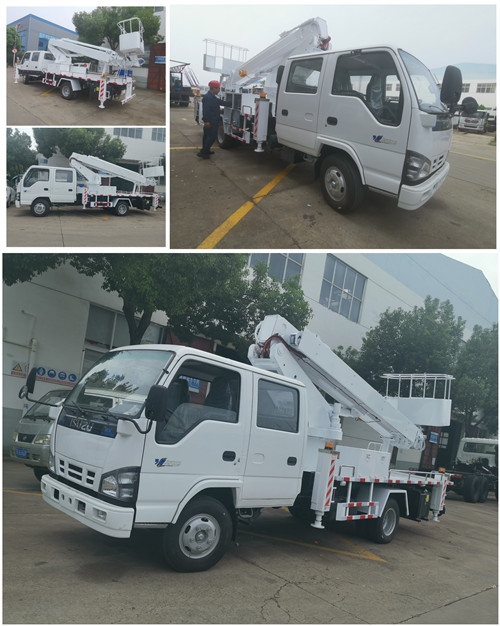

Customized ISUZU brand 18m telescopic aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd. as below.
HOT SALE! ISUZU brand 18m telescopic high altitude operation truck for sale
Main technical parameters of ISUZU 4*2 LHD 18m telescopic aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd.
| Main technical parameters |
| classification | Item | Unit | Parameters |
| Overall dimension | ★Length | mm | 5998 |
| ★Width | mm | 2000 |
| ★Height | mm | 2950 |
| Mass | Seated person（driver cab included） | person | 2 |
| ★total mass | kg | 4495 |
| Main devices | Rated loading capacity of the working platform | kg | 200 |
| m | 17.5 |
- Working range at the max working height
| m | 5.0 |
| m | 10.5 |
- Working height at the max working range
| m | 5 |
| Outrigger span ★ | horizontal | mm | 4000 |
| longitudinal | mm | 4000 |
| Driving parameters | ★front suspension | mm | 1075 |
| ★rear suspension | mm | 1563 |
| ★wheelbase | mm | 3360 |
| Max driving speed | Km/h | 100 |
| Approach angle | ° | 20 |
| Departure angle | ° | 14 |
| Part Name | Brief explanation |
| Truck chassis | QL10603HARY |
| Engine | Diesel engine, max rated power 98hp Euro 4 |
| Driver cab | Single cab with air conditioner and 2 seats |
| Coaming and platform | Stainless steel coaming and non-slip walking platform |
| Force-taking system | Mechanical operation |
| Working platform | （1200）1200x700x1150 |
| Boom type | - 3sections Pentagonal type working boom, synchronous telescoping
|
| Rotating system | 360°Continuous rotation |
| Outriggers | - Front V type& rear H type; individually adjustable
|
| Operatgion | ★ working platform & Electrical operation of ground remote control |
| Control system | Electro-hydraulic proportional control system， Electro-hydraulic proportional control system |
| Leveling system | Automatic hydraulic leveling |
Basic Functions and security configuration
| Basic Functions and security configuration: the rated loading capacity of the working platform is 200kgs; max working height is 17.5m; max working range is 10.5m. |
| Name | Brief explanation |
| Automatic interlock device for loading and unloading vehicles | ★It is used for interlock on and off vehicles to prevent disoperation and danger |
| hanging flower basket | High Strength Aluminum Alloy 360° rotating |
| Level detection function | ★Real-time detection of the vehicle level |
| Emergency Electric Emergency pump | When the engine and main pump failure, the staff can be sent back to the ground |
| Emergency Stop Device | For Emergency Stop Operations |
| Night safety warning device | In the vehicle there are engineering strobe lights, lighting lights |
| Horizontal State Tester for whole vehicle | The utility model can detect the lateral and longitudinal inclining state of the whole vehicle |
| Engine ignition off | In the turntable and platform for the engine ignition, flameout control |
| Real-time communication | There's a walkie-talkie on the deck and off the train |
