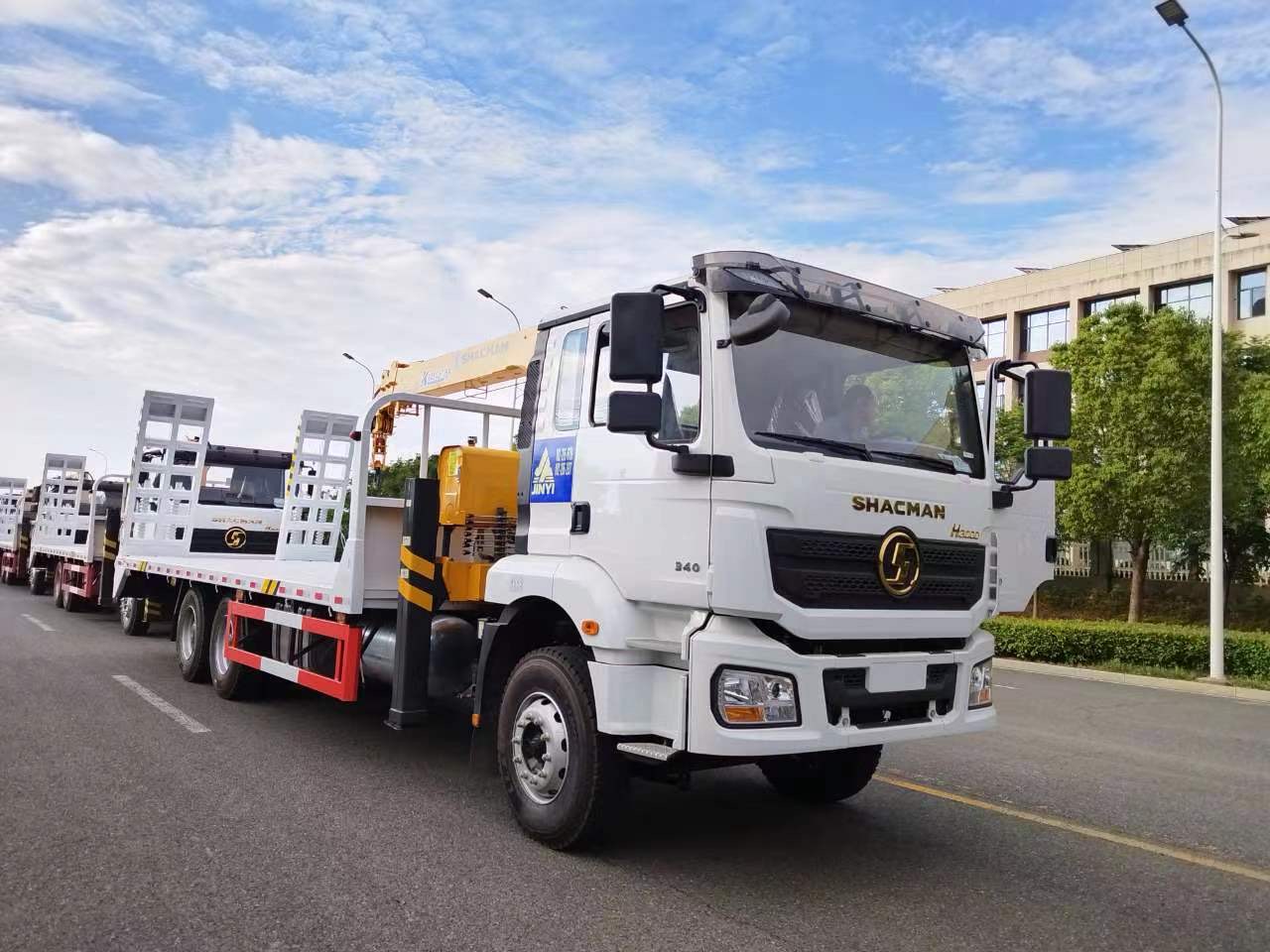

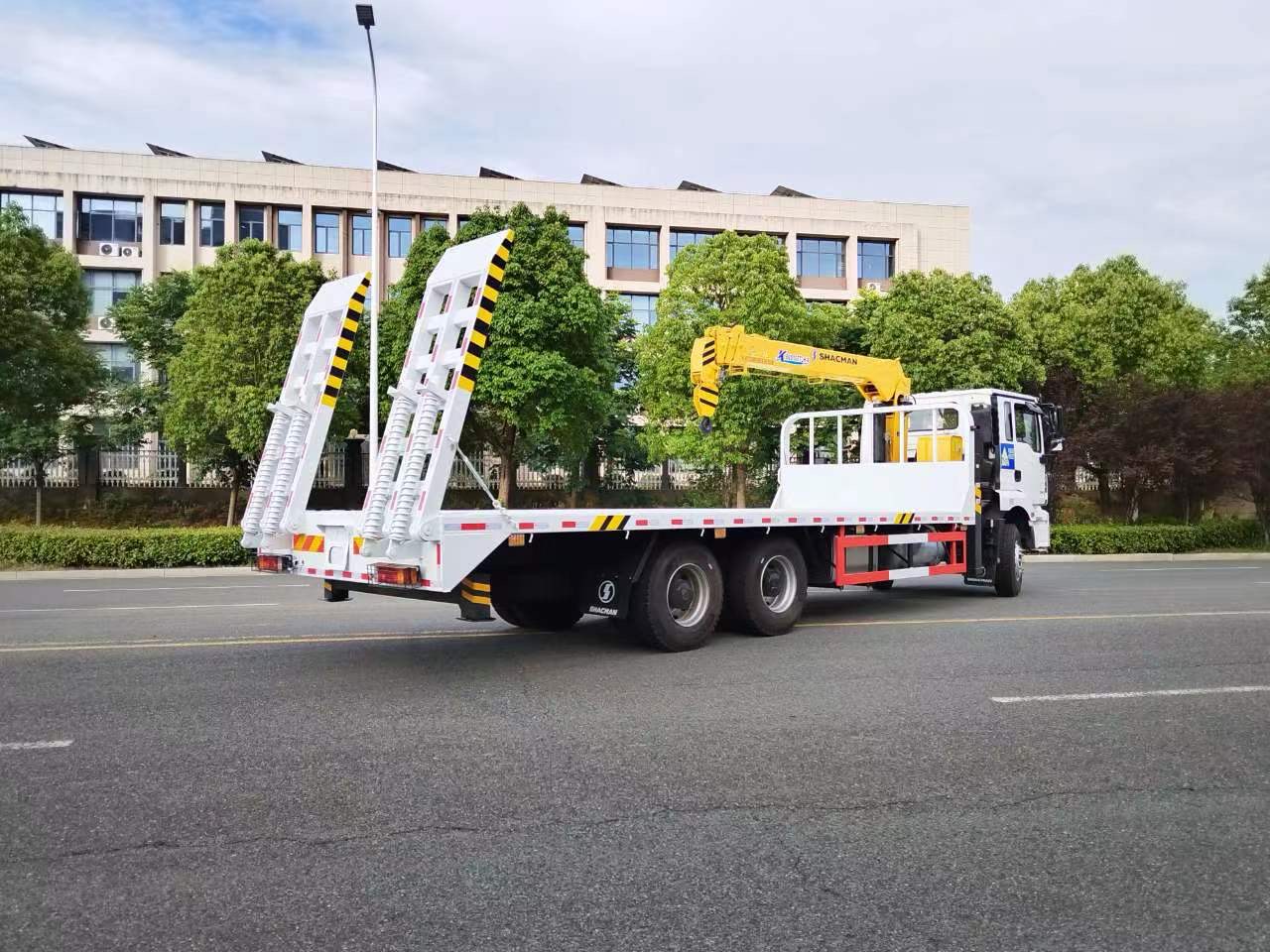

HOT SALE! SHACMAN brand 6*4 LHD 12T flatbed truck with telescopic crane boom for Algeria
HOT SALE! SHACMAN brand flatbed truck with crane for sale

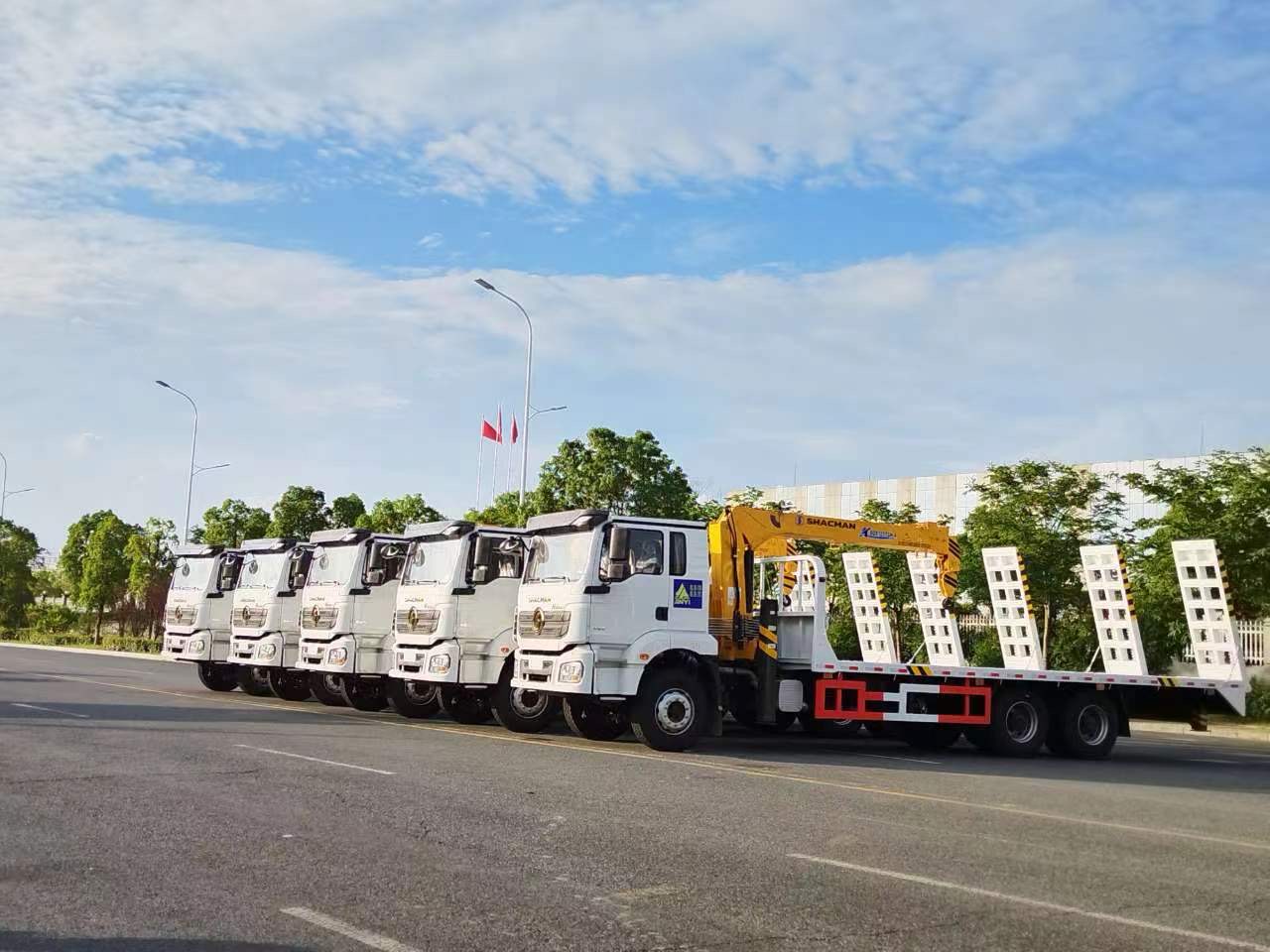

5 UNITS of SHACMAN brand truck with crane for Africa
Main technical parameters of SHACMAN brand Flatbed truck with crane boom is as below.
Product name | SHACMAN brand 6*4 LHD 12tons telescopic crane boom mounted on flatbed truck for sale | |
| Chassis type | SX1255 | |
| Parameters | Overall dimension length/width/height (mm) | 11750×2600×3900 |
| Cargo body dimension (L*W*H)(mm) | 7800×2450 | |
| GVW(kg) | 25000 | |
| curb Mass(kg) | 13000 | |
| Rated mass(kg) | 11870 | |
| Approach angle/ Departure angle(°) | 16/11 | |
| Front suspension/rear suspension(mm) | 1525/3250 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | WP10.340E22 |
| Displacement/Power(kw) | 9726ml/250KW/340hp | |
| Manufacturer | WEICHAI | |
| Chassis | Drive Type | 6*4 LHD |
| Wheelbase(mm) | 5775+1400mm | |
| Tread(front/rear) | 2036, 1860/1860 (mm) | |
| Transmission | RTD-11509C FAST 9+1 gears, manual type | |
| Cab | SHACMAN F3000 luxurious driver cab | |
| Truck frame (mm) | 850×300（8+5+8） | |
| Suspension | Front and rear multiple leaf-springs,four main springs+four U-type bolts. | |
| Front/rear axles | MAN 7.5T/MAN 16T double rear axles 4.769(speed ratio) | |
| Oil tanker | 300L aluminum alloy oil tanker | |
| Tire Type | 12.00R20*10+1 spare | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 7800x2450 |
| Loading capacity (kgs) | 20000 | |
| Flatbed thickness | 8mm thickness floor and 6mm thickness cross beam square tube | |
| Rear ladders | Spring ladders*2 | |
| Winch | 20Tons hydraulic winch | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install high quality XCMG brand 12T telescopic 4 sections crane boom(SQZ300 model) | |
| Lifting height | 12m | |
| Working radius | 9.7m | |
| Mass | 4130kgs | |
| Rotation | 360 °full rotation | |
| Remark | Single Chamber hydraulic rear outriggers should be installed | |
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
