High quality 3tons dongfeng dollicar refrigerated truck for sale
DONGFENG Dollicar 1730mm single row driver cab
4*2 LHD, RHD optional
3300mm wheelbase
YC4FA120 33 yuchai 120hp diesel engine, Euro 2 emission standard
5+1 gears, manual type
7.00R16 tires*6+1 spare
80L oil tanker, air cut braking, power steering, clutch steering, etc.
The refrigerated van body dimension(L*W*H): 4050×2100×1900(mm)
Overall dimension(L*W*H): 5995×2210×3080(mm)
the interior and exterior can be chosen the popular glass steelmaterial, or stainless steel, aluminum alloy material, and the insulation van with strengthen, etc. the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 8mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
If installed the meat hangers, the whole refrigerated van should be fastened. And the meat hangers are with double sides to hold one pig.
The cooling unit adopts high quality Chinamade cooling unit. And the temperature can be adjusted in the driver cab, and the van temperature can reach 18 degree below zero.

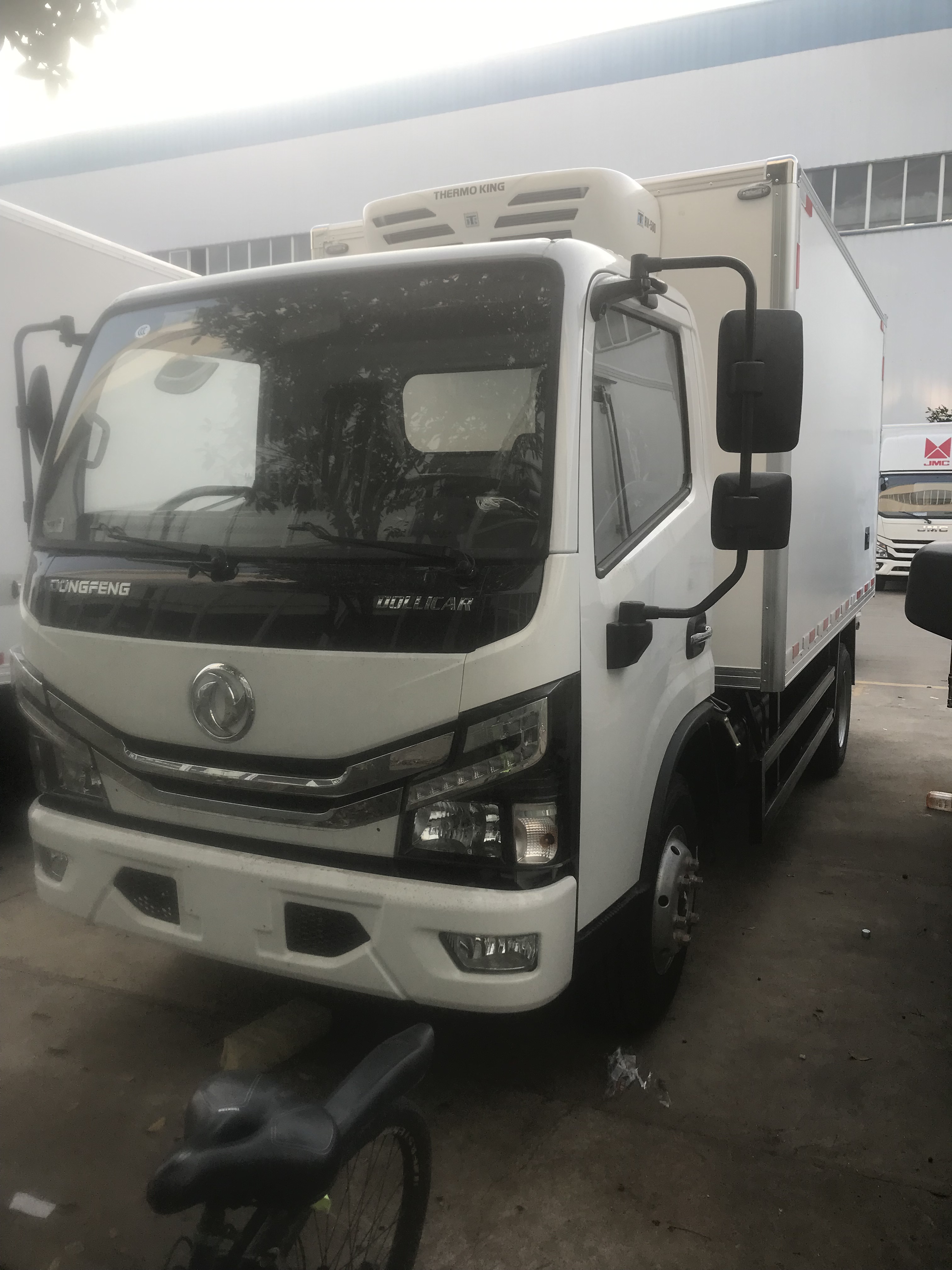

More pictures of 3T dongfeng dollicar refrigerated truck is as below.
High quality and best price 3Tons dongfeng dollicar refrigerated truck for sale
Main technical parameters of 3T dongfeng refrigerated truck manufactured by Chengli Automobile Co., Ltd. is as below.
ItemsDescriptionsSpecifications and Types
General Truck Name Dongfeng refrigerated truck for sale
Drive Type 4*2 LHD,
Real loading capacity (kg)3,000-4,000kgs
Seating person2-3
Curb Weight (kg) 3200
Overall Dimensions (L*W*H) (mm)5995×2210×3080
Insulation van dimension(L*W*H)(mm)4050×2100×1900
Cold room volume15-17cubic meters
Driver cabDongfeng dollicar single row driver cab
EngineEngine Model YC4FA120 33
Engine Brand Yuchai
Fuel Type Diesel
Max output (hp/rpm)88hp/1200KW
Emission Standard Euro Ⅲ
Capacity (cc) 2982
Engine type4 cylinders, inter-cooling diesel engine
Chassis Chassis BrandDongfeng
Tire Specification 7.00R16
Wheelbase (mm) 3300
Axle No. 2
Steering WheelLeft hand drive, RHD is optional
Gear Box 5 speed gearbox, manual
Brake Air brake
Air-conditionerNo, can be installed
Cold RoomBox inner dimension(mm)4050×2100×1900 (mm)
Box SideExterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.
Box FloorBaseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard.
DoorsFrame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.
The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability.
Door edgings, door locks and accessories use stainless steel materials.
Cooling unitHuatai brand F450 frozen cooling unitFamous China-made Huatai brand F450 frozen dependent cooling unit, the temperature can be adjusted from zero degree to 18 degree below zero, etc. And the cooling unit can be adjusted at the driver cab.
RemarkThe refrigerated truck can choose to install meat hangers, vent-slots, etc. and side doors.
We are a professional manufacturer of aerial platform trucks in china, and we can provide our customers various configuration trucks with different prices. Aerial platform truck is ideal for maintenance of traffic lights, street lights, landscaping trees, clearing of high window and other high aerial works.
Working height : 6m,8m,10m,12m,14m,16m,18m,20m,22m,24m. More information, please feel free to contact Ms. Anita Deng. The hot sale line is 0086 13329899995.
