HOWO 4*2 LHD 16-meter high-altitude operating vehicle adopts a folding crank arm structure, the operating arm is three-section folding, the working bucket and the turntable have double working positions, up and down operation, electro-hydraulic control, 360-degree rotation, four hydraulic outriggers, inside the working bucket It can control the start and stop of the engine, the boom has a hoisting hook system, the hook lifting weight is ≤900kg, the manned working bucket is 200kg, the steel tool box and the pattern anti-skid platform, and the stainless steel fence.
The chassis hydraulic outrigger balance system is equipped with a two-way hydraulic lock as standard, the working arm cylinder is equipped with a two-way balance valve as standard, and the working arm balance structure is an external balance lever.
The main components of Chengli aerial vehicle hydraulic cylinders, hydraulic tubing, hydraulic locks, balance valves, gear pumps, power take-offs, multi-way valves, etc., all adopt well-known domestic brands. The hydraulic system of the vehicle has stable reversing and flexible and convenient operation; The working arms are interlocked, safe and reliable, to prevent misoperation; H-shaped outriggers have a large span and good stability. The outriggers can be independently retractable and linked. The rear outriggers are equipped with outriggers and flashing lights for operation. When the outrigger is profiled, it sends out a light alarm signal.
The technical advantages of the truck mounted aerial working platform truck is as below.
1. The working bucket adopts mechanical self-balancing design, and its function is that the working bucket is always in a balanced state when working.
2. The rear outriggers of the vehicle are equipped with warning outline lights to improve the safety of warnings during vehicle operation.
3. The upper and lower operating systems can complete various operations on the working bucket and on the turntable.
4. The working bucket is equipped with night operation lights to make night operation safer.
5. The outriggers are individually adjustable. Each outrigger can be adjusted separately according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state.
6. The outrigger adopts front and rear H-shaped structure, which has larger bearing surface and higher stability.
7. The hydraulic system is equipped with a hydraulic locking system, whose function is to lock the cylinder in place after reaching the required position to prevent accidents.

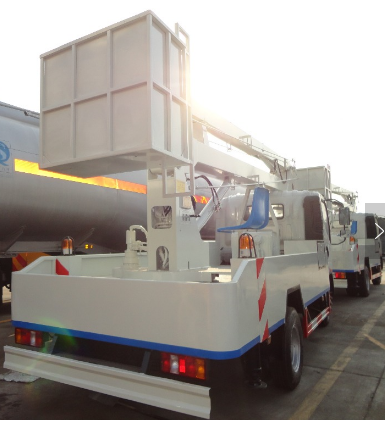

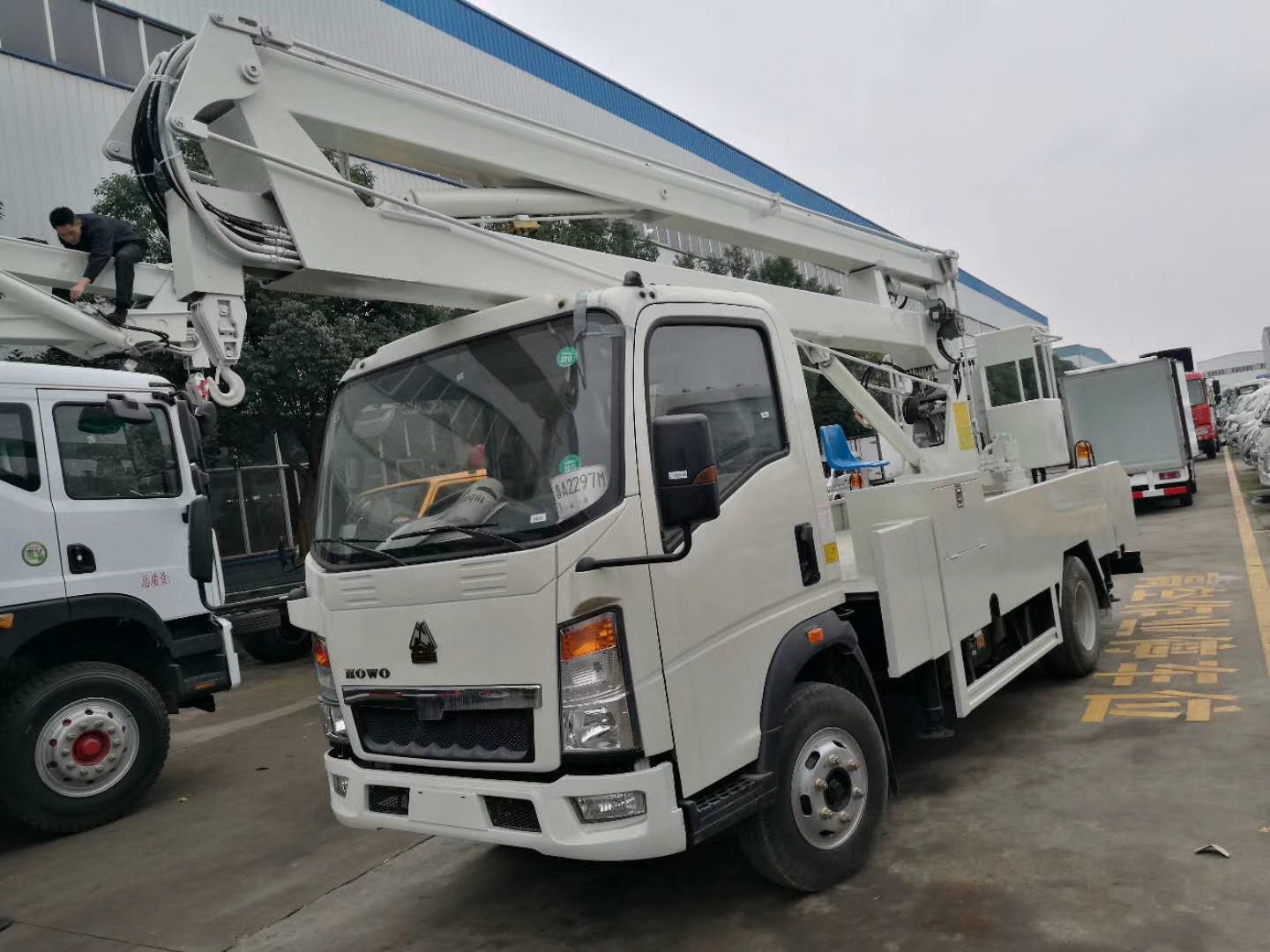

More pictures of 16M HOWO aerial working platform truck is s below.
HOT SALE! HOWO overhead working platform truck for sale
main technical parameters of SINOTRUK HOWO overhead working platform truck 16m is as below.
| Item | Name | Specification |
| 1 | Truck name | Aerial working platform truck |
| 2 | Truck brand | HOWO |
| 3 | Truck chassis | ZZ |
| 4 | Max working height | 16m(person height 1.7m included) |
| 5 | Working bucket | The distance between ground and working platform≥14.3m Max working range of the working platform≥6.92m Working range at the working platform max working≥2.26 Working height at the working platform max working range≥9.2m Max loading capacity of the working bucket: 200kgs |
| Outriggers | Type：H type outriggers Nos.：4 Operating way：Independently adjustable and can also be linked Horizontal span：2680mm Longitudinal span：2960mm | |
| Hook hanger | Max lifting mass ≤1000kg，Safety value: 800kg Max lifting height: 7.2m | |
| Main operation | Operation position: turntable， double working position operation of hanging bar Operation mode: Manual hydraulic or electronic control operation | |
| 6 | Hoarding and platform board | Steel toolbox and hoarding, Pattern non-slip walking board, |
| 7 | Boom structure | 3 sections folded crane boom |
| 8 | Slewing device | Two-way 360° continuous rotation |
| 9 | Engine | YN4102QBZL 116hp |
| 10 | Overall dimension(L*W*H)（mm） | 7300*2000*3100 |
| 11 | Total mass | 6100kgs |
| 12 | Curb mass | 5970kg |
| 13 | Wheelbase | 3360mm |
Famous brand "CLW" Refrigerator truck is used to transport frozen or fresh goods, commonly used to transport frozen foods (ice truck), dairy (milk truck), fruits and vegetables (fresh carrier), vaccine drug transporters (vaccine), etc. which is equipped with refrigeration unit refrigeration device and polyurethane insulating refrigerated compartments of special transport vehicles, Refrigerated trucks by walking part of the special purpose vehicle chassis, and heat insulation heat preservation box body (generally consists of polyurethane materials, glass fiber reinforced plastic, color steel plate, stainless steel, etc.), refrigeration units, car refrigerator temperature recorder parts, such as vehicles for special requirements, such as hook, hook can be mounted to the flesh, the middle, aluminum alloy guide rail, ventilation slots and other options.
the main technical advantages of hot sale refrigerated trucks as below
1.Dongfeng Famous chassis refrigerated truck for sale
2.Good performance refrigerated truck for sale
3.Factory price refrigerated truck for sale
4.Fully past ISO &3C refrigerated certificate.
5.10 tons mini refrigerated truck for sale
6.Delivery by roro or bulk ship.
