customized SINO TRUK HOWO 16T cargo truck with crane for sale
The boom truck is also called cargo crane truck, hydraulic crane truck, boom truck with crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply truck mounted crane from 1ton to 20ton and heavy duty truck with cranes. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
Today, we will introduce hot sale SINO TRUK HOWO 16T truck with crane manufactured by Chengli Special Automobile Co., Ltd. as below.

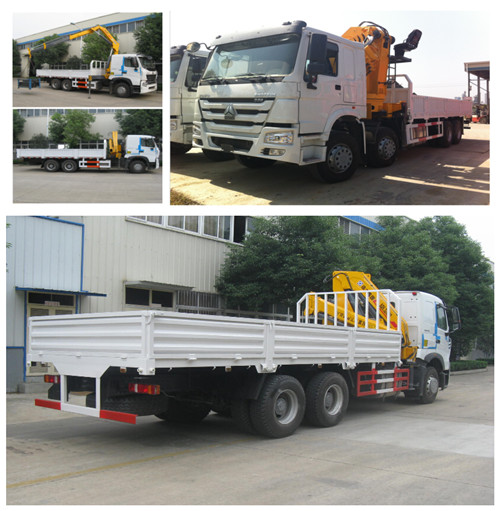

HOT SALE! SINO TRUK HOWO 16T cargo truck with crane for sale
main technical parameters of SINO TRUK HOWO 16T cargo truck with crane manufactured by Chengli Special Automobile Co., Ltd. as below.
| Complete Vehicle Parameter | |||||||
| Vehicle | SINOTRUK HOWO cargo crane truck | ||||||
| Overall dimension (mm) | 11945×2500×3850 | ||||||
| Cargo box (mm) | 7500×2294×550 | ||||||
| Gross vehicle weight (kg) | Appro×30240 | ||||||
| Net weight (kg) | Appro×14110 | ||||||
| Payload (kg) | Appro×16000 | ||||||
| Crane lifting weight (ton) | 14-16 | ||||||
| Wheel base (mm) | 5350+1300 | ||||||
| Front/Rear overhang (mm) | 1250/3545 | ||||||
| Approach/departure angle (°) | 23/12 | ||||||
| Max speed (Km/h) | 90 | ||||||
| Standard configuration | 1. Equipped with 16 ton folding boom crane. 2. Cargo box material is steel plate. 3. Cargo box is rear open. | ||||||
| Truck Chassis Parameter | |||||||
| Cabin | Flat top cabin,a sleeper,power steering,no air conditioner, 3 passengers,left hand drive | ||||||
| Traction system | 6×4 | ||||||
| Engine | Brand : SINOTRUK Model : WD615.69,336hp Type : diesel engine, 6 cylinder, turbocharged, inter-cooled. Displacement : 9726ml Emission standard : Euro 2 | ||||||
| Transmission | 10 forward 1 reverse, manual operated | ||||||
| Tire model | 12.00R20 | ||||||
| No.of tires | 10pcs, and a spare tire | ||||||
| 16 ton Crane Parameter | |||||||
| Crane model | SQ16ZA3 (folding boom) | ||||||
| Maximum lifting weight | 16000kg | ||||||
| No.of boom | 4 | ||||||
| Max working radius | 10.1m | ||||||
| Max lifting height | 12.7m | ||||||
| Max lifting moment | 40 T.m | ||||||
| Recommended power | 40KW | ||||||
| Recommended hydraulic flow | 63L/min | ||||||
| Rated hydraulic pressure | 30MPa | ||||||
| Slew angle | Full rotation | ||||||
| Oil tank | 250L | ||||||
| Lifting capacity | Working radius (m) | 2.5 | 4.6 | 6.4 | 8.25 | 10.1 | - |
| Loading (kg) | 16000 | 8500 | 5900 | 4300 | 3300 | - | |
