Customized 2.5tons dump truck with folded crane boom for sale
dongfeng brand 4*2 LHD dump truck with 2.5tons telescopic boom, adopts dongfeng original truck chassis, 3300mm wheelbase, chaochai 95hp diesel Euro 3 diesel engine, 5 speed gearbox, 7.00R6 nylon tires, 2tons front axle/4tons rear axle, etc.
The telescopic boom choose China made high quality 2tons telescopic boom (2 sections), the dump box body dimension(L*W*H): 3000*1880*400(mm), middle installed double hydraulic cylinders lifting, rear door opened type.
Approximate Overall dimension(L*W*H): 5995*2000*2950(mm).

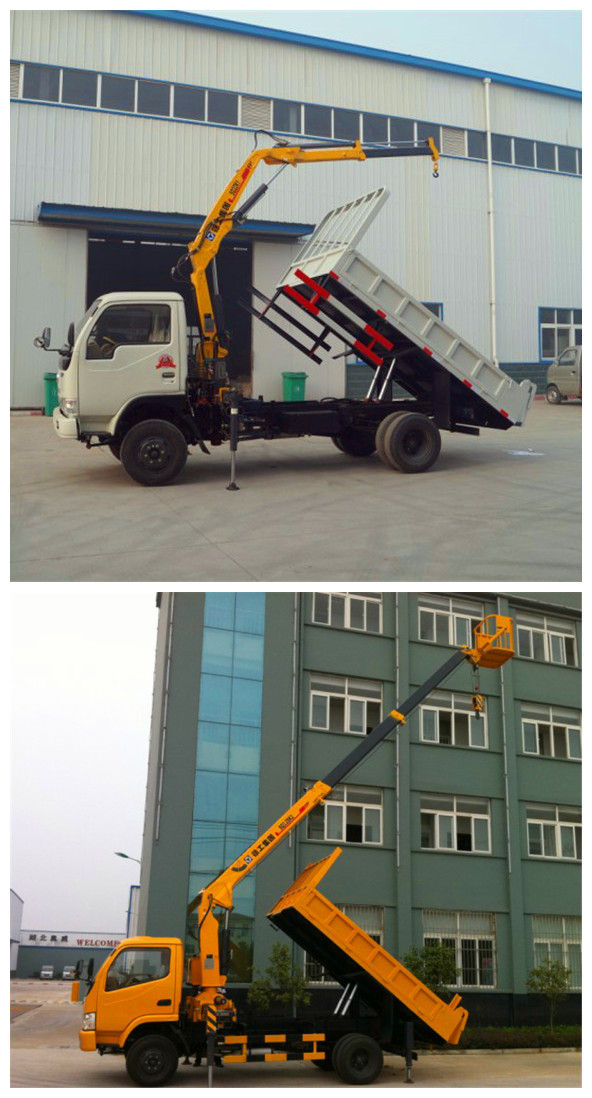

More pictures of Dongfeng 4*2 LHD 2.5ton dump truck with crane(knuckle boom) manufactured by Chengli Special Automobile Co., Ltd. as below.
The specification of Dongfeng 4*2 LHD 2.5ton dump truck with crane(knuckle boom) manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | Dongfeng 4*2 LHD 2.5ton dump truck with crane(knuckle boom) | |
| Truck model | CLW5060JSQ3 | |
| Parameters | Overall dimension length/width/height (mm) | 5995×1980×2950 (mm) |
| Cargo body dimension (L*W*H)(mm) | 3000×1880×400 (mm) | |
| GVW(kg) | 6495 (Kg) | |
| curb Mass(kg) | 3915 (Kg) | |
| Rated mass(kg) | 2385 (Kg) | |
| Approach angle/ Departure angle(mm) | 19/15 (°) | |
| Front suspension/rear suspension(mm) | 1032/1663 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | CY4102 |
| Displacement/Power(kw) | 3856ml/70KW/95hp; | |
| Manufacturer | Chaochai engine; | |
| Type | 4 cylinders in-line inter-cooling; | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 3300 | |
| Tread(front/rear) | 1506/1466 | |
| Transmission | 5 forward gear,1 reverse gear, mechanical transmission | |
| Braking system | Air braking | |
| Cab | Single row driver cab | |
| Number of spring axle(front/rear) | 8/9+5,6/8+4 | |
| Tire Type | 7.00-16 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 3000×1880×400 (mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 2ton knuckle boom | |
| Max lifting mass | 2500kgs | |
| Sections | 2 | |
| Working radius | 5m | |
| Lifting height | 7m | |
| Rotation degree | ±360°full rotation, full hydraulic | |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us. The hot sale line is 0086 13329899995.
