Compacted garbage truck is usually called refuse compactor truck,trash compactor truck, compression garbage truck,garbage compact truck,compressed refuse truck, waste compactor truck, compacted garbage truck, wastes collecting vehicle, etc.
Our CLW brand compactor garbage truck is constructed with 12# low alloy steeland 5mm, 4mm, 10mm steel.The body is fitted on the chassis by the truck beam.The body floor is fully sealed.All the sewage can go directly into the sewage tank,so as not to corrode the body and chassis .Moreover,it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.
The waste compression truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.by the use of hydraulics,the barrel is locked during the overturning process,which is very safe and reliable.
As a professional special vehicle manufacturer in China, with ISO9001-2008 quality system and 3C certificate, the waste garbage compactor trucks we produce is from 4m³ to 20m³. And also we can customize the garbage compactor trucks
upon request. Welcome more and more clients to viist our Chengli Special Automobile Co., Ltd. and purchase our garbage compactor trucks and other special purpose vehicles. More information, please contact with Ms. Anita.
Today, we will introduce hot sale SINO TRUK HOWO 4*2 LHD truck chassis, 3360mm wheelbase, yunnei 116hp diesel Euro 3 engine, 6 speed gearbox, 7.00R16 rail tires, etc. The volume of the SINO TRUK HOWO compactor garbage van is 5m3,and with the wastes loading capacity of about 6tons. THe wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of
strengthen beam and steel plate weled.

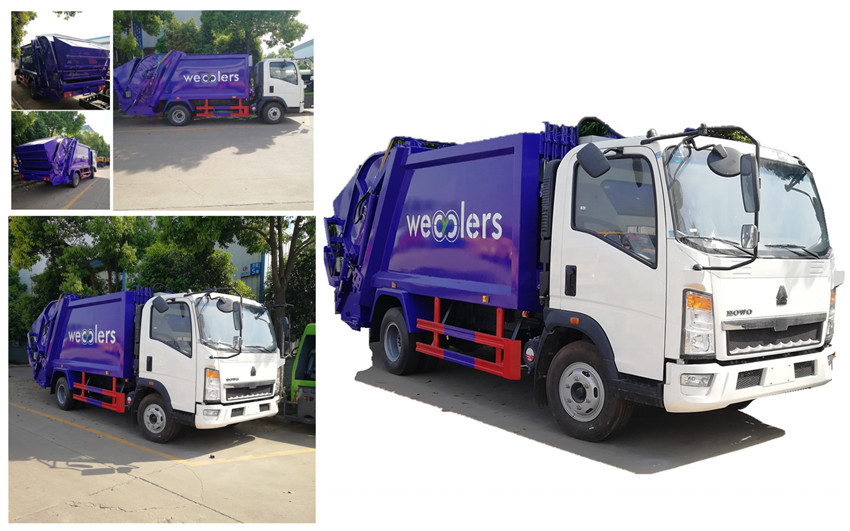

More pictures of SINO TRUK HOWO 5CBM 4tons garbage compactor trucks manufactured by Chengli Special Automobile Co., Ltd. as below.
SINO TRUK HOWO 5CBM 4tons garbage compactor trucks for sale
main technical parameters of SINO TRUK HOWO light duty 5m3 garbage compactor trucks manufactured by Chengli Special Automobile Co., Ltd. as below.
Items | Descriptions | Specifications and Types |
General | Truck Name | Waste Compactor truck |
Drive Type | 4*2 | |
Gross Vehicle Weight(kg) | 7400 | |
Curb Weight (kg) | 5920 | |
Overall Dimensions (mm) | 7095×2200×2450 |
