2020s new manufactured 90tons knukcle crane truck for sale
Heavy duty crane truck refers to the crane turck with the loading capacities from 40tons,50tons,60tons, 90tons, 100tons, 110tons, 130tons, 120tons, 150tons, even 200tons.
Today, we will intrroduce the heavest duty-CLW brand 90tons truck with crane. 150T truck with crane refers to the special purpose heavy duty vehicles with the loading capacity of 90tons at the place of 4m from the Center of turntable.
The 150tons heavy duty truck with crane is with the truck model of CLW5430JQZZ5, adopting SINO TRUK HOWO 4 axles, sino truk 340hp diesel engine, 10 speed gearbox, 9T front axle/16T rear axles, 12.00R20 rail tires, etc. And the crane boom adopts CLSQZ3600 90T 5 sections hydraulic knuckle crane boom with one secondary arm, can be lifting 90tons at the distance of 4m from the center of turnable.

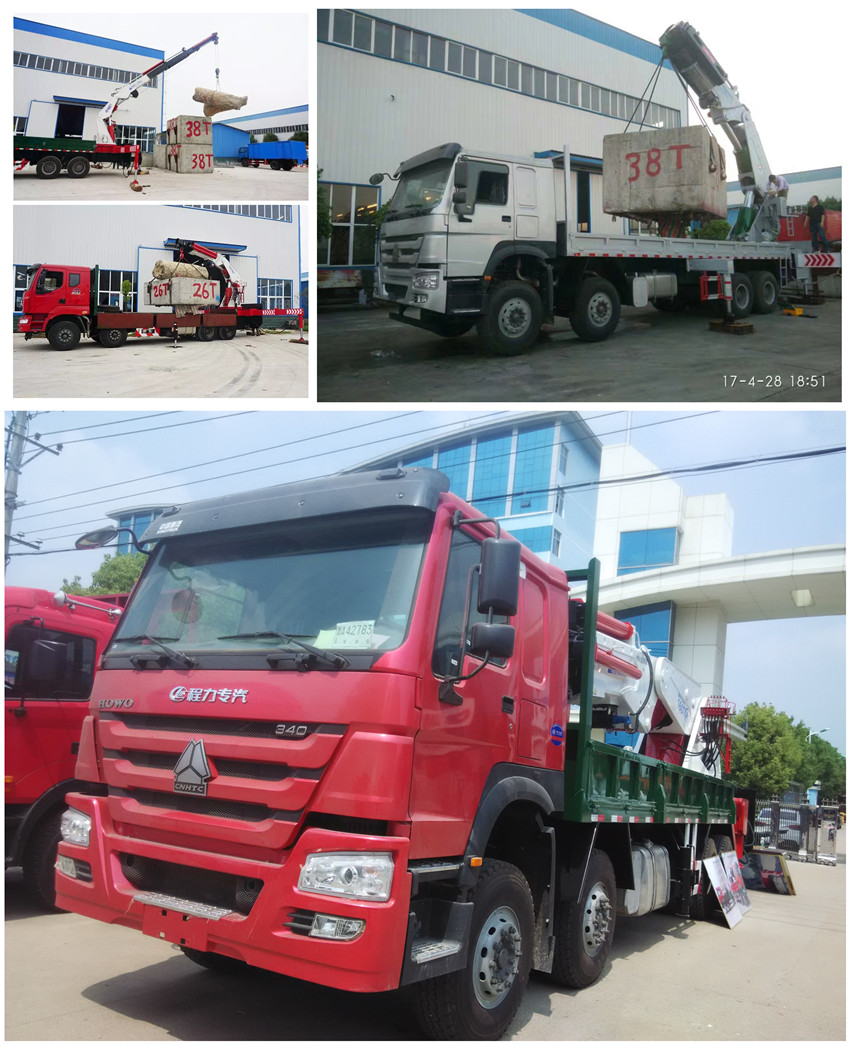

More pictures of CLW brand 90tons knuckle crane truck manufactured by Chengli Special Automobile Co., Ltd. as below.

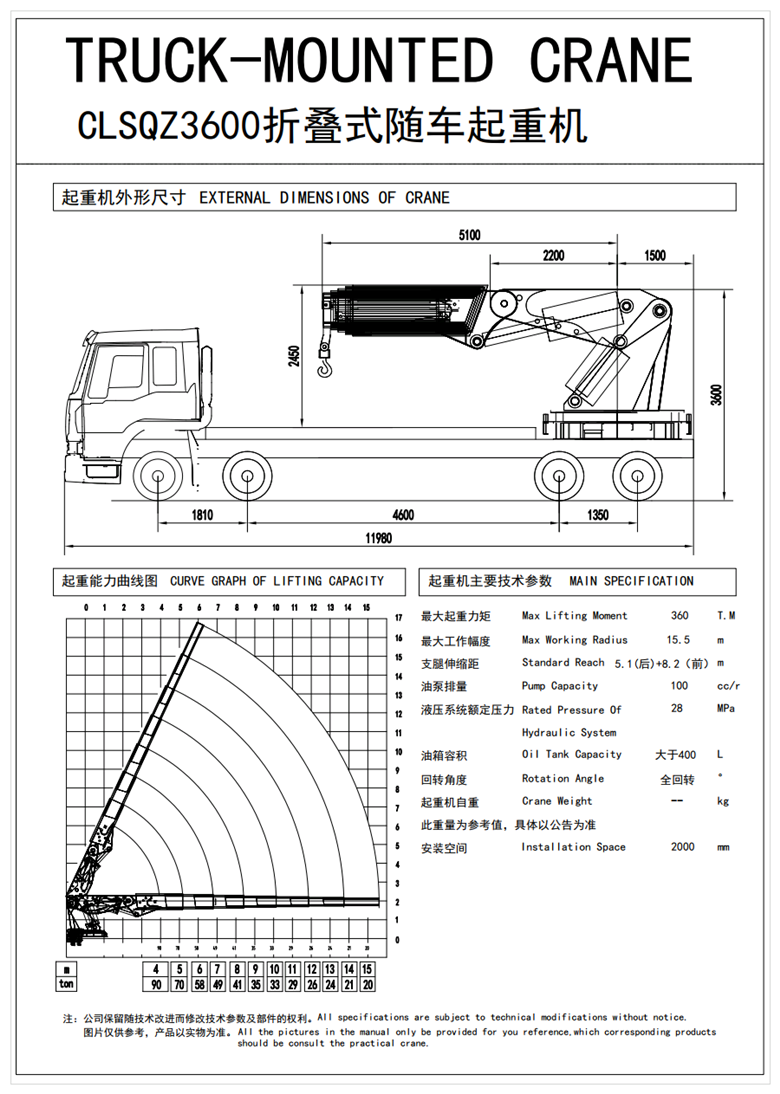

The simple drawing pictures of CLW brand 90tons knuckle crane boom
HOT SALE! customized CLW brand 90tons crane truck for sale
main technical parameters of CLW brand 90tons knuckle boom mounted on truck for sale manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | SINO TRUK HOWO 8*4 LHD 60tons knuckle boom mounted on truck for sale | |
| Chassis type | ZZ5437V4667E1 | |
| Parameters | Overall dimension length/width/height (mm) | 12000×2500×3980 |
| Cargo body dimension (L*W*H)(mm) | 7300×2390×500 (mm) | |
| GVW(kg) | 43000(Kg) | |
| Kerb Mass(kg) | 42870(Kg) | |
| Approach angle/ Departure angle(mm) | 14/9 (°) | |
| Front suspension/rear suspension(mm) | 1500/2750 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 80 | |
| Engine | Type | D10.34-50 |
| Displacement/Power(kw) | 9726ml/249KW/340hp | |
| Manufacturer | Zhongqi | |
| Chassis | Drive Type | 8*4 |
| Wheelbase(mm) | 1800+4600+1350 | |
| Tread(front) | 2022/2022 | |
| Tread(rear) | 1830/1830 | |
| Front axle | 7tons front axle | |
| Rear axle | 16tons rear axle | |
| Transmission | 10 speed gearbox, manual | |
| Braking system | Air braking | |
| Cab | HW76 driver cab | |
| Number of spring axle(front/rear) | 11/11/12, | |
| Tire Type | 12.00R20, | |
| Air-condition | Yes, | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 7300×2390×500 (mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLSQZ2400 60tons knuckle crane boom | |
| Working radius | Approximate 15m | |
| Max lifting height | Approximate 18m | |
| Lifting mass(4m to the Turntable Center) | 60tons | |
| The color of the whole truck is upon request. | ||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China for several years. With many years' development, we Chengli Special Automobile Co., Ltd. can manufacture and sell light duty telescopic/knuckle crane boom mounted on truck and heavy duty truck with cranes from 20tons-150tons. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
