HOT SALE! Heavy duty dongfeng 8*4 LHD weichai 340hp diesel engine 14tons telescopic crane boom mounted on cargo truck for sale
Dongfeng 8*4 LHD truck with crane, adopts dongfeng fang tianlong one row and a half driver cab, ,1850+4400+1350mm wheelbase, weichai 340hp diesel engine, gearbox 10 speed manual gearbox, 5.5tons front axle/13tons double rear axles, 10.00R20 rail tires, etc.
The dimension of cargo body box is 8500×2300×550,800(mm); while the overall dimension of dongfeng T5 12tons telescopic crane mounted on truck is 12000×2550×3990(mm). client choose to install CLW Brand high quality 14tons telescopic crane boom.

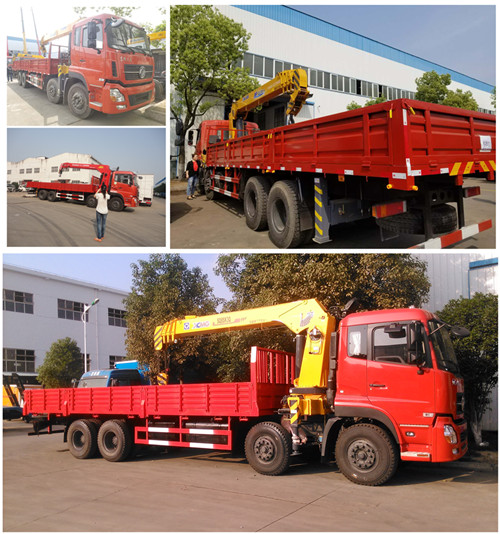

More pictures of dongfeng brand 8*4 LHD 14T telescopic crane boom mounted on cargo truck manufactured by Chengli Special Automobile Co., Ltd. as below.
customzied dongfeng brand 8*4 LHD 14T telescopic crane boom mounted on truck for sale
Main technical parameters of Dongfeng Dongfeng 8*4 LHD 14tons telescopic crane boom mounted on truck for sale as below.
| Product name | Dongfeng 8*4 LHD 14tons telescopic crane boom mounted on truck for sale | |
| Chassis type | EQ1311GLVJ | |
| Parameters | Overall dimension length/width/height (mm) | 12000×2550×3990(mm) |
| Cargo body dimension (L*W*H)(mm) | 8500×2300×550(mm) | |
| GVW(kg) | 31000(Kg) | |
| Kerb Mass(kg) | 18400 (Kg) | |
| Rated mass(kg) | 12405 (Kg) | |
| Approach angle/ Departure angle(mm) | 19/16 (°) | |
| Front suspension/rear suspension(mm) | 1500/2600 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Engine | Weichai 340hp |
| Rated power | 7520ml 8424ml | |
| Rated power | 199KW 213KW | |
| Manufacturer | DONGFENG | |
| Chassis | Drive Type | 8*4 |
| Wheelbase(mm) | 2150+4400+1350 | |
| Tread(front/rear) | 2040/2040; 1860/1860 (mm) | |
| Transmission | Fastgear 9 speed gearbox, manual | |
| Braking system | Air braking | |
| Number of spring axle(front/rear) | 3/3/4 | |
| Tire Type | 11.00R20 | |
| Air-condition | Choose to install | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8500×2300×550(mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 14T 5 sections telescopic crane boom | |
| Crane boom lifting height | 20m | |
| Crane boom working radius | 18.5m | |
| Rotation | Full hydraulic, full rotation | |
| The color of the whole truck is upon request. | ||
The boom truck is also called cargo crane truck, hydraulic crane truck, boom truck with crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply truck mounted crane from 1ton to 20ton and heavy duty truck with cranes. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13886878855.
