2020s BEST PRICE New DONGFENG D9 20m aerial working platform truck for sale
Chengli Special Automobile Co., Ltd. is a professional manufacturer of aerial platform trucks in china for several years, we can design and manufacture various configuration trucks with different prices for our clients.

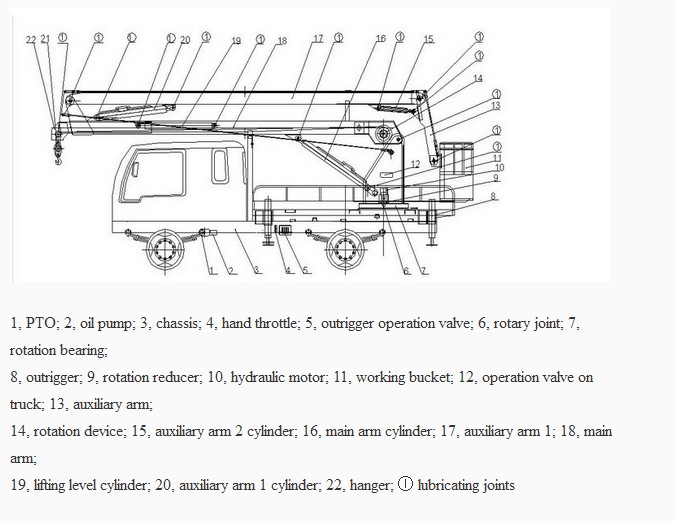

The superstructure of CLW brand overhead working trucks as below
1 Aerial working height 12m,14m,16m,18m,20m,20m,14m
2 the rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
3 Aerial baskets is moving system with dual action commands, one at ground level and the other at the level of the basket
4 trucks equipped with two rotating amber lights
5 Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead working.

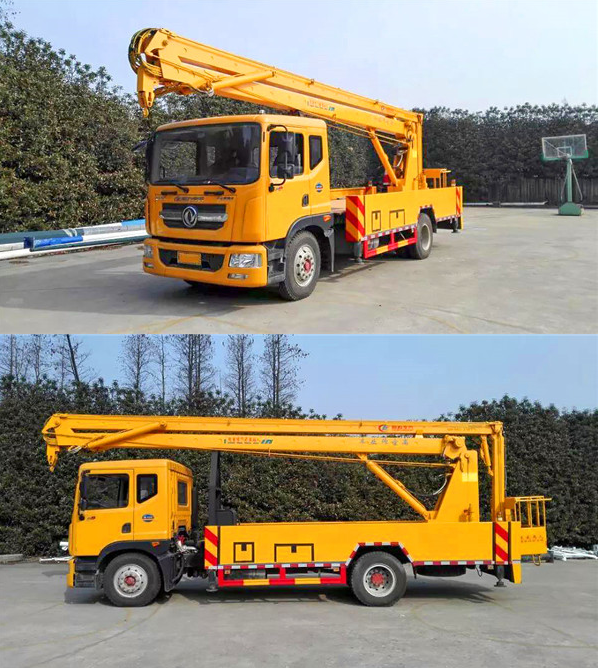

More pictures of Dongfeng D9 20m hydraulic high altitude operation truck manufactured by Chengli Special Automobile Co., Ltd. as below.
HOT SALE! Dongfeng D9 20m aerial working platform truck for sale
The main techncial parameters of best price dongfeng D9 20m overhead working platform truck manufactured by Chengli Special Automobile Co., Ltd. as below.
1 Truck model Dongfeng D9 20m aerial working platform truck for sale
2 Truck chassis model EQ
3 Max working height 20m
4 Main technical parameters for the overhead working truck The distance between the grpund to the platform:18.3m
5 Max working range of the platform ≥ 8.7m
6 Max working range at the max heighgt of the platform ≥ 3.07m
7 Max working height at the max working range of the platform ≥ 11.5m
8 The loading capacity of the working bucket: 200kgs
9 Outriggers Type: H type outriggers
10 Numbers: 4
11 Operation way: Individually adjustable or linkage adjustable.
12 Transverse Span: 2930mm
13 Longitudinal Span: 4500mm
14 Lift hook Max lifting mass 1000kgs, ≤
15 Safety lifting mass: 800kgs
16 Max lifting height: 8.5m
17 Boom structure type 3 sections knuckle boom
18 Rotation device Bilateral 360°rotation
19 Engine ISB180 50; YC4S160-50
20 Overall dimension(L*W*H)(mm) 9200*2500*3700
21 Total mass 10705kgs
22 Curb mass 10510kgs
23 Wheelbase 3950mm
More information, please kindly contact Ms. Anita. The hot sale line is 0086 13329899995.
