Dongfeng 6*4 LHD 210hp diesel 8-10tons knuckle crane boom mounted on truck for sale
Dongfeng 6*4 8ton knuckle truck with crane, adopts dongfeng 153 one row and a half driver cab, 4350+1300mm wheelbase, Cummins 210hp Euro 3 engine, bigger 8 speed transmission (manual); 5tons front axle/10tons double axles, 10.00R20 rail tires*10+1, etc.
And overall dimension (L*W*H): 10790×2495×3790(mm)
Cargo van dimension(L*W*H) 7200×2294×550(mm),
Choose to install high quality CLW brand 8tons-10tons knuckle crane boom.

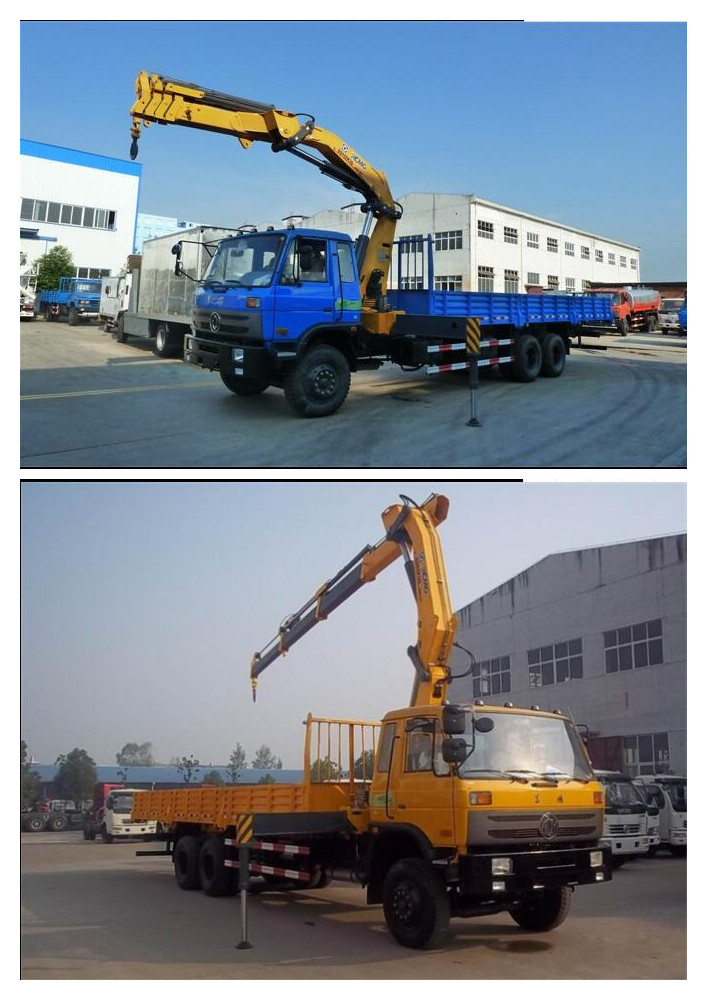

More pictrues of Dongfeng brand 210hp diesel 8tons-10tons knuckle crane boom mounted on cargo truck manufactured by Chengli Special Automobile Co., Ltd. as below.
HOT SALE! Dongfeng 210hp diesel 8-10tons knuckle crane boom mounted on truck for sale
Main technical parameters of dongfeng brand 6*4 LHD 210hp diesel 6.3tons truck with knuckle crane boom as below
Product name: Dongfeng 6*4 LHD truck with crane for sale
Chassis type: EQ5253GFJ2
Parameters Overall dimension length/width/height (mm): 10790×2495×3790
Cargo body dimension (L*W*H)(mm): 7200×2294×550
GVW(kg): 22600 (Kg)
curb Mass(kg): 12985,13985 (Kg)
Rated mass(kg): 9420,8420 (Kg)
Approach angle/ Departure angle(mm): 28/10 (°)
Front suspension/rear suspension(mm): 1245/3495 (mm)
Fuel Type: diesel
Max Speed: 85km/h
Engine Type: B210 33
Displacement/Power(kw): 5900ml/155KW/210hp
Manufacturer: Dongfeng Cummins Engine Co.,Ltd
Engine Type: 6-in-line inter-cooling; inter-cooling diesel Euro Ⅲ engine
Chassis Drive Type: 6*4
Wheelbase(mm): 4350+1300
Tread(front/rear): 1940; 1860/1860 (mm)
Front axle: 5Ton
Rear axle: 10Tons*2
Transmission: 8 speed transmission, manual
Braking system: Air braking
Cab: Dongfeng 153 luxurious driver cab with one row and half
Number of spring axle(front/rear) 9/10
Tire Type: 10.00R20*10+1
Air-conditioner: Without, choose to fix
Upper part(cargo van and crane boom) main parameters
Upper body Cargo body dimension: 7200×2294×550 (mm)
Material: Carbon steel
Side sheet thickness: 1.5mm thickness cold roller plate
Bottom sheet thickness: 3mm thickness cold roller plate
Painting: Upon request
Crane boom main parameters
Crane boom: Choose to install CLW brand 8tons-10tons knuckle crane boom
The color of the whole truck is upon request.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply truck mounted crane from 1ton to 20ton and heavy duty truck with cranes. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
