HOT SALE! new dongfeng brand 30cbm bulk feed delivery truck with 4 compartments for Philippines.
new dongfeng brand 30cbm bulk feed delivery truck is with DONGFENG tianjin VR driver cab, Cummins 210hp diesel Euro 5 engine, fastgear 8 speed gearbox, 11.00R20 rail tires, 1800+5000mm wheelbase, air
conditioner, power steering, etc. The volume of dongfeng 6*2 LHD bulk feed truck is 30cbm with 4 compartments for 4 different feed pellets.

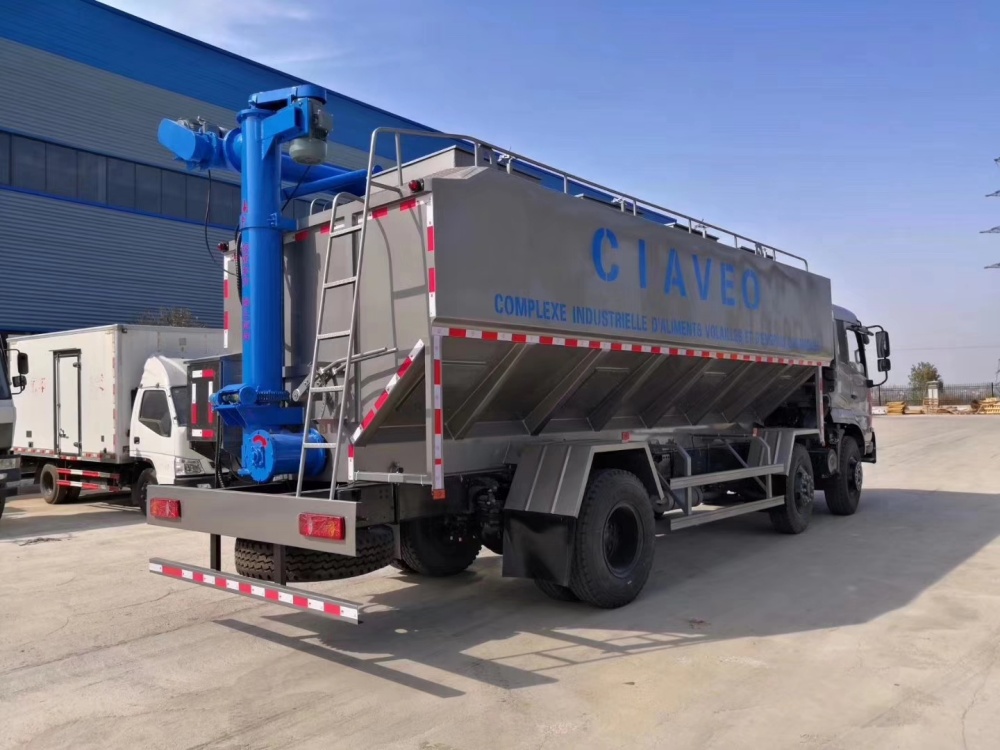

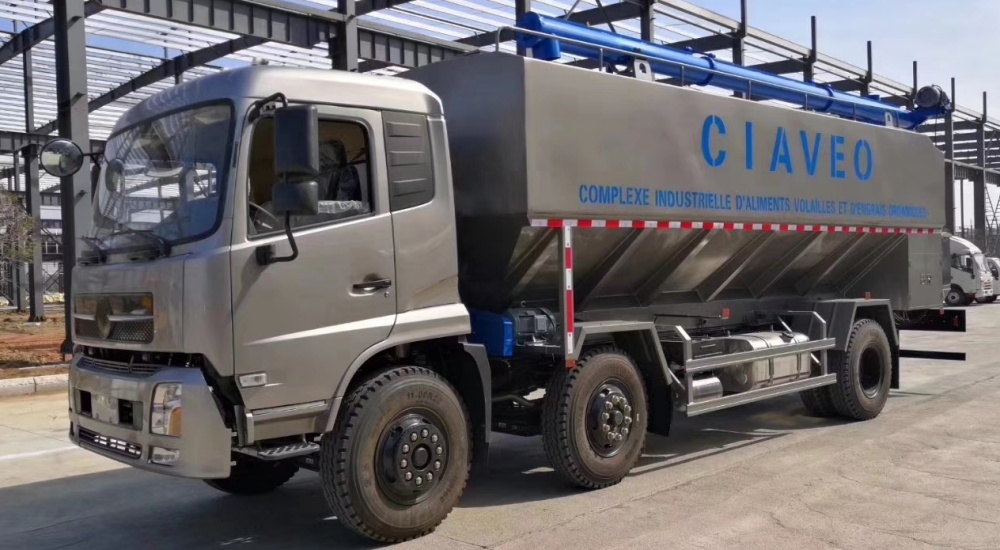

More pictrues of 30CBM bulk feed truck with 4 compartments manufactured by Chengli Special Automobile Co., Ltd. as below.
electronic system discharging b30cbm bulk feed truck with 4 compartments for sale
good quality and best price 30cubic meters dongfeng animal feed delivery truck for sale
The specification of Dongfeng 30cbm bulk feed truck as below
| Main technical parameters | |||
| Product name | CLW5251ZSLD5 30m3 bulk feed truck | ||
| Total mass(Kg) | 25000 | Tank volume(m3) | 30 |
| Rated mass(Kg) | 14055 | Overall dimension(mm) | 10980×2480×3930 |
| Curb mass(Kg) | 10750 | Cargo body dimension(mm) | 8100×2480×2150 |
| Approach/departure angle (°) | 23/11,23/10 | Front/rear tread(mm) | 1430/2750,1430/2660 |
| Axle no. | 3 | wheelbase(mm) | 1800+5000 |
| Axle load(Kg) | 7000/7000/11000 | Max speed(Km/h) | 98 |
| Truck chassis | |||
| Truck chassis model | DFH1250BXV | Truck chassis brand | Dongfeng brand |
| Tire specification | 11.00R20*10 | Approach/departure angle(°) | 23/13 |
| Steel spring | 10/10/10+8,10/10/11+8,3/3/10+8,3/3/4+3 | Front tread(mm) | 1915/1915,1955/1955 |
| Fuel type | Diesel | Rear tread(mm) | 1860 |
| Emission standard | GB17691-2005 Euro Ⅴ,GB3847-2005 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| ISD210 50 | Dongfeng Cummins | 6700 | 155 |
| Truck chassis devices | The truck chassis adopts dongfeng Tianjin original truck chassis, 6*2 LHD drive type, D530 flathead one row and a half driver cab, Euro 5 ISB210-50 Electrically controlled common rail diesel engine, dongfeng 8 speed gearbox, 5tons double front axles, 10tons Single stage deceleration rear axle, 250mm double boom,11.00R20 rail tires, air conditioner, Electric doors and Windows etc. | ||
| The feed container devices | The feed container is with the volume of 30m3(the density of the bulk feed pellet is from 0.5tons/m3 to 0.65tons/m3), | ||
| Feed container Volume | 30 m3 （CLW5251ZSLD5） |
| Loading capacity (kgs) | About 15tons(according to the density of the feed) |
| Overall dimension(L*W*H) | 10980×2480×3930 |
| Feed tank dimension(L*W*H) (mm) | 8100×2480×2150 |
| Discharging way | Electronic system discharging(3 phase 380Volts) or hydraulic system discharging |
| Compartments | 4 separated compartments for 4 different feeds |
| Discharging auger length | 8.5m |
| Average discharging speed（kg/min） | 500-600kg/min |
| Full discharging time (minutes) | 25 |
| max elevation angle of auger when discharging | 70 degree |
