New brand ISUZU road sweeping and washing vehicle(600P) for Phillipines
Main technical parameters
Product name: New brand ISUZU road sweeping and washing vehicle(600P) for sale
Total mass(Kg): 7300
Volume: 4CBM water tanker+4cbm dust tanker
Rated mass(Kg): 670
Overall dimension (mm): 7160×2250×2750
Curb (Kg): 6500
Driver cab seated person: 2
Appraoch/departure angle(°): 24/13
Front/rear suspension(mm): 1015/2330
Axle load(Kg): 2580/4720
Max speed (Km/h): 110
Truck chassis model: QL1070 isuzu
Axle nos.: 2
Wheelbase(mm): 3815
Tires specification: 7.00-16 14PR*6
Steel spring: 8/6+5
Front tread(mm): 1504
Rear tread(mm): 1425
Fuel type: Diesel
Emission standard: Euro 4
Engine model: 4KH1-TCG4O 88KW/120HP diesel Euro 4 engine

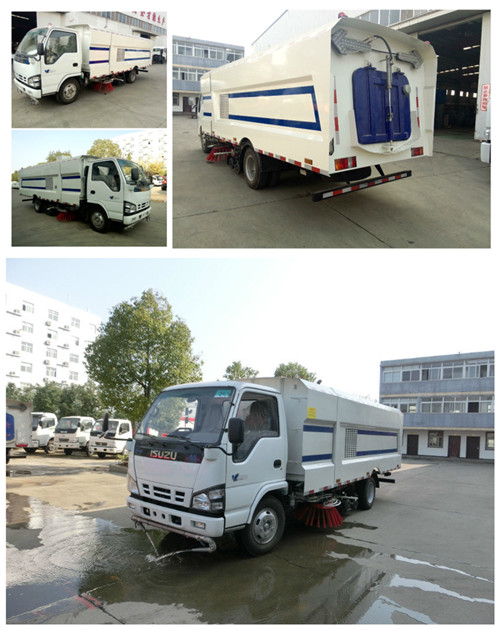

More pictures of ISUZU brand 4*2 LHD 600P road sweeping and washing vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
ISUZU brand 4*2 LHD 600P road sweeping and washing vehicle for sale
The upper parts of ISUZU brand 4*2 LHD 600P road sweeping and washing vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
Truck chassis model: QL1070
Engine model: 4KH1-TCG4O
Auxiliary engine: B140 140hp diesel
Engine power: 88KW/120hp
Overall dimension (L*W*H): 7160×2250×2750(mm)
volume: 4cbm stainless steel material dust tanker+4cbm stainless steel material water tanker
Working width: 2.8m-3.2m
sweeping speed(km/h): 3-15
working speed(km/h)：15-20
Max cleaning ability(m2/h): 48000
Extraction granularity (mm)
Dust tank dumping angle
cleaning efficiency: ≥96%
Standard devices of the ISUZU brand road sweeping and washing truck: middle-installed sweeping disks with 2 sweeping brushes, CUMMINS 140hp auxiliary engine, SANYO motor, German imported high pressure water pump(front-spraying/side praying/middle-spraying/rear spraying/side flushing-washing guns/dust tank self-cleaning device), universal high pressure roadside cleaning, low-pressure pump(front-flushing), stainless steel dust tanker+ stainless steel water tanker, stainless steel high pressure pipelines, Schneider control switch, rear part arrow light, oil+dust tanker+water tanker are with anti-overflow or low alarm device; Reversing and washing state monitor; Reversing and washing state monitor, high pressure flushing reel, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of sweeper truck in China. With many years' development, Chengli Special Automobile Co., Ltd could supply dongfeng sweeper truck, ISUZU sweeper truck, Forland road cleaning truck, JMC road sweeper truck, FAW street sweeper, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line of road sweeper truck is 0086 13886878855.
