Customized CLW 6.1m length day old chicks transported truck for Nigeria
One unit of dongfeng brand 4*2 LHD 190hp diesel 6.1m length day old chicks transported truck customized for client from Nigeria.
Chick special transporter, chicken transport truck, livestock and poultry transporter, chick transportation truck, chick transporter, duckling transporter, duckling transporter, chicken transporter, poultry transporter, poultry transporter transporter Special automotive products specially designed for the transportation of piglets, poultry, breeding pigs, finished pigs, cattle, sheep and other livestock and poultry, designed with natural ventilation system, heating system, air conditioning, water spray cooling system, hydraulic tail plate vertical lifting system, floor The entire layer of lifting system, automatic feeding system, temperature monitoring, internal monitoring system of the box and other high-quality, highly integrated automation control systems, modernize livestock and poultry transportation, ensure the environment for livestock and poultry transportation during transportation, improve survival rate, and facilitate loading and unloading Give livestock a mobile "home".
Day old chicks transported vehicle is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc.
It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost.
There are ventilation and heating system inside the farm poultry transported truck. There are several electronic ventilator fans (according to the length of the insulation van) on the top for ventilating, assuring offering enough oxygen for the baby young chicks/ducks/ gooses in the van. There are several windows (according to the length of the chick box body) for ventilating, heating, oxygen-offering.
And we can design and installed shelves in the van body.
The poultry transported truck is mounted on the truck chassis, choosing high quality, high strength FRP materials with high-tech Sandwich crafts working.
The advantages of the day old ducks truck are rainproof, dustproof, theft-proof, environmental protection, high efficiency, ventilating, insulation, large loading capacity, etc.
Today, we will introduce hot sale dongfeng 6.1m length day old chicks transported truck(40,000 chicks) manufactured by Chengli Special Automobile Co., Ltd. as below.

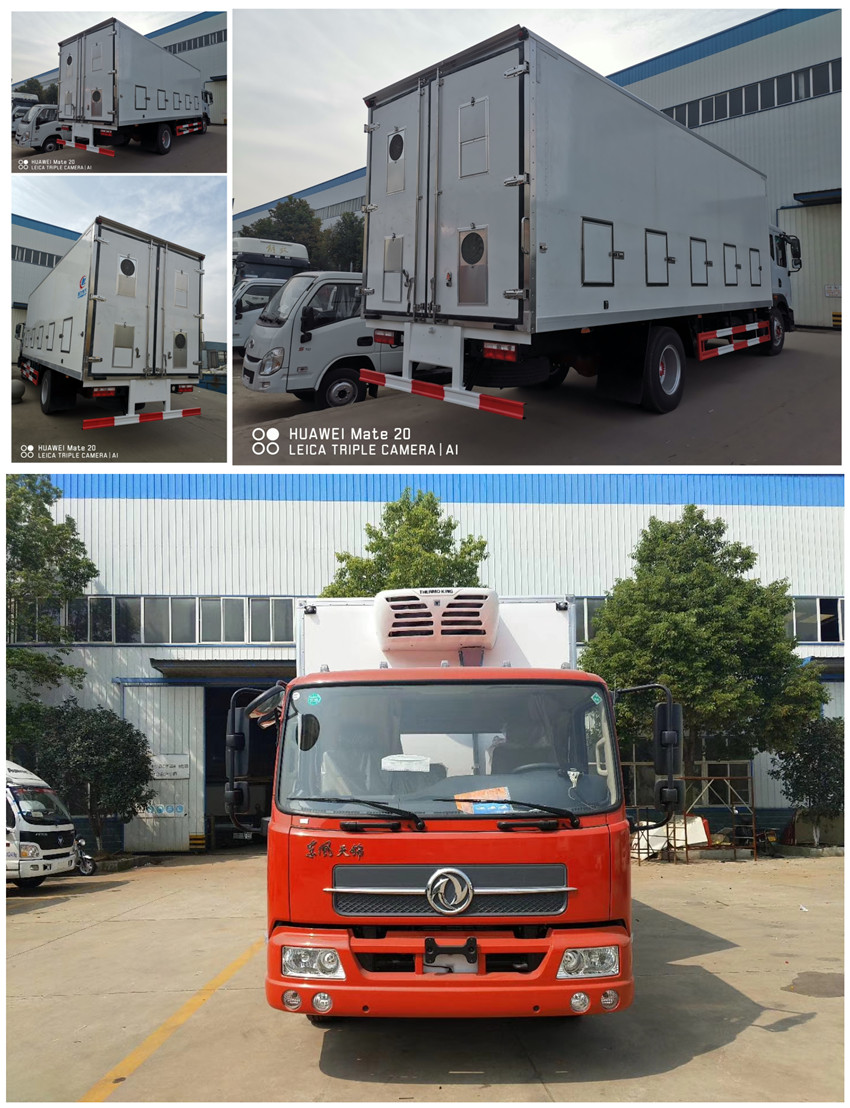

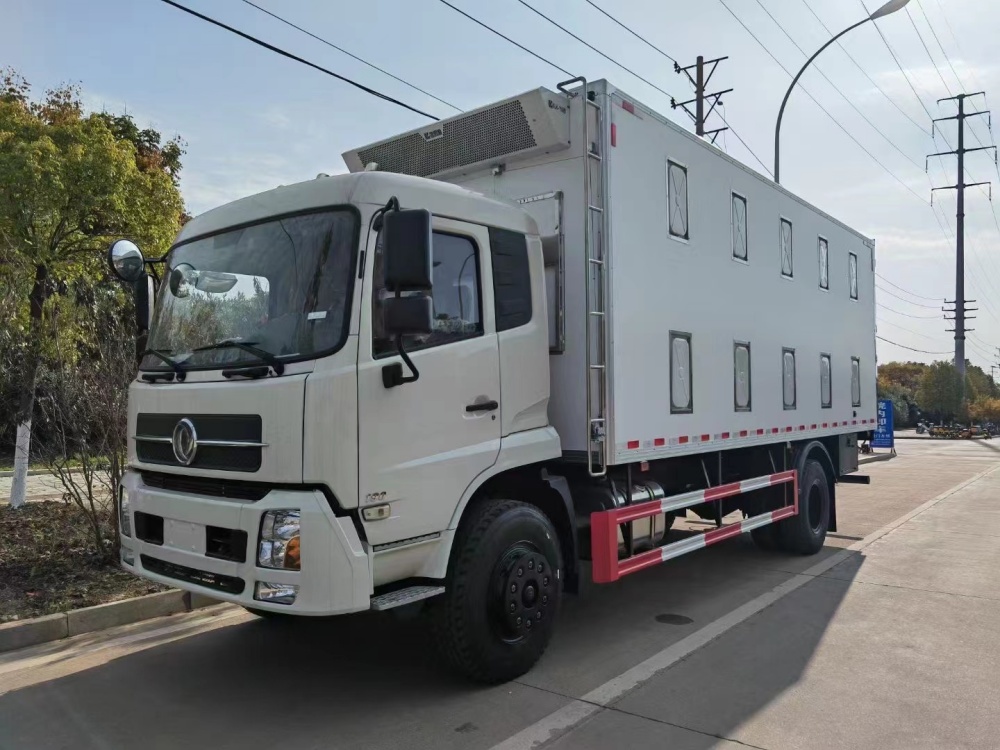

More pictures of Dongfeng 4*2 LHD 190hp diesel 6.1m length 40,000 day old chicks transported truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Product name: Dongfeng tianjin LHD 4*2 day old chick transported truck
Overall dimension(L*W*H)(mm): 8700*2490*3850
Chick van box dimension(L*W*H)mm: 6100*2280*2300 (mm).
Drive type: 4*2 LHD, RHD is selective Total mass
Gearbox: 8 speed gear box
Tyre specification: 10.00R20 tyres *6+1
Power steering: Yes
Exhaust braking Yes
Air-cut braking: Yes
Driver cab: Dongfeng TIANJIN 4*2 luxurious one and a half driver cab with original air conditioner
Engine: Cummins 190hp
Emission standard: Euro 3
Wheelbase(mm): 4700
F/R axle loading: 5tons/10tons
Main parameters for the chick van box as below.
Performance and consumption
1,Heating system: Watering system Yes, heating
2,Cooling systemL One refrigerated reefer USA made high quality vehicle-powered CARRIER brand refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab)
3,Ventilation system:
a, Air duct installed on the floor for air flow Two line as the pictures show
b,Cold air ducts on the two sides of the van body Two cold air ducts for the refrigerated reefer
c, Blind windows 5 sets of blind windows with openable doors for the left and right van sides (as the pictures show), 4 sets of blind windows for the front plate.
Blind Windows: 5*2+4=14
d, electronic ventilator fans 1, 4 sets of electronic ventilator fans with sliding doors for the rear plate door; 4*2 sets of electronic ventilator fans for the van top
Electronic fans: 4+3*2=10
e, Sky-window Top mounted sky windows*2 Sky-windows: 4*1=4
4,Dimension
Chick van box body
Length: 6100mm
Width: 2280mm
Height: 2300m
5,Refrigerated van box Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices; Aluminum-patterned baseplate;
