Chengli Special Autmobile is the leading manufacturer and supplier of truck with crane in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply cargo truck with crane, dump truck mounted crane, crane truck, etc. As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
HOT SALE! SINO TRUK HOWO 12T knuckle crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.

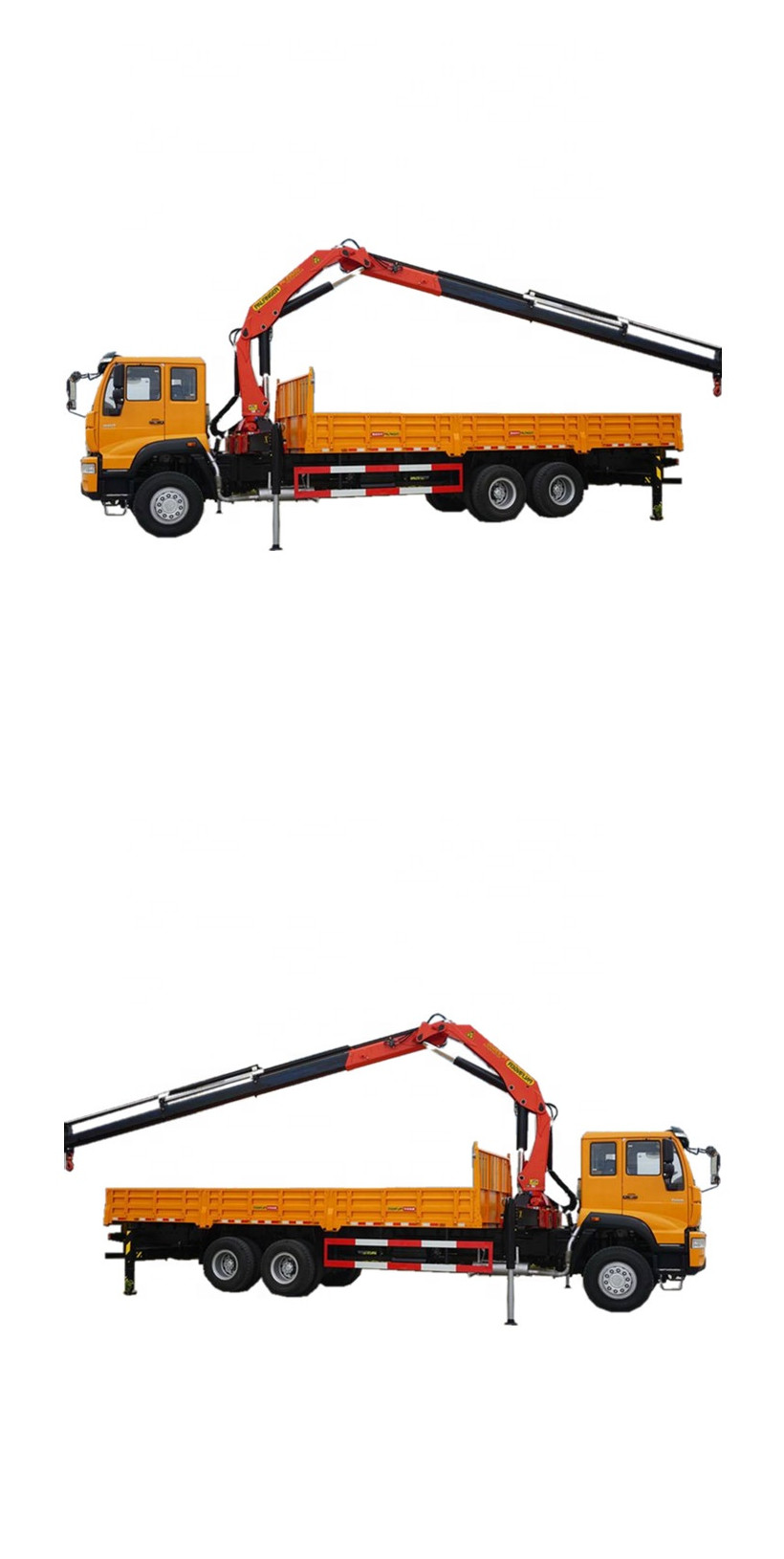

customized SINO TRUK HOWO 12T knuckle crane boom mounted on truck for sale
The specification of SINO TRUK HOWO 12T knuckle crane boom mounted on truck as below.
| Chassis parameters | SINO ZZ1251M5841C1 | Unit |
| Vechicle size | 11998×2498×3880 | (mm) |
| Box size | 8000,8200×2300×550 | (mm) |
| A/D angle | 20.5/10 | |
| Total mass | 25000 | (Kg) |
| Rated mass | 9290 | (Kg) |
| Curb weight | 15580 | (Kg) |
| Wheels | 3 | |
| Wheelbase | 5750+1350 | mm |
| Wheel loading | 7000/18000 (double alxes ) | kg |
| Steel spring NO. | 10/12 | pc |
| Tyre NO. | 10 | pcs |
| Tyre size | 11.00-20 | |
| Front tread | 1995,2047 | mm |
| Rear traad | 1820/1820 | mm |
| Box material | GB steel | |
Product Description of CLW brand 12tons knuckle crane boom mounted on SINO TRUK HOWO truck as below.
| crane model | SQ12SA2 | |||||||
| the max lifting capacity (kg) | 12000 | |||||||
| The greatest moments from Gravity (n.m) | 320000 | |||||||
| Cross section form | Pentagon | Turn back Institutions | ture back speed (r/min) | 2 | ||||
| arms | 3 | ture back range ° | 360 | |||||
| length (m) | 4.5—11.9 | legs | type | lifting | ||||
| the max working radio (m) | 12.3 | width range (m) | 2.5-5.* | |||||
| out rated (m/s) | 6.8/35 | hydraulci systerm | systerm pressure (mpa) | 24 | ||||
| scope of change | 1-70 | oil tanker (L) | 180 | |||||
| lifting speed (°/s) | 70/22 | safty systerm | warning | |||||
| the max lifting height (m) | 14.5 | the crane weight (kg) | 4000 | |||||
| single rope rated pressure (N) | 19600 | |||||||
| hook hositing speed (m/min) | 8.03 | installation space | 1250mm | |||||
| roap diameter (mm) | 12 | |||||||
| roap length (m) | 115 | |||||||
| lifting form | ||||||||
| work radius (m) | 2.5 | 5.2 | 8.55 | 11.9 | ||||
| rated loading (kg) | 12000 | 5400 | 2650 | 1280 | ||||
CLW truck mounted crane is one of our main mature products which is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
Product Notes of CLW brand truck mounted crane manufactured by Chengli Special Automobile Co., Ltd. as below.
· Optional: from 2 ton to 200 ton lifting capacity crane truck
· Optional: straight arm and floding arm truck crane with or without remote control
· Optional: different famous crane brand: HIAB, Shimei, Zoomlion, Sany, Chengli balong, etc.
· Optional: different famous chassis brand: Dongfeng, FAW, Foton, Sinotruk, Syter, Shaanxi, T-king, Dayun, Yuejin, JMC, JAC, etc.
· Factory direct sale, low price and good quality.
