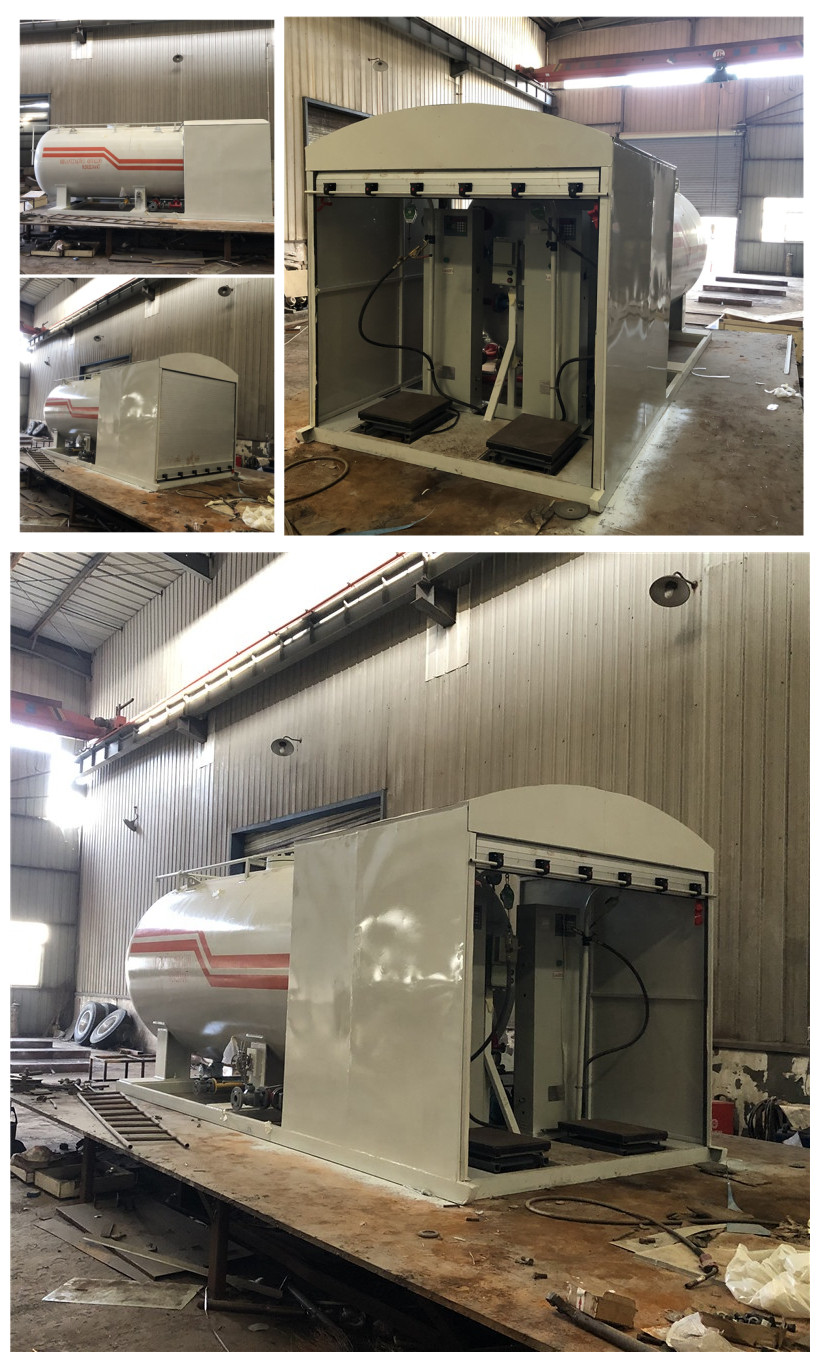

Customized 10CBM skid lpg gas refilling station with double electronic scales for gas cylinders for sale
Skid LPG gas filling station, is mainly used to build a gas filling station for retailing and selling LPG gas in a city, for kitchen use gas cylinder, it is euipped with big LPG storage tank, pipe system, safety accessroies, gas filling scales(can install many scales at the same time), etc. At present, we Chengli Special Automobile Co., Ltd. can design and manufacture skid lpg gas refilling stations from 5m3 to 50m3,even customized bigger ones. Meanwhile, we can also manufacture and sell CKD/SKD for skid lpg gas refilling stations. Clients can purchase our surface lpg gas storage tanks and the CKD/SKD accessories, then to install the skid lpg gas refilling plant locally by themselves.
The features of CLW brand LPG skid filling station manufactured by Chengli Special Automobile Co., Ltd. as below
> LPG storage tank with capacity of 5cbm up to 120cbm
> Color : as customer's requirement
> LPG Filling pump with motor
> LPG discharging pump with motor
> Safety Valve+Liquid Level Indication + Pressure Gauge + Thermometer etc
> Other valves and necessary accessories for the operation of lpg filling station.
customized skid lpg gas refilling station with double electronic filling scales for sale Technical parameters of CLW brand 10cbm skid lpg gas refilling station with double electronic filling scales manufactured by Chengli Special Automobile Co., Ltd. as below.
<td
| 10M3 / 10CBM LPG TANK DIMENSIONS | |||||
| Volume of Tank | 10CBM | ||||
| Filling Weight | 3990 kg | ||||
| Tank Weight | 2950 kg | ||||
| Thickness of Shell (mm) | 10 mm | ||||
| Thickness of Endplate (mm) | 10 mm | ||||
| Tank Diameter (mm) | 1600 mm | ||||
| Tank Dimensions (mm) (length x width x height) | 5260 x 1620 x 2210 mm | ||||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||||
| Design Pressure | 1.77 MPa | ||||
| Corrosion Allowance | 1 mm | ||||
| Medium Density | 500 kg/ M3 | ||||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||||
| Main parts of LPG Tank | |||||
| Item | Specification | ||||
