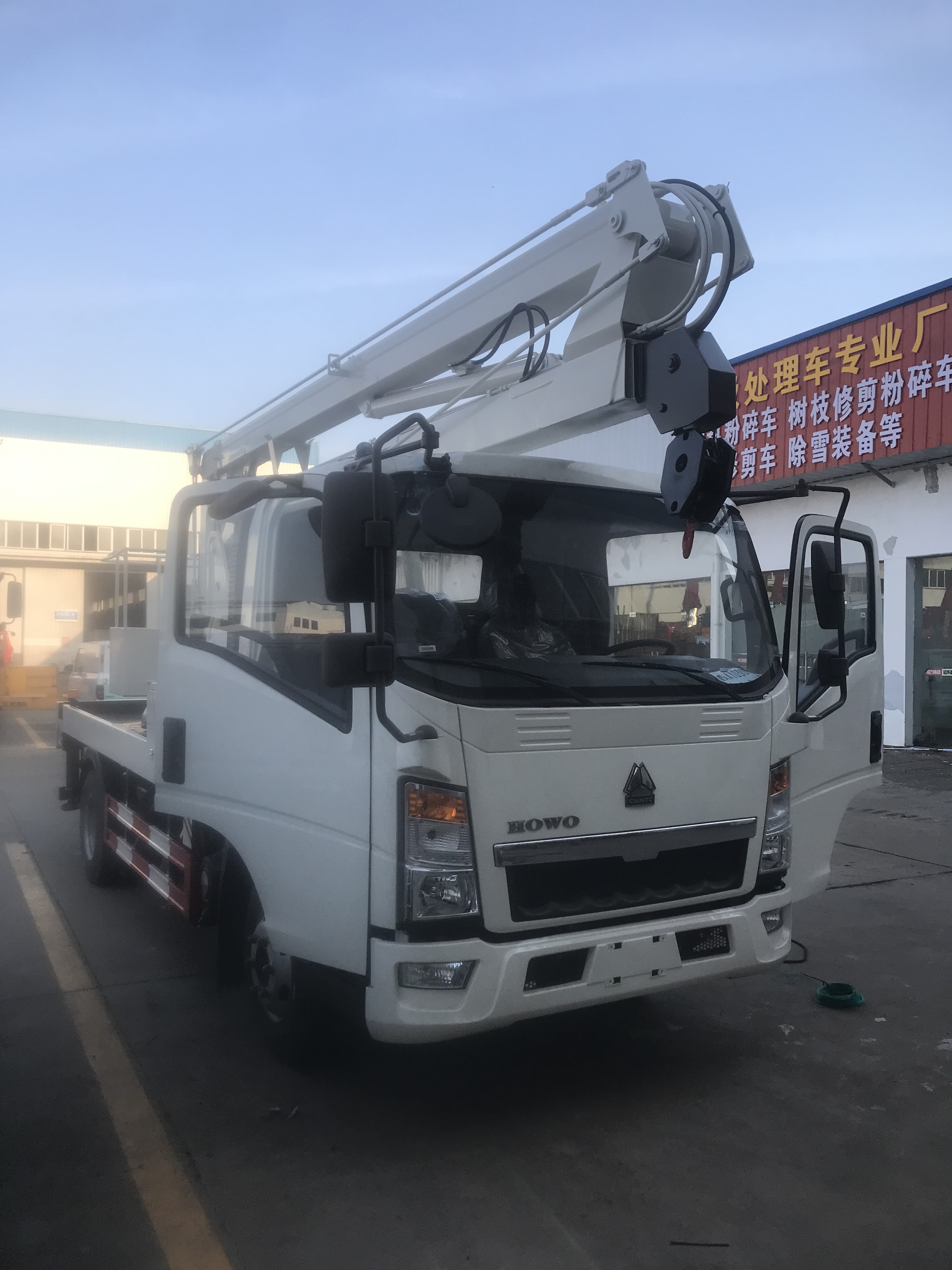

Good price HOWO brand aerial working platform truck 13.5m for sale
One unit of 13.5m HOWO brand aerial working platform truck manufactured by Chengli Automobile Co., Ltd. is as below.
HOT SALE! 13m HOWO overhead working truck for sale
13m working height HOWO aerial work platform truck for sale
Main technical parameters of HOWO aerial working platform truck is as below.
| 1 | Product brand | HOWO aerial working platform truck for sale (13.5m) |
| 3 | Chassis model | ZZ |
| 4 | Max working height | 13.5m(person height 1.7m included) |
| 5 | Main technical parameters for working | The distance between ground and working platform≥11.8m Max working range of the working platform≥6.5m Working range at the working platform max working≥2.05m Working height at the working platform max working range≥7.3m Max loading capacity of the working bucket: 200kgs |
| Outriggers | type：H type outriggers Nos.：4 Operating way：Independently adjustable and can also be linked Horizontal span：2680mm Longitudinal span：3000mm | |
| Hook | Max lifting mass ≤1000kg，Safety value: 800kg Max lifting height: 6m | |
| Main operation | Operation position: turntable， double working position operation of hanging bar Operation mode: Manual hydraulic or electronic control operation | |
| 6 | Hoarding and platform board | Steel toolbox and hoarding, Pattern non-slip walking board, |
| 7 | Boom structure | 3 sections folded crane boom |
| 8 | Slewing device | Two-way 360° continuous rotation |
| 9 | Engine model | JX4D30B6H 85KW/115HP |
| 10 | Overall dimension(L*W*H) | 5990×1980×2950 |
| 11 | Total mass | 4495kg |
| 12 | Curb mass | 4365kg |
| 13 | wheelbase | 2800mm |
SINOTRUK HOWO 4*2 LHD 13.5-meter high-altitude operating vehicle adopts a folding crank arm structure, the operating arm is three-section folding, the working bucket and the turntable have double working positions, up and down operation, electro-hydraulic control, 360-degree rotation, four hydraulic outriggers, inside the working bucket It can control the start and stop of the engine, the boom has a hoisting hook system, the hook lifting weight is ≤900kg, the manned working bucket is 200kg, the steel tool box and the pattern anti-skid platform, and the stainless steel fence.
The chassis hydraulic outrigger balance system is equipped with a two-way hydraulic lock as standard, the working arm cylinder is equipped with a two-way balance valve as standard, and the working arm balance structure is an external balance lever.
The main components of Chengli aerial vehicle hydraulic cylinders, hydraulic tubing, hydraulic locks, balance valves, gear pumps, power take-offs, multi-way valves, etc., all adopt well-known domestic brands. The hydraulic system of the vehicle has stable reversing and flexible and convenient operation; The working arms are interlocked, safe and reliable, to prevent misoperation; H-shaped outriggers have a large span and good stability. The outriggers can be independently retractable and linked. The rear outriggers are equipped with outriggers and flashing lights for operation. When the outrigger is profiled, it sends out a light alarm signal.
The technical advantages of the truck mounted aerial working platform truck is as below.
1. The working bucket adopts mechanical self-balancing design, and its function is that the working bucket is always in a balanced state when working.
2. The rear outriggers of the vehicle are equipped with warning outline lights to improve the safety of warnings during vehicle operation.
3. The upper and lower operating systems can complete various operations on the working bucket and on the turntable.
4. The working bucket is equipped with night operation lights to make night operation safer.
5. The outriggers are individually adjustable. Each outrigger can be adjusted separately according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state.
6. The outrigger adopts front and rear H-shaped structure, which has larger bearing surface and higher stability.
7. The hydraulic system is equipped with a hydraulic locking system, whose function is to lock the cylinder in place after reaching the required position to prevent accidents.
We are a professional manufacturer of aerial platform trucks in china, and we can provide our customers various configuration trucks with different prices. Aerial platform truck is ideal for maintenance of traffic lights, street lights, landscaping trees, clearing of high window and other high aerial works.
Working height : 6m,8m,10m,12m,14m,16m,18m,20m,22m,24m. More information, please feel free to contact Ms. Anita Deng. The hot sale line is 0086 13329899995.
