Customized SHACMAN brand 8*4 RHD 14T knuckle crane boom mounted flatbed plate
One unit of SHACMAN brand 8*4 RHD flatbed truck with knuckle boom customized for Kenya is finished, ready for shipping.
This is the first time for this Kenya client purchase the truck with crane from our company.

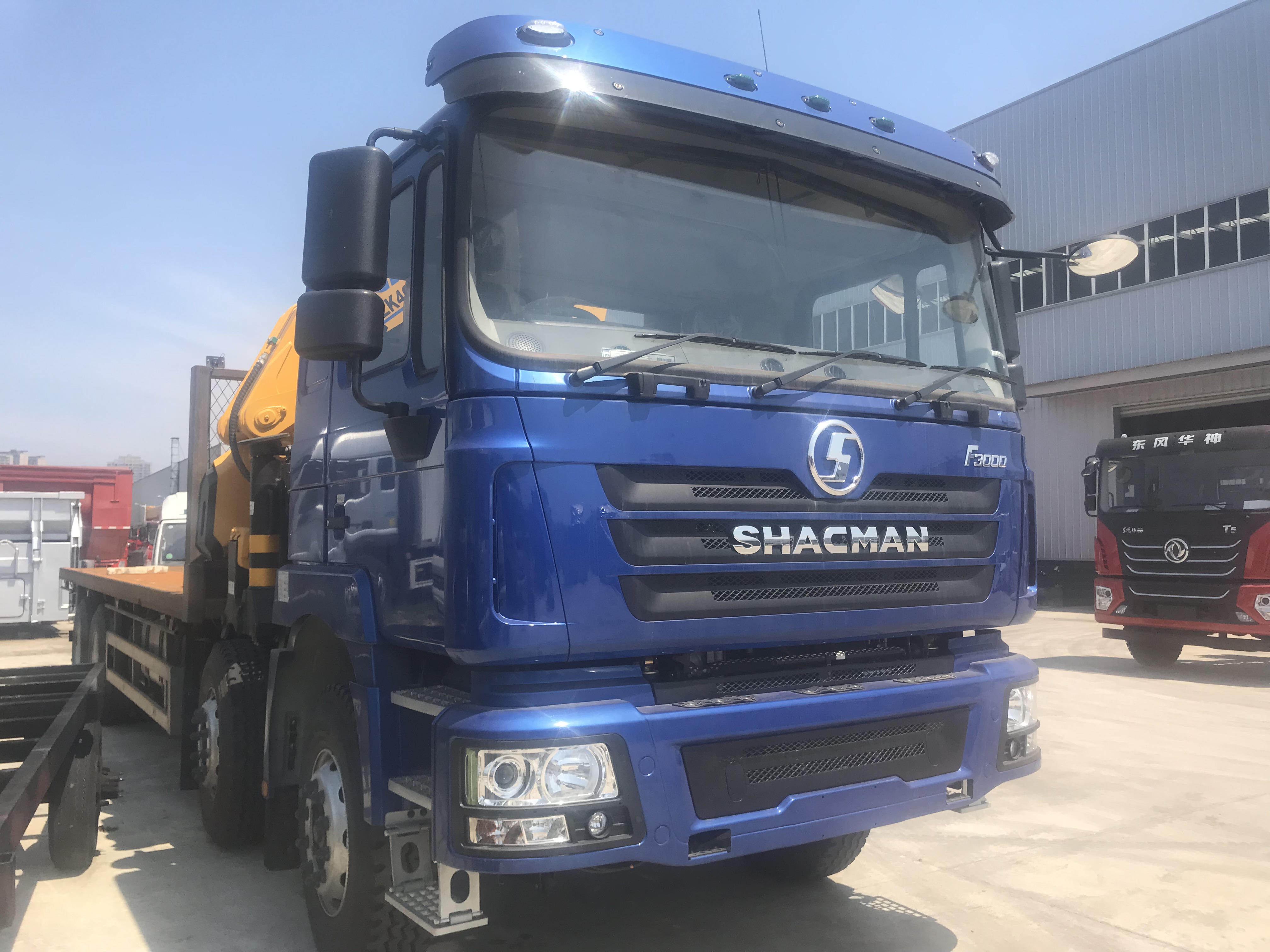

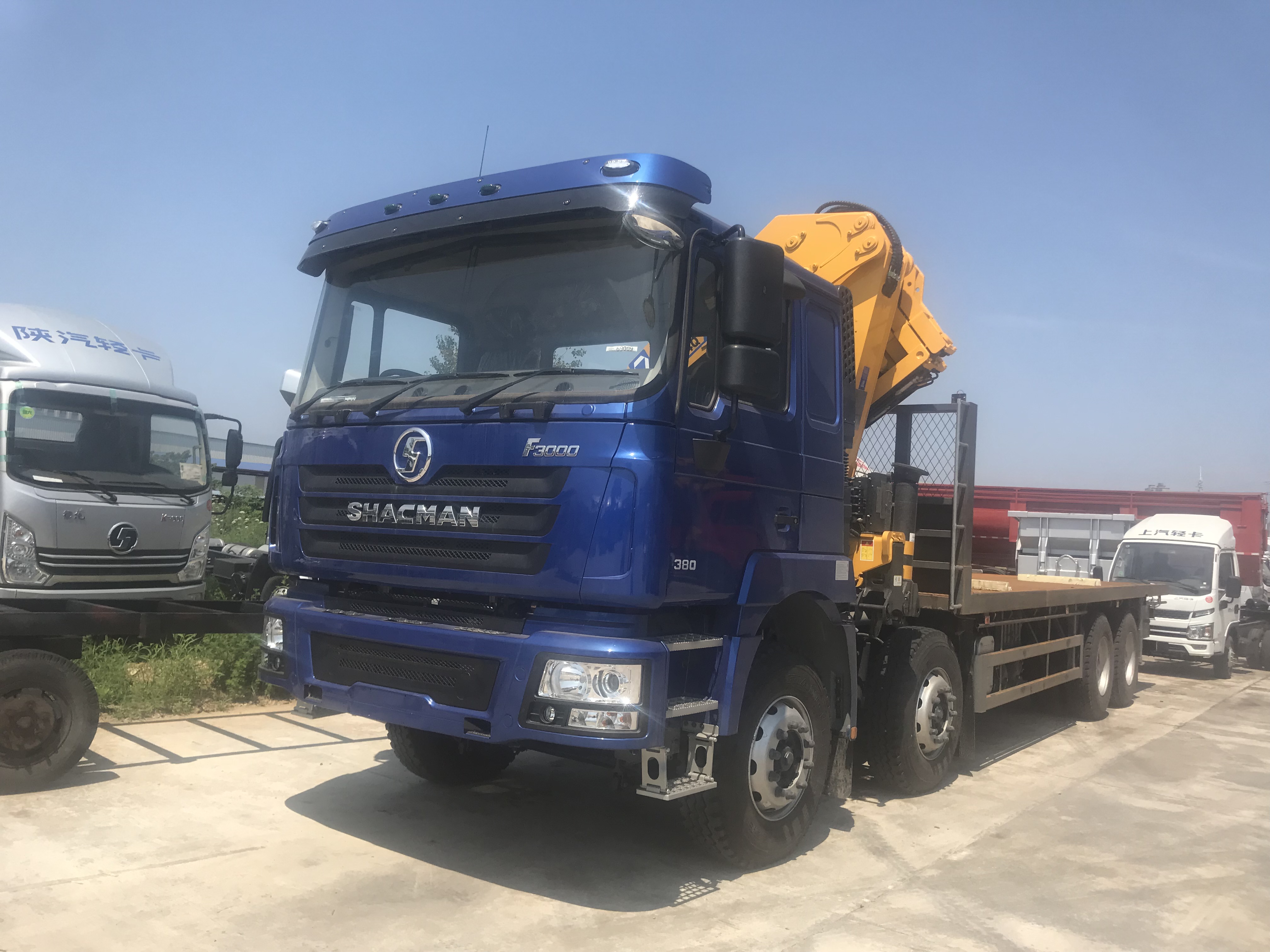

Look at the pictures of SHACMAN brand 8*4 RHD 14T knuckle boom lorry truck is as below.
Good price SHACMAN brand truck with crane for sale
High quality and best price RHD SHACMAN RHD knuckle boom lorry truck 14T for sale
Customized SHACMAN brand 8*4 RHD 14T knuckle crane boom mounted on cargo truck adopts Shacman M series low-top luxurious driver cab, 2100+4575+1400mm wheelbase,
SHACMAN brand 8*4 LHD 14T knuckle crane boom mounted on truck for sale, 10JSD180+QH50 gearbox, WP10.380E22 380hp diesel Euro 2 engine, MAN 9.5T front axle, 400L aluminum alloy tanker, 12.00R20 rail tires, etc.
Clients choose to install XCMG 14T knuckle crane boom. The flatbed dimension (L*W*H): 8000x2450x600 (mm). There are rear manual ladders at the rear part of the cargo body. Choosing to install XCMG brand 14T knuckle crane boom (the working height is 14m and the working radius is 12.1m, full rotation with aerial operation seat).
The specification of SHACMAN brand 8*4 LHD 14tons knuckle crane boom mounted on truck as below
| Product name | SHACMAN brand 8*4 LHD 14tons knuckle crane boom mounted on truck for sale | |
| Chassis type | SX1310 | |
| Parameters | Overall dimension length/width/height (mm) | 12000×2550×3980 |
| Cargo body dimension (L*W*H)(mm) | 8000×2450×600,800 | |
| GVW(kg) | 31000 (Kg) | |
| Kerb Mass(kg) | 20800 (Kg) | |
| Rated mass(kg) | 10070,10005 (Kg) | |
| Approach angle/ Departure angle(mm) | 16/10 (°) | |
| Front suspension/rear suspension(mm) | 1525/2400 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | WP10.380E22 |
| Displacement/Power(kw) | 9726ml/280KW/380hp | |
| Manufacturer | WEICHAI | |
| Chassis | Drive Type | 8*4 |
| Wheelbase(mm) | 2100+4575+1400 | |
| Tread(front/rear) | 2036/2036, 1860/1860 (mm) | |
| Transmission | 10JSD180+QH50 manual gearbox | |
| Braking system | Air braking | |
| Cab | SHACMAN M3000 luxurious driver cab | |
| Number of spring axle(front/rear) | 10/10/12 | |
| Tire Type | 12.00R20 | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8000x2450x600 |
| Material | Carbon steel | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 14T 5 sections knuckle crane boom | |
| Lifting height | 14m | |
| Working radius | 12.1m | |
| The color of the whole truck is upon request. | ||
More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
