Two units of dongfeng KR compacted garbage trucks for North Africa
15cbm DONGFENG KR compacted garbage truck for sale
DONGFENG KR one row and a half driver cab
B190 33 Cummins 190hp diesel engine, Euro 3 emission standard
4*2 LHD, RHD optional
4500mm wheelbase/5000mm wheelbase
DONGFENG 6+1 gears,manual type
10.00R20 tires*6+1 spare
6T front axle/10T rear axle
160L oil tanker, etc.
The volume of the dongfeng KR compactor garbage van is 15m3,and with the wastes loading capacity of about 6tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
It is designed with rear flipping mechanism for two models of wastes bins(one for 240Liters wastes bins and 660Liters wastes bins)
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.

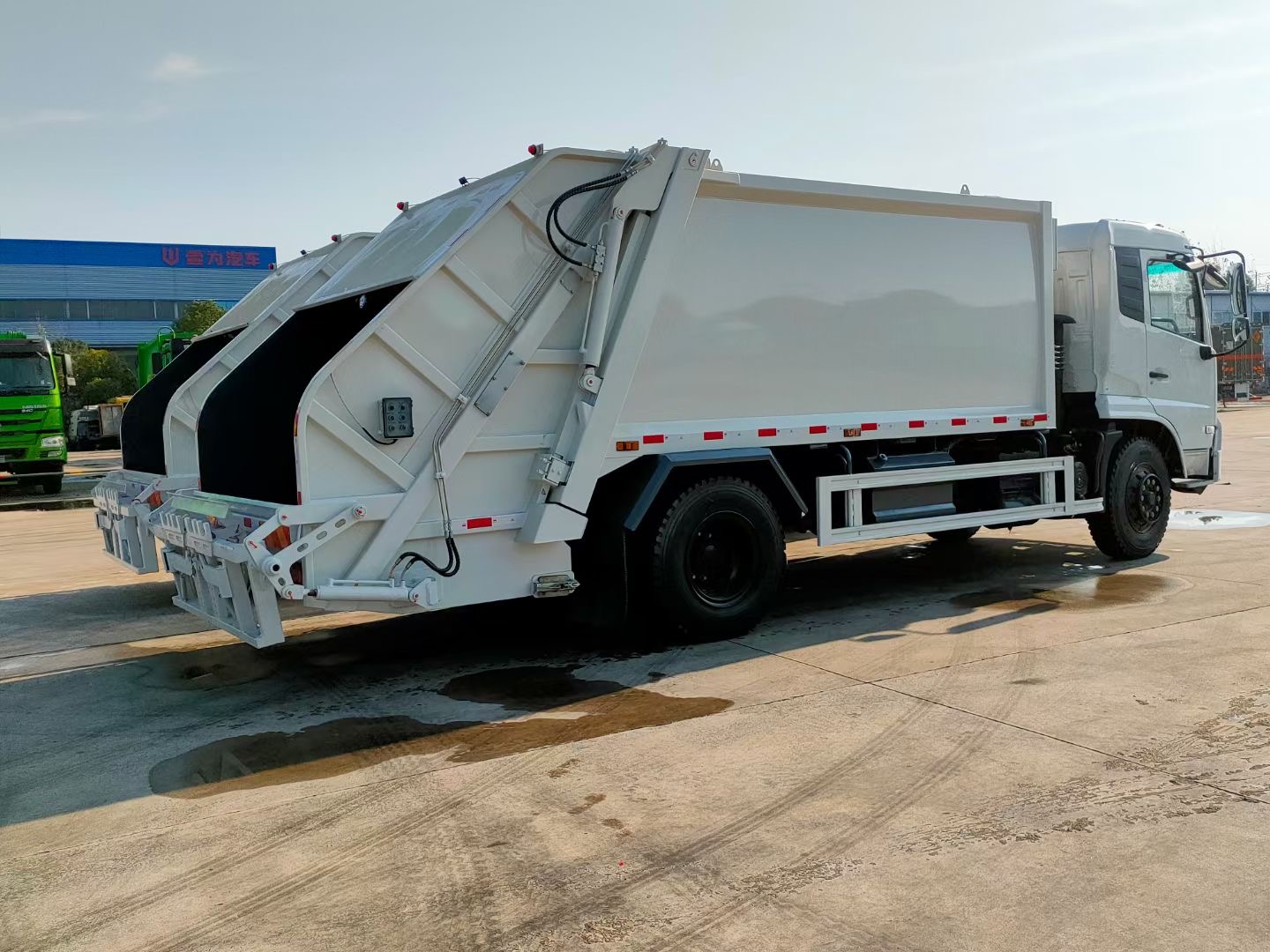

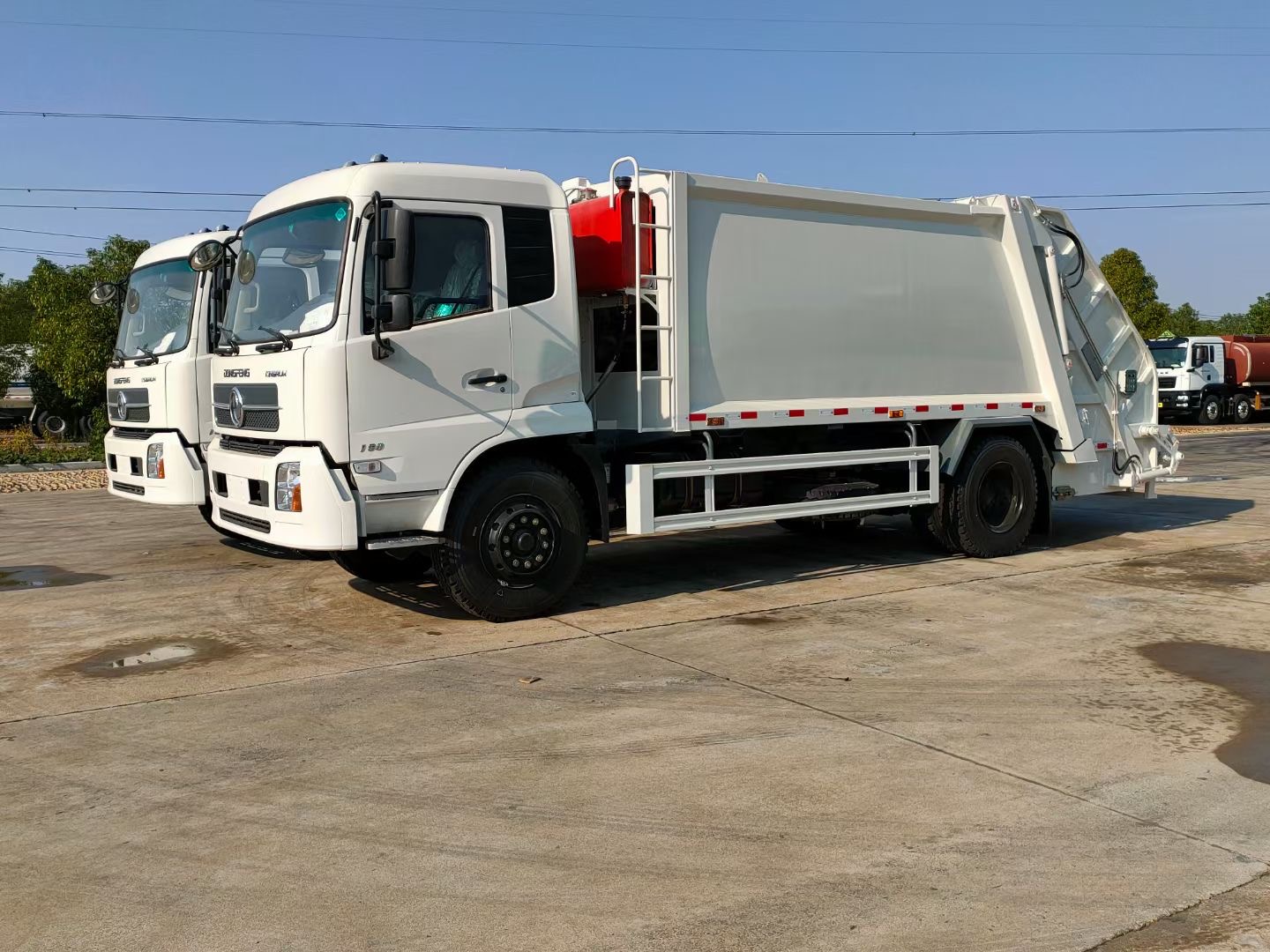

More pictures of DONGFEG rear loader garbage truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
Good price DONGFENG KR refuse garbage compactor truck for sale
high quality 15cbm compacted garbage truck dongfeng brand new for Africa
Best price dongfeng compression garbage truck for sale
Main technical parameters of DONGFENG KR refuse garbage compactor truck is as below.
| 1 | Truck model | Dongfeng brand garbage compactor truck for sale(15cbm) |
| 2 | Truck chassis model | DF. 1160 |
| 3 | Engine model | B190 33 |
| 4 | Engine power | 190hp/140kw |
| 5 | Engine displacement | 5900 |
| 6 | Engine brand | Cummins |
| 7 | Engine emission standard | Euro 3 |
| 8 | Truck wheelbase | 4500mm/5000mm |
| 9 | Wastes van volume | 15m3 |
| 10 | Fuel type | Diesel |
| 11 | Wastes hopper lifting angle | ≥45° |
| 12 | Loading and discharging way | Overturning hopper/wastes bins mechanism |
| 13 | compacting way | Bi-directional compression; wastes compacting density≥0.8T/m³ |
| 14 | one working circle time for loading (s) | ≤22 |
| 15 | one working circle time for discharging (s) | ≤30 |
| 16 | Overall dimension(L*W*H) (mm) | 8470×2490×3250 |
| 17 | Curb mass（kgs） | 9805 |
| 18 | max compressing force | ≥150KN, |
| 19 | Color | Different color upon request |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
