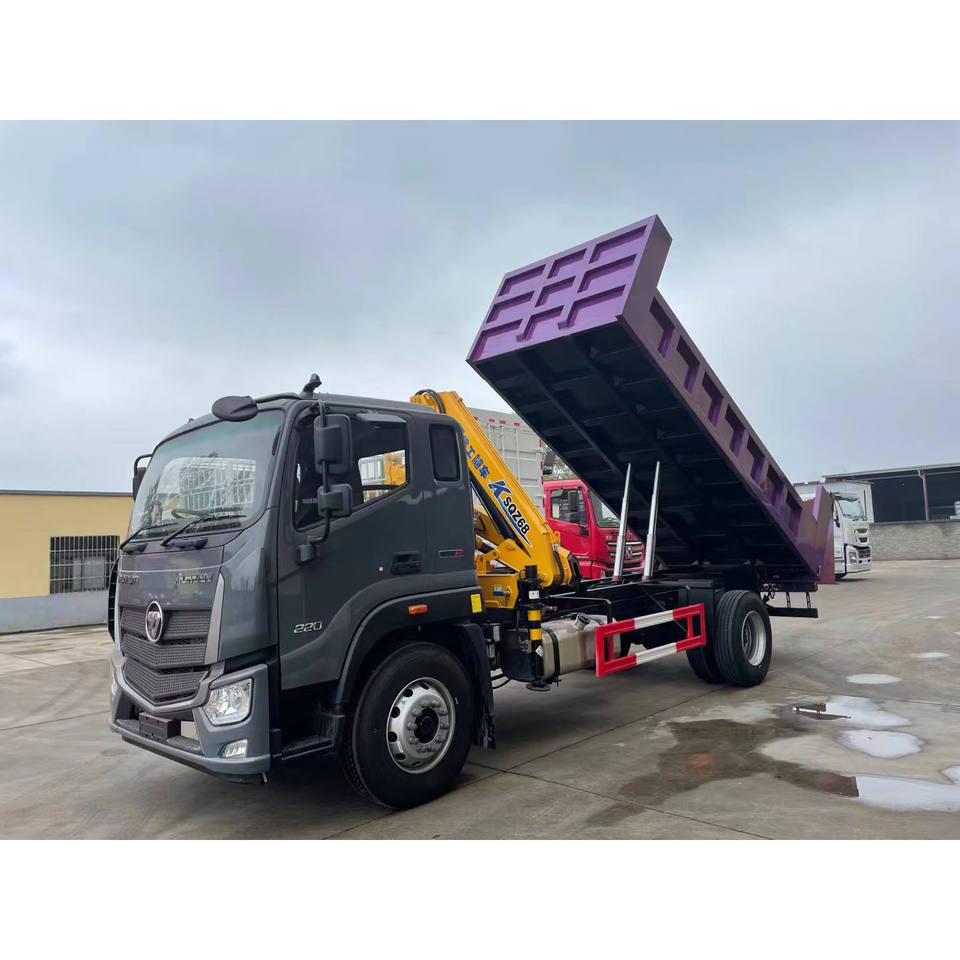

BRAND New FOTON AUMAN 4*2 dump truck with crane boom for sale
FOTON AUMAN 4*2 knuckle boom on dump truck for sale
FOTON AUMAN EST-M one row and a half driver cab,
4*2 RHD, LHD Optional
5150mm wheelbase
YC6A240-33 yuchai 177KW/240hp diesel engine,
8JS105TA FAST 8+1 gears, manual type
11R22.5 tires
Overall dimension(L*W*H): ,8165×2490×2900mm
Dump tipper box dimension(L*W*H): 4500*2300*800mm
Clients choose to install high quality Chinamade 3.2T/4t/5T knuckle or telescopic crane boom.
More pictures FOTON AUMARK knuckle boom dump truck is as below.
Main technical parameters of FOTON AUMARK 4*2 dump tipper truck with knuckle crane boom is as below.
| Product name | FOTON AUMAN 4*2 dump truck with crane boom for sale | |
| Chassis type | BJ1188 | |
| Parameters | Overall dimension length/width/height (mm) | 8165×2490×2900mm |
| Cargo body dimension (L*W*H)(mm) | 4500*2300*800mm | |
| GVW(kg) | 18000(Kg) | |
| Kerb Mass(kg) | 9250(Kg) | |
| Approach angle/ Departure angle(mm) | 40/19 (°) | |
| Front suspension/rear suspension(mm) | 1100/2065 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 80 | |
| Engine | Type | YC6A220-33 |
| Displacement/Power(kw) | 9755ml/162KW/240hp | |
| Manufacturer | YUCHAI | |
| Chassis | Drive Type | 4*2 |
| Wheelbase(mm) | 5150 | |
| Tread(front) | 3050 | |
| Tread(rear) | 1820 | |
| Rear axle | 10tons rear axle | |
| Transmission | 8 speed gearbox, manual | |
| Tire Type | 11R22.5 | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 4500*2300*800mm |
| Material | Carbon steel | |
| Side sheet thickness | 3mm/6mm thickness | |
| Bottom sheet thickness | 4mm/8mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install Chinamade 3.2tons/4T/5T knuckle/telescopic crane boom | |
| The color of the whole truck is upon request. | ||
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
