heavy duty good quality ISUZU compacted garbage truck 14cbm for sale
2023-11-23 21:41:57   source:www.trucksinchina.com     clicks :

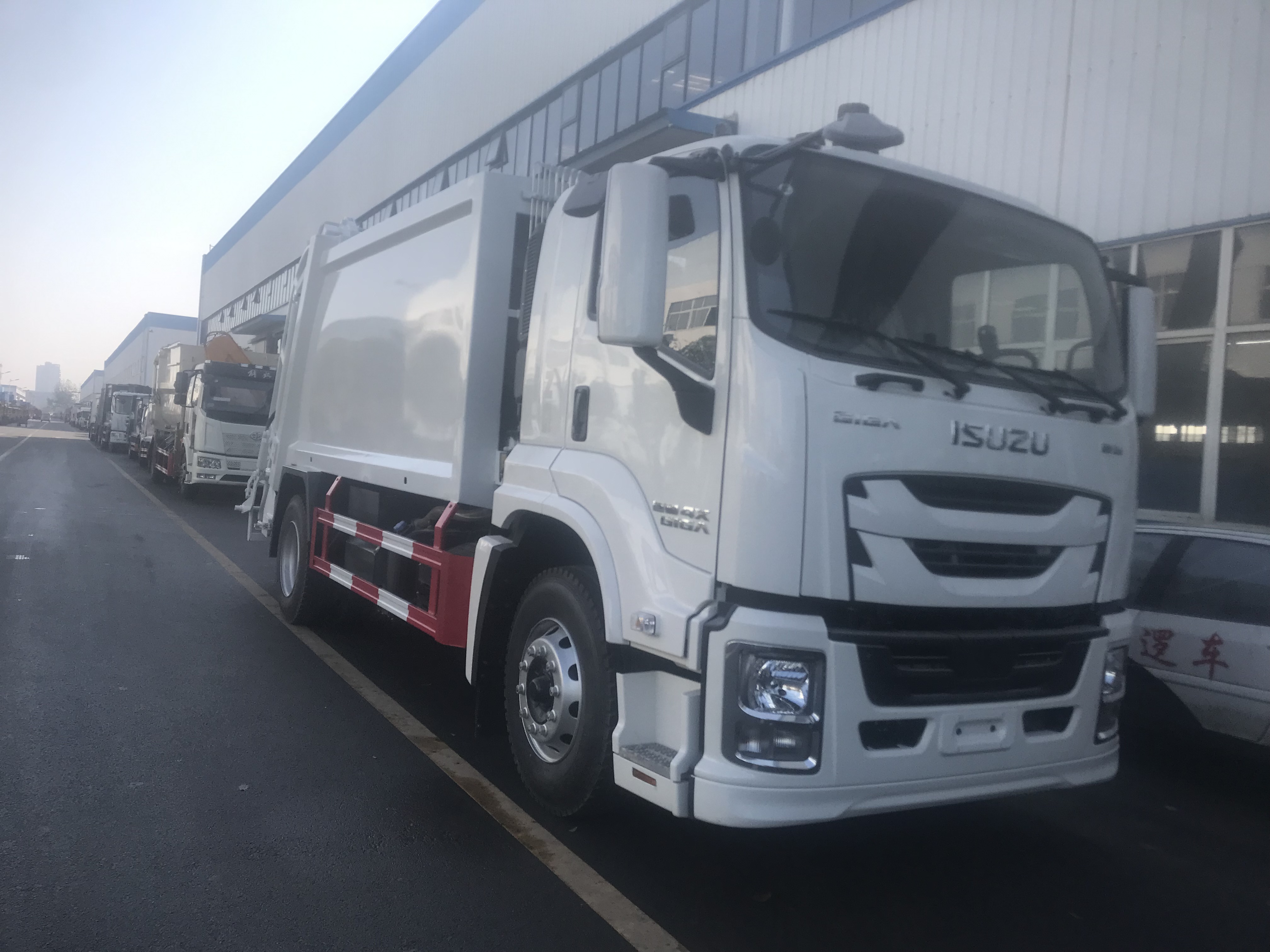

HOT SALE! ISUZU GIGA 4*2 heavy duty compacted garbage truck 14cbm for sale
ISUZU VC61 heavy duty one row and a half driver cab
4*2 LHD, RHD optional
ISUZU 6UZ1-TCG61 ISUZU 380hp diesel engine,
295/80R22.5 18PR*6+1 spare
ZF 8+1 gears, manual type
Air conditioner, power steering, central locks, electric windows and doors, ABS, air cut braking, power steering, etc.

The volume of the compactor garbage van is 14m3,and with the wastes loading capacity of about 6tons. THe wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.

Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.

More pictures of  14cbm compacted garbage truck ISUZU brand is as below.

HOT SALE! good quality ISUZU brand compacted garbage truck for sale

competitive price 14cbm compacted garbage truck ISUZU for sale
 main technical parameters of ISUZU brand compacted garbage truck is as below.

1Truck modelISUZU brand garbage compactor truck for sale(14cbm)
2Truck chassis modelQL1180
 3Engine model 6UZ1-TCG61
4Engine power380hp
5Engine displacement9839
6Engine brandWeichai
7Engine emission standardEuro 6
8Truck wheelbase4600(mm)
9Wastes van volume14m3
10Fuel typeDiesel
11Wastes hopper lifting angle≥45°
12Loading and discharging wayOverturning hopper/wastes bins mechanism
13compacting wayBi-directional compression; wastes compacting density≥0.8T/m³
14one working circle time for loading (s)≤22
15one working circle time for discharging (s)≤30
16Overall dimension(L*W*H) (mm)8915×2545×3380 (mm)
17Curb mass(kgs)12870
18max compressing force≥150KN,
19ColorDifferent color upon request


 CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
