HOT SALE! FAW brand 4*2 LHD 8cbm compacted garbage truck for sale

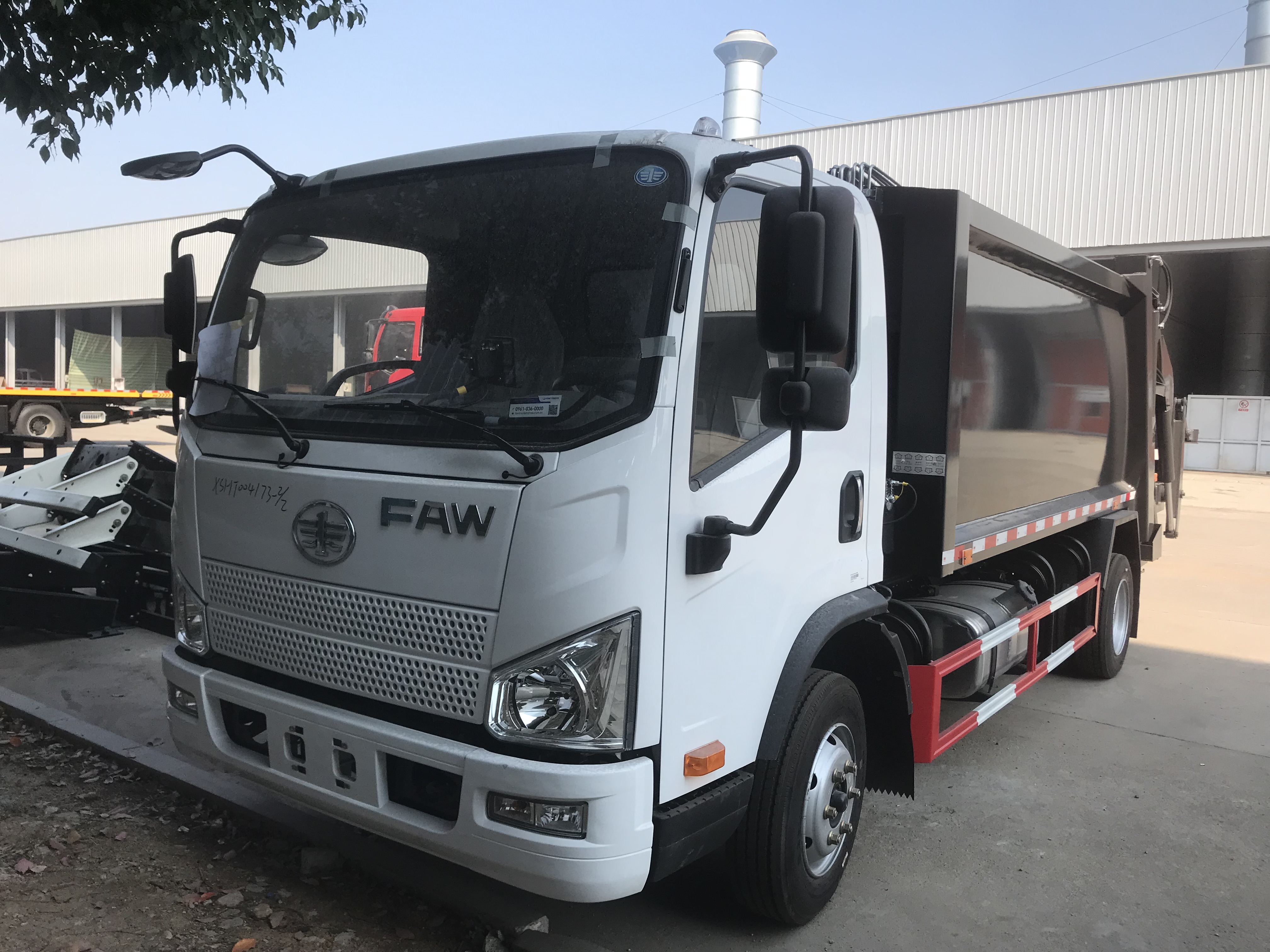

More pictures of FAW brand TIGER VH garbage compacted truck is as below.
HOT SALE!8cbm-9cbm refuse garbage compactor truck FAW
Good price FAW brand compressed garbage truck for sale
FAW TIGER VH flathead single row driver cab,
4*2 LHD,
YC4D130-33 yuchai 130hp diesel 96KW/130Hp/4214ml displacement diesel engine, Euro 3 emission standard
6 forward gears with 1 reverse gear, manual type
3.5T front axle/9T rear axle
3860mm wheelbase,
8.25R16 tires*6+1 spare
110L oil tanker+ air conditioner+air cut braking+ maintain-free storage batteries, etc.
The volume of the garbage compactor truck is 8cubic meters.
1 | Product name | FAW brand 8cbm garbage compactor truck |
| 2 | Truck chassis model | CA |
| 3 | Overall dimension(L*W*H) | 7330×2300×2700 |
| 4 | Total mass(kgs) | 11995 |
| 5 | Curb mass(kgs) | 6500 |
| 6 | Rated mass(kgs) | 5300 |
| 7 | Volume | 8m3 |
| 8 | Real loading capacity | About 6,000kgs |
| 9 | Max speed | 100kw/h |
| 10 | Wheelbase | 3800 |
| 11 | Axle nos. | 2 |
| 12 | Driver cab | FAW TIGER VH flathead single row driver cab, |
| 13 | Approach/departure angle(°) | 20/14 |
| 14 | Front/rear suspension (mm) | 1155/2075 |
| 15 | Front/rear tread(mm) | 1738/1740 |
| 16 | Tire specification | 8.25R20/16PR （6+1） |
| 17 | Steel Spring | 7/10+3 |
| 18 | Engine model | YC4D130-33 |
| 19 | Rated power | 96KW/130hp |
| 20 | Displacement(ml) | 4.214 L |
| 21 | Fuel type | Diesel |
| 22 | Emission standard | Euro 3 |
| 23 | Gearbox | 6T115 6 forward gears with 1 reverse gear, manual type |
| 24 | Color | Different color upon request |
| 25 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 26 | Wastes van material | High quality China standard light duty steel |
| 27 | Operation way | PLC control way |
| 28 | Loading and discharging way | Rear overturning mechanism |
| 29 | Compacted way | Bi-directional compression |
| 30 | Wastes compacting density | ≥0.8tons/m3 |
| 31 | One working circle time for loading and discharging | ≤30s |
| 32 | Max compressing force | ≥150KN |
| 35 | Max passing force | ≥180KN |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
