SHACMAN brand 8*4 RHD DUMP TRUCK for Uganda
SHACMAN brand 8*4 RHD dump truck
SHACMAN H3000 strengthen 8*4 dump truck chassis,
8*4 RHD, LHD optional
WP110.380E22 weichai 38hp diesel engine, Euro 2 emission standard
10JSD180+QH50 fastgear 10 speed manual gears, 10 forward gears with 2 reverse gears, manual type
MAN 9.5T front axle/MAN 16T rear axles
1800+3575+1400mm wheelbase
300L aluminum alloy oil tanker
12.00R20*12+1 spare
10223,10423×2490×3450
7400,7600×2300×1110

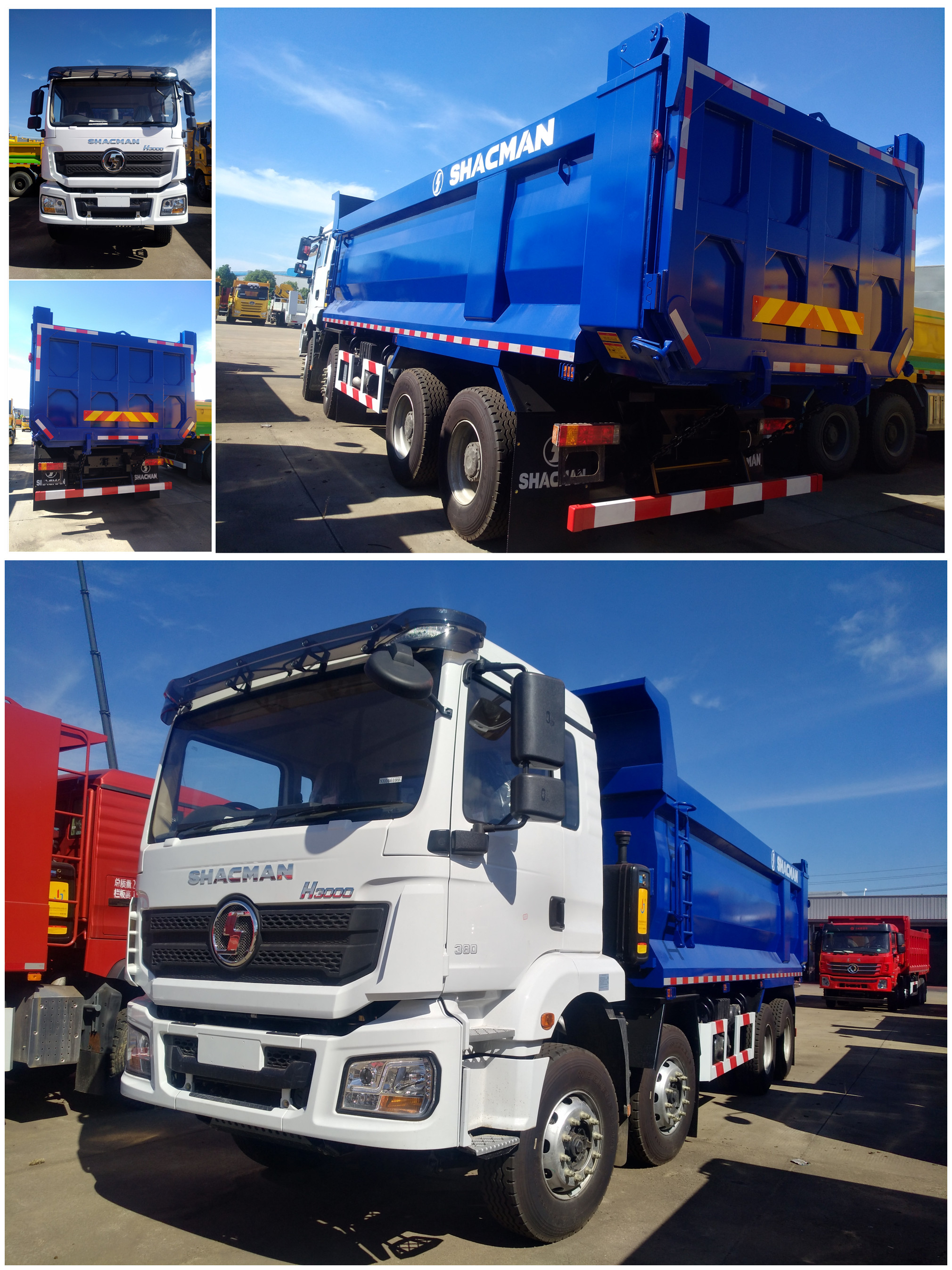

More pictures of SHACMAN H3000 8*4 RHD dump tipper truck is as below
Main technical parameters of SHACMAN brand H3000 8*4 RHD dump tipper truck is as below
Items | Descriptions | Specifications and Types |
General | Truck Name | SHACMAN 8*4 RHD dump truck for sale |
Drive Type | 8*4, LHD | |
Loading capacity | 30,000KGS-40,000kgs | |
Gross Vehicle Weight(kg) | 31000(Kg) | |
Rated weight(kgs) | 16025(Kg) | |
CurbWeight (kg) | 14780(Kg) | |
Overall Dimensions L*W*H(mm) | 10223,10423×2490×3450 (mm) | |
Dump tipper box dimension(L*W*H) | 7400,7600×2300×1110(mm) | |
Engine | Engine Model | WP110.380E22 |
Fuel Type | Diesel | |
Power | 280KW/380HP | |
Emission Standard | Euro II | |
Displacement(ml) | 9726 | |
Chassis | Chassis Brand | SHACMAN |
Drive type | 8*4 RHD | |
Front/Rear Axle Load(KG) | 6500/6500/18000 | |
Tire No. | 12 | |
Tire Specification | 12.00R20 rail tires | |
Wheelbase (mm) | 1800+3575+1400 | |
Axle No. loading capacity | MAN 9.5T front axle/MAN 16T rear axles | |
Gear Box | 10JSD180+QH50 fastgear 10 speed manual gears, 10 forward gears with 2 reverse gears, manual type | |
Brake | Air brake | |
Air Conditional | Yes, original air conditioner, | |
Front/rear suspension(mm) | 1525/1710(mm) | |
Leaf Spring No. | 10/12 | |
Driver cab | H3000 Standard roof cabin with A/C | |
Tipping system | Box inner dimension(mm) | 7400,7600×2300×1110 |
Box material | Q345 Carbon steel,side 6mm,bottom 8mm | |
Dump box body shape | Rectangular box shape | |
Hydraulic cylinder no.(set) | Single one | |
Hydraulic cylinder position | Front installed hydraulic cylinder #180 | |
Discharge type | Rear tipping | |
Remark | Clients choose to install top mounted hydraulic environmental protection cover. |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck, HOWO dump truck, ISUZU tipper truck, FAW dump tipper, North Benz dump truck, tipper trailer, etc. 4*2 dump truck, 4*4 dump truck, 6*4 tipper truck, 8*4 dump truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
