HOT SALE! Customized 12T SHACMAN brand 6*4 RHD knukcle boom truck mounted crane for sale
With about one month' production, we have finished one unit of SHACMAN brand 6*4 RHD knuckle crane boom mounted on cargo truck customized for African clients.

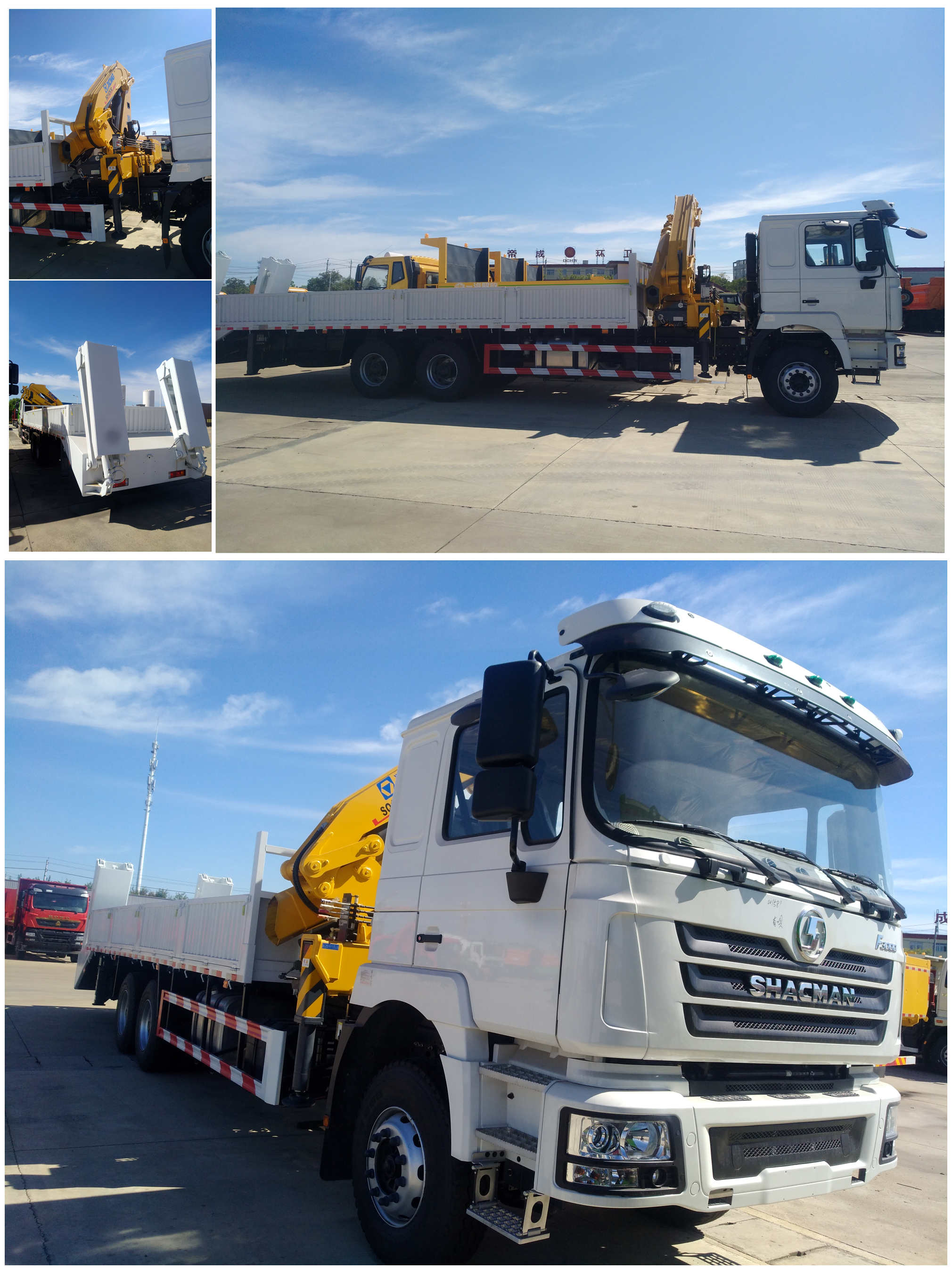

Look at the finished pictures of 12T SHACMAN 6*4 truck mounted crane is as below.
Customized SHACMAN brand 6*4 RHD knuckle crane boom mounted truck for sale
Customized SHACMAN brand 6*4 RHD 12T telescopic crane boom mounted on cargo truck for sale, adopts SHACMAN brand 6*4 RHD one row and a half driver cab, 5775+1400mm wheelbase, WP10.340E22 weichai 340hp Euro 2 diesel engine, RTD-11509C 9 speed manual gearbox, MAN 7.5T front axle/MAN 16T dual-grade double rear axles, 400L aluminum alloy material oil tanker, 12.00R20 rail tires, etc.
Client choose to install 12T XCMG brand knuckle crane boom mounted on cargo truck. And installed rear ladder at the rear doors of the cargo body as the picture for the vehicle ladding easily.
The specification of SHACMAN brand 6*4 LHD 10tons telescopic crane boom mounted on truck as below
| Product name | SHACMAN brand 8*4 LHD 12tons telescopic crane boom mounted on cargo truck for sale | |
| Chassis type | SX1255 | |
| Parameters | Overall dimension length/width/height (mm) | 11750×2500×3720,3500 |
| Cargo body dimension (L*W*H)(mm) | 8200,8000×2300,2450×800 | |
| GVW(kg) | 25000 (Kg) | |
| curb Mass(kg) | 13000(Kg) | |
| Rated mass(kg) | 11870 (Kg) | |
| Approach angle/ Departure angle(mm) | 16/11(°) | |
| Front suspension/rear suspension(mm) | 1525/3250 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | WP10.340E22 |
| Displacement/Power(kw) | 9726ml/250KW/340hp | |
| Manufacturer | WEICHAI | |
| Chassis | Drive Type | 6*4 |
| Wheelbase(mm) | 5775+1400mm | |
| Tread(front/rear) | 2036, 1860/1860 (mm) | |
| Transmission | RTD-11509C 9 speed manual gearbox | |
| Cab | SHACMAN H3000 luxurious driver cab | |
| Number of spring axle(front/rear) | 4/4 | |
| Tire Type | 12.00R20 | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8200,8000x2300, 2450x600 |
| Material | Carbon steel | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install XCMG brand 12T 4 sections telescopic crane boom | |
| Lifting height | 14.5m | |
| Working radius | 12.9m | |
| Crane boom | Full hydraulic, full rotation, aerial working seat, auto- retract hook hanger, | |
| The color of the whole truck is upon request. | ||
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
