JMC Brand telescopic boom overhead working truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of aerial working truck in China since 2004s. With many years’expericne in producing, Chengli Special Automobile Co., could produce and sell 12-14m aerial working platform truck, 14-16m overhead working truck, 16-20m high altitude operation truck, 20-22m hydraulic aeria lifter vehicle, etc. And we Chengli Special Automobile Co., Ltd. could sell ISUZU aerial working platform truck, Dongfeng high altitude operation truck, JMC overhead woking truck, forland high altitude operation truck, JAC aerial working platform truck, etc. And in 2017s, we can customiz telescopic aerial working trucks. More information, please feel free to contact with Ms. Anita Deng. And the aeiral working platform truck hot sale line is +86 13329899995.
main technical parameters of JMC 20m aerial working platform truck as below
| JMC brand 20m telescopic aerial working truck for sale Main technical parameters of 20m JMC telescopic aerial working truck | |||
| Category | Item | Unit | Numbers. |
| Dimension | Overall length | mm | 7240 |
| Overall width | mm | 2150 | |
| Overall height | mm | 3100 | |
| Mass | Seated person(included driver) | Person | 3 |
| Total mass | Kgs | 7605 | |
| Main parameters | Rated loading capacity of the working platform | Kg | 200 |
| Max working height | m | 20 | |
| Working range at the max working height | m | 4 | |
| Max working range | m | 12 | |
| Working height at the max working range | m | 4.5 | |
| Outrigger span | Horizontal | 4000mm | |
| Longitudinal | 4000mm | ||
| Driving parameters | Front suspension | Mm | 1155 |
| Rear suspension | Mm | 2270 | |
| Rear extension | Mm | - | |
| Wheelbase | Mm | 3815 | |
| Max speed | KM/H | 100 | |
| Approach angle | ° | 20 | |
| Departure angle | ° | 12 | |
Main devices of CHENGLI JMC 20m telescopic aerial working platform truck as below
| Item | Remark |
| Truck chassis | JMC brand 4*2 LHD truck chassis |
| Engine | JMC diesel engine, 112KW, |
| Driver cab | JMC single row driver cab of 3 seats, with original air conditioner |
| PTO system | mechanical operation |
| Working platform | 1000*650*1200 |
| Boom type | 4 sections hexagon(16m, 18m, 20m) or 3 sections hexagon (12m, 14m) working boom, |
| Rotation device | 360 degree full rotation |
| Outriggers | Front outrigger with X type, and the rear with H type, adjusted separately. |
| Operation way | Working platform and ground ,choose remote operation |
| Control system | Electro-hydraulic proportional control system |
| leveling system | Hydraulic automatic leveling |

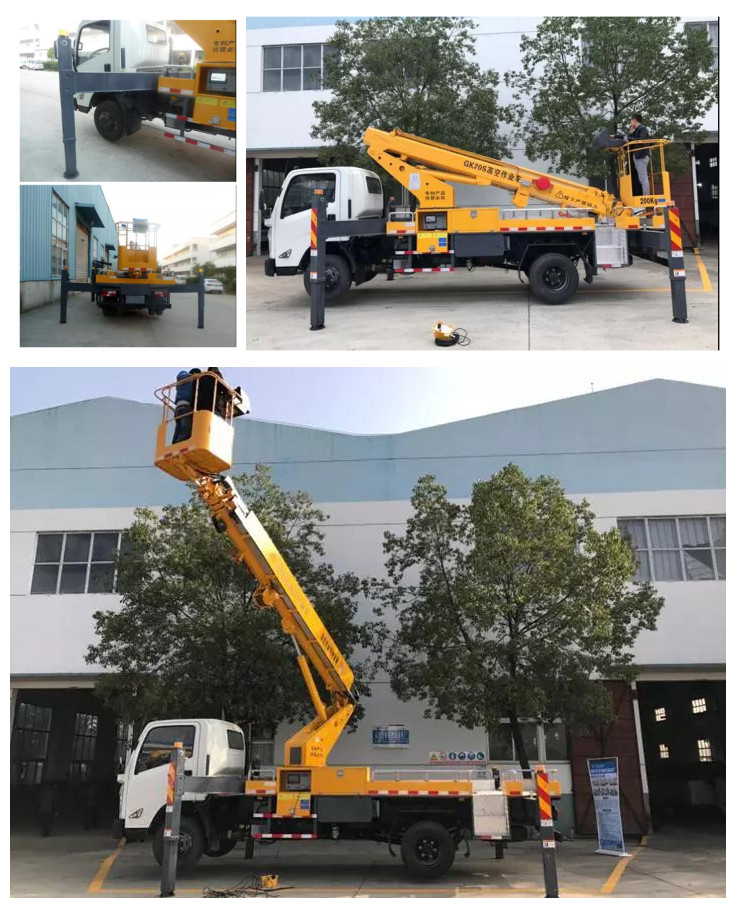

More pictures of JMC 20m telescopic aerial working truck as below
customized JMC 20m telescopic aerial working truck for sale
The telescopic aerial working truck is also called straight boom aerial working truck. We can customize 12m-20m telescopic high altitude operation trucks
Both manual operation and electronic operation system are ok, adopting front-rear H shape hydraulic outriggers with long span and good stability. The outriggers can be adjusted separately.
The telescopic aerial working truck is mainly used for installation-maintenance and climbing operations for municipal administration, electronic power, street lamps, advertisements, communications, photograph, landscape architecture, shipbuilding, traffic, airports/ports, emergency rescue, big size industrial and mining establishments, etc.
