HOT SALE! dongfeng 4*2 LHD 12m3-14m3 water tank truck customized for Senegal
Water truck is also called spray truck, multifunction watering truck, landscaping watering truck, water tanker, water wagon etc., widely used in road rinsing, landscaping etc., It possess multi features such as watering, dust suppression, spraying pesticide, cleaning rail, drain, carrying water, emergency fire fighting, etc.
dongfeng 153 12-14m3 water truck, adopts dongfeng 153 original chassis, 4*2 driving type, flathead one row and a sleeper driver cab, 4500mm wheelbase, Cummins B190hp(6 cylinders) inter-cooling diesel engine, 6 speed transmission or 8 speed gearbox, 10.00-20 nylon tyre, with power steering, etc.

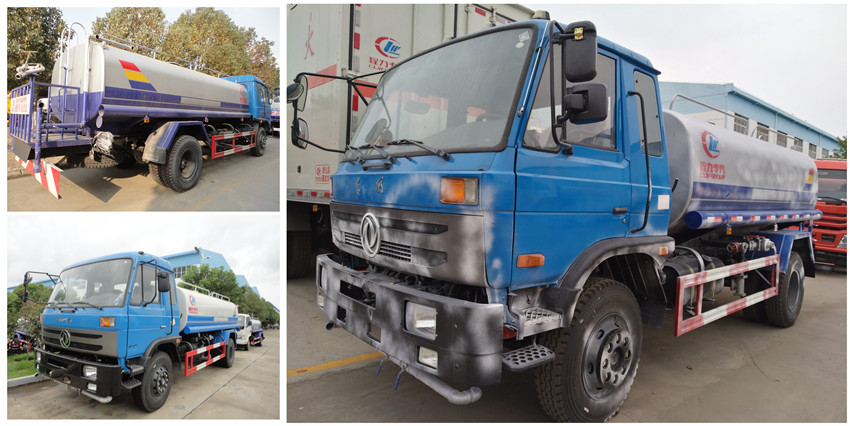

More pictures of Dongfeng 153 12m3-14m3 water tank truck as below
Customized dongfeng 12-14m3 water tank truck for Senegal
main technical parameters of dongfeng 153 4*2 LHD 12m3-14m3 water tank truck manufactured by Chengli Special Automobile Co., Ltd. as below
| 1 | Chassis model | dongfeng truck chassis |
| 2 | Engine model | B190 33 |
| 3 | Engine power | 140KW/190hp |
| 4 | displacement | 5900CC |
| 5 | Max speed | 80kw/h |
| 6 | Mining turning diameter | 18m |
| 7 | Max Climb gradient | 25﹪ |
| 8 | Wheelbase | 4500（mm） |
| 9 | Curb mass | 7005Kg |
| 10 | Tank volume | 12m3-14m3 |
| 11 | Water pump model | 60-90（CLW brand） |
| 12 | Water pump flow | 60m3/h |
| 13 | Water pump delivery head | 90m |
| 14 | Tank volume | 12m3-14m3 |
| 15 | Max watering width(front sprinkling) | ≥25m（360 degree adjustable, double front spraying nozzles） |
| 16 | Max watering width(rear sprinkling) | ≥20m |
| 17 | Max watering width(side sprinkling) | ≥20m |
| 18 | Water cannon water range | ≥35m |
| 19 | Water pump type | Self-sucking |
| 20 | Self-sucking height | ≥7m |
| Overall dimension(L*W*H)： 8200*2480*3050 | ||
CLW5140GSS3 water truck, refits on the second type truck chassis EQ1141KJ. Water truck is made up of water tank and pump drainaging system.
1, tank, adopts high quality 4mm thickness hot rolled plate, and the double head ends with 5mm hot rolled plates. There is two units of anti-wave plates inside the tank. In order to last the using life, the water tank is with Phosphating coating treatment, and also painted with anticorrosive varnish.
2, Pump drainaging system, chooses Japan technical CLW brand 60-90 model water pump. And the PTO choose to install dongfeng 145 special PTO; the valves choose the high quality CLW brand aluminum alloy ball valves; the pipeline adopts high quality perfect galvanized pipes, etc.
The quality and functions of water trucks
Front spraying: fitted with 360° rotatable straight nozzles controlled by driver cab. The flush width can reach ＞15m.
Rear sprinkling, fitted with 2 rear spraying devices, mainly used to clean the road, make the road clear. When spraying as fan-shaped, the spraying width can reach ＞25m.
High spraying: working platform equipped with water cannon, the spraying range can reach 28m, the water cannon can adjust to heavy rain, moderate rain, drizzle or mist, etc. mainly used for landscaping greening, also sued as fire truck in urgency.
Side sprinkling: install 2 side spraying nozzles behind the truck, mainly used to spray, water, dedusting of the greening, etc.
Self-sucking: install with 2 suction sleeves, one absorber,
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of water tank truck, water tank, water sprinkling truck and portable water truck, etc. in China since 2004s. With many years' experience in manufacturing, Chengli Special Automobile Co., Ltd. could supply 4*2 water truck, 4*4 water tank, 6*4 water truck, 8*4 water tank, 6*6 water tank, etc. And the water trucks brands includes dongfeng water truck, ISUZU water truck, FAW water tank, Foton water truck, Forland mini water truck, Yuejin water truck, HOWO water truck, North Benz water truck, etc. More information, please feel free to contact with Ms. Anita Deng. And the hot sale line is 0086 13329899995.
