One unit of CLWbrand 13m length low-bed trailer customized for client from Zimbabwe is finished. This model of 13m low-bed trailer is with the loading capacity of 70tons. And this kind of low-bed semitrailer equips with dongfeng brand, JAC brand, FAW brand, Foton brand, 6*4 tractor head.

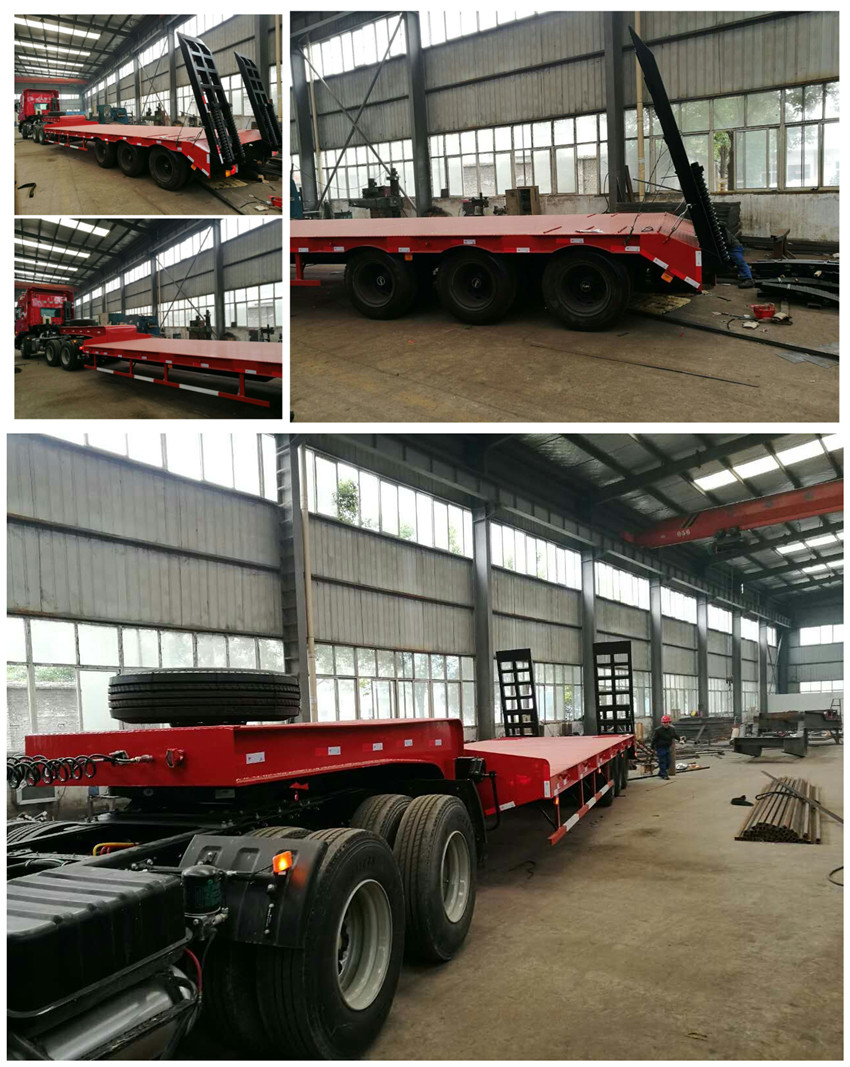

Look at the finished CLW brand 13m low-bed semitrailer customized for Zimbabwe as below
main technical parameters of hot sale CLW brand 13m 70tons low-bed semitrailer manufactured by Chengli Special Automobile Co., Ltd. as below
Total mass(kg) | 40000 | Curb mass(kg) | 9500 |
Rated mass(kg) | 30500 | Chassis model | |
Approach/departure angle(°) | -/23 | front/rear suspension(mm) | -/1520,-/1350 |
Overall dimneison(mm) | 13000,12500,12000X3000X3150, | Cargo body dimension(mm) | XX |
Axle nos. | 3 | Axle load(kgs) | -/24000(triple alxes) |
Vehicle Identification Number(VIN) | LA99D334×××GZJ××× LA99D334×××GZJ××× LA99D334×××LXY××× LB99D334×××LXY××× | ||
Tire specification | 8.25-20 16PR,8.25R20 16PR | Tire nos. | 12 |
Front tread(mm) | - | Rear tread(mm) | 2160/2160/2160,2180/2180/2180,2050/2050/2050 |
Wheelbase(mm) | 8320+1310+1310,7880+1310+1310,7580+1310+1310 | Steel spring | -/10/10/10,-/8/8/8,-/4/4/4 |
Remark |
This lowbed trailer can choose lowbed trailer without rear ladder; the height is 1710mm without rear ladder; |
The length of the low-bed is 13m, and the overall dimension (L*W*H) of the low bed trailer is 13000X3000X3150.
