Customized FOTON AUMAN 4*2 LHD 245hp diesel dump trucks for Uruguay
Good quality FOTON brand dump tipper truck, adopts FOTON brand EST-M one row and a half 2200mm driver cab, 5150mm wheelbase, ISDe245 30 Cummins 245hp Euro 3 diesel engine, 8JS118TA-B fastgear 8 speed manual gearbox, 4.2T front axle/9T rear axle, manual air conditioner, 11R22.5 tires, 200L oil tanker, central controlled locks and electric doors and windows, etc.
The overall dimension(L*W*H) of FOTON dump tipper truck is 8960×2300,2400×2740(mm); while the dimension(L*W*H) of the tipper box body is 6600×2170,2270×600,800(mm).

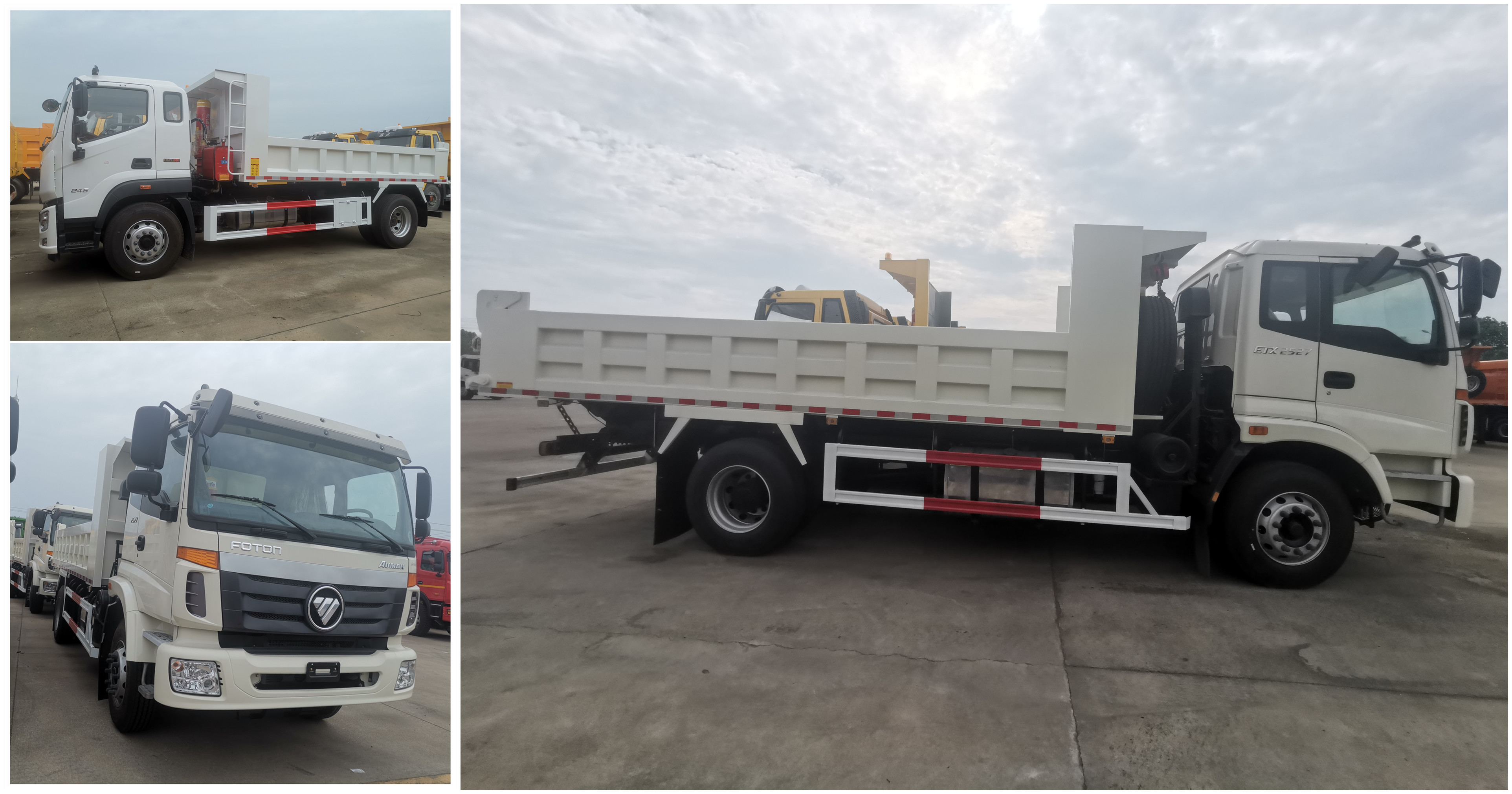

More pictures of FOTON AUMAN EST dump tipper truck is as below.
HOT SALE! Customized FOTON AUMAN 4*2 Euro 5 diesel dump tipper truck for Uruguay
Main technical parameters of FOTON EST-M dump tipper truck is as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | FOTON EST-M dump tipper truck for sale |
| Drive Type | 4*2 LHD | |
| Loading capacity | About 10T-15T | |
| Gross Vehicle Weight(kg) | 16000KGS | |
| Curb Weight (kg) | 7615kgs | |
| Overall Dimensions L*W*H(mm) | 8960×2300,2400×2740(mm) | |
| Tipper box dimension(L*W*H)(mm) | 6600×2170,2270×600,800( | |
| Engine | Engine Model | ISDe245 30 |
| Fuel Type | Diesel | |
| Power | 180kw/245HP | |
| Emission Standard | Euro3 | |
| Displacement(ml) | 6700 | |
| Engine Type | 6 cylinders in line, common-rail SCR | |
| Chassis | Chassis Brand | Foton |
| Front/Rear Axle Load(KG) | 5600/10600 | |
| Tire No. | 6+1 | |
| Tire Specification | 11R22.5 | |
| Wheelbase (mm) | 5150 | |
| Axle No. | 2 | |
| Gear Box | 8JS118TA-B fastgear 8 speed manual gearbox | |
| Front/rear suspension(mm) | 1260/1600 | |
| Front/rear tread(mm) | 1759/1728 | |
| Leaf Spring No. | 10/12+9 | |
| Driver cab | FOTON EST-M one row and a half flathead driver cab, | |
| Tipping system | Box inner dimension(mm) | 6600×2170,2270×600,800(mm) |
| Box material | Carbon steel, Side: 3mm; 4mm;6mm; Bottom: 4mm;6mm;8mm | |
| Hydraulic cylinder no.(set) | 1 | |
| Hydraulic cylinder position | One cylinder front part lifting and tipping | |
| Discharge type | Rear tipping |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck, HOWO dump truck, ISUZU tipper truck, FAW dump tipper, North Benz dump truck, tipper trailer, etc. 4*2 dump truck, 4*4 dump truck, 6*4 tipper truck, 8*4 dump truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
