dongfeng 6.3tons telescopic truck with crane customized for Djibouti
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.

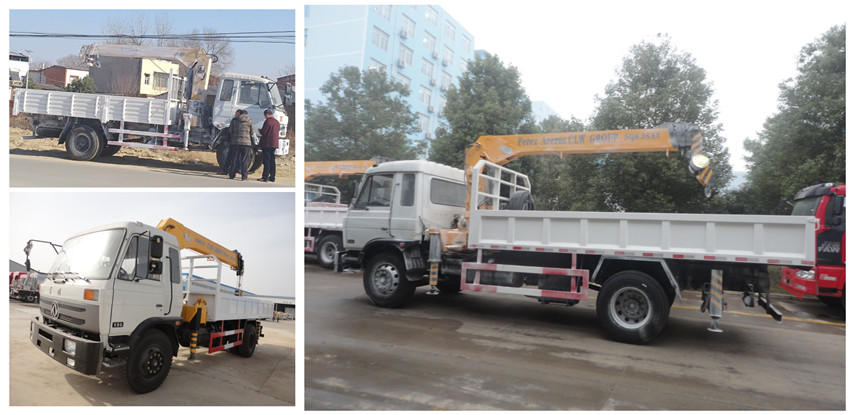

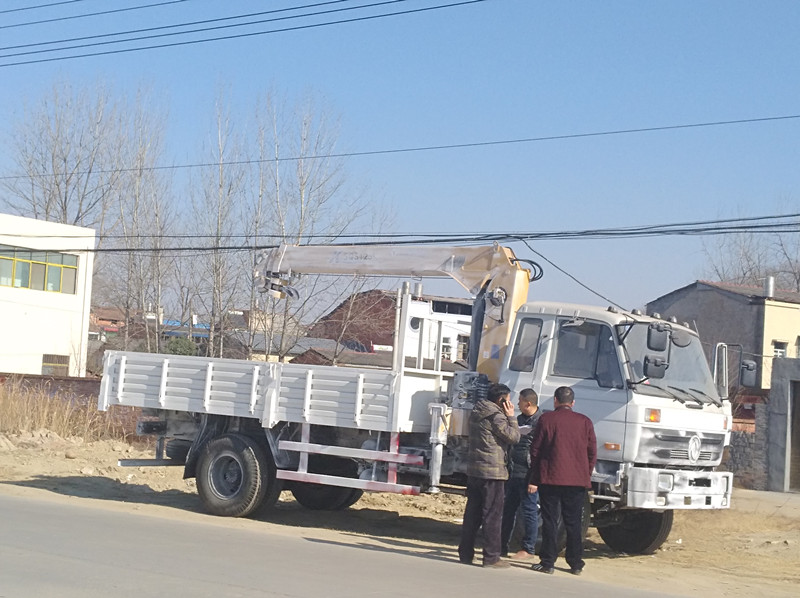

With one month' producing, we finished one unit of dongfeng 4*2 LHD 6.3tons truck with crane for client from Djibouti
customized dongfeng truck with XCMG 6.3tons telescopic boom mounted on truck for sale
HOT SALE! dongfeng truck with crane
main technical parameters of dongfeng 4*2 LHD 190hp diesel 6.3tons telescopic truck with crane manufactured by Chengli Special Automobile Co., Ltd. as below
| Main parameters | ||
| Product name | Dongfeng 4*2 LHD 6.3tons telescopic boom mounted on truck for sale | |
| Overall dimension | Overall dimensions | 9000×2490×3600,3720 |
| Fact Lifting | 10000kg | |
| Gross weight | 15800kg | |
| Curb weight | 8755kg | |
| Payload capacity | 6850kg | |
| Axle load | 5900/9900kg | |
| Axle nos. | 2 | |
| Driving type | 4*2 LHD, RHD is selective | |
| Electronic system | 24V | |
| Tyre specification | 9.00-20 | |
| Nos. of tyre | 6+1 | |
| Wheelbase | 4500mm | |
| Front/Rear track base | 1940/1860(mm) | |
| Front/Rear overhang | 1250/2650mm | |
| Approach/Departure angle | 32/18° | |
| Cargo body | Cargo Box dimensions | 4800×2294×550(mm) |
| Material | High quality carbon steel | |
| Side Thickness | 3mm | |
| Bottom sheet | 4mm | |
| Rear door | open ° | |
| Color | Upon request | |
| Engine | Exhaust/Power | 5900ml/190hp |
| Max speed | 80km/h | |
| Engine model | B190 33 | |
| Emission standard | Euro 3 | |
| Engine type | 6 cylinders in line, inter-cooling diesel engine | |
| Manufacturer | Dongfeng Cummins | |
| Articulated boom | Boom name | 6.3ton articulated boom(SQ6.3ZA2) |
| Max lifting moment of force | 12.6T.m | |
| Max lifting mass | 6300kg | |
| Curb mass | 2120kg | |
| Boom type | Hexagon shape, hydraulic system, extending in order | |
| Boom length | 9.2m | |
| Working radius | 9.2m | |
| Max lifting height | 13 | |
| Max elevation | 75 | |
| Rotation degree | 360 °full rotation | |
| Rotation speed | ≦2.5r/min | |
| Max Outriggers span | 5m | |
| Oil tank volume | 100L | |
| Flow | <63L/min | |
| Outriggers | Double front outriggers | |
| Working ability | Working radius | Lifting mass |
| 2m | 6300kg | |
| 4.45m | 2700kg | |
| 6.35m | 1800kg | |
| 8.2m | 1300kg | |
| 10m | 900kg | |
More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
