Customized FOTON 4*2 mini petrol engine P5 mobile LED screen truck for Philippines
customized FOTON mini petrol engine P5 mobile LED screen truck for sale
HOT SALE! cheaper price petrol engine outdoor colorful digital LED van truck for sale
high quality outdoor LED screen van truck for sale
overall dimension (L*W*H):5100*1710*2640mm
The main technical parameters of FOTON truck head as below
overall dimension (L*W*H):5100*1710*2640mm
FOTON XIANGLING V1 4*2 LHD single row driver cab, 3070mm wheelbase,
DAM15KR dong’an115hp gaoline engine, Euro 6 emission standard
175R14LT 8PR*4 tires,
5 speed manual gearbox, power steering,
Manual glass doors and windows, etc.

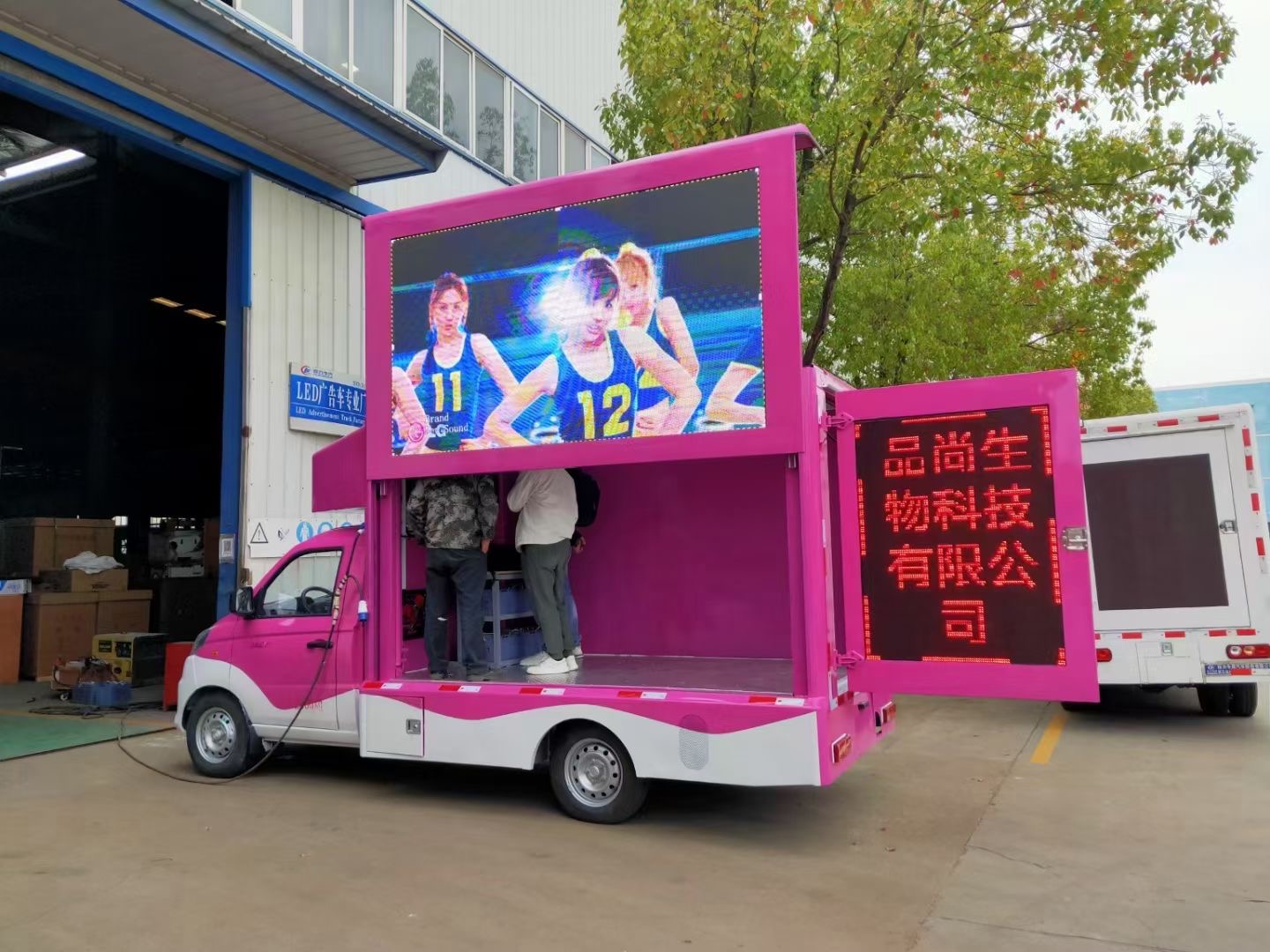

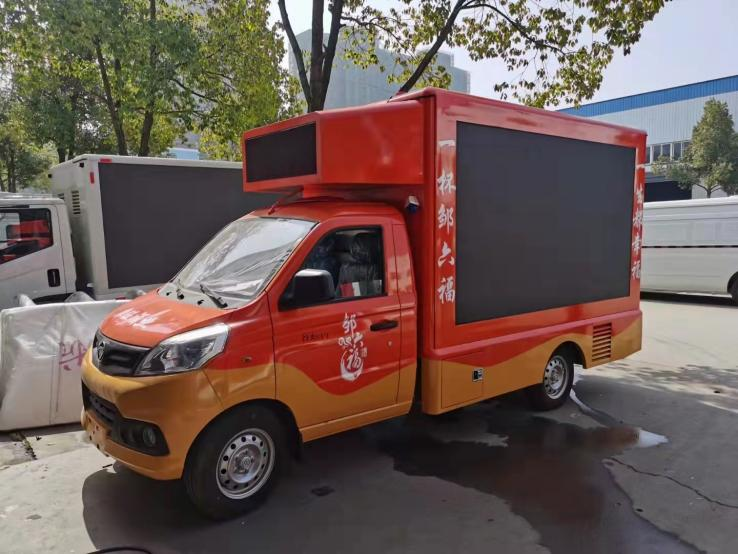

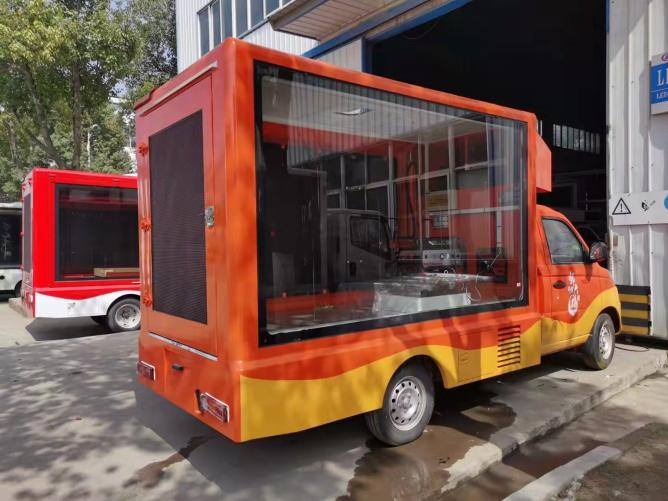

The upper part of the FOTON XIANGLING V1 Mobile LED advertising truck with P4/P5/P6 LED screen as below.
1, LED screen
two sides of the driver cab: outdoor colorful LED screen
P5 Colorful LED screen: 2560*1440mm
front lintel singe red color word screen(P10) dimension(L*W):960*320mm
Rear door single red color word screen(P10) dimension(L*W): 960*1280mm
One side of the LED screen(usually the driver’s side) lifting up-down
2, Power supply system
Gasoline generator unit* 1 set, YIHU brand
Power: 9kw(two sides LED screen);
Internal and external power switching device, 220V mains interface
4, Operation system
Computer: special industrial computer*1 set, mounting type
Control software: Colorlight.
Amplifier: broadcast-grade amplifier, power: 100W.
Waterproof sound column: 2 pieces, power: 20W.
5, Ventilation system
One top ventilation skylight, front louver ventilation design, 2 sets*ventilation fan
6, Car body craft
Carbon steel frame, outer Mongolian cold-rolled steel plate, base layer anti-rust paint, putty, external spray special car paint. The interior of the cabin body is made of glass fiber reinforced plastic, LED lighting in the cabin, and aluminum checkered board on the floor.
The spare parts of the Mobile LED truck:
1*LED color screen, 1*power box, 10*cables, and 30 meters length external wires;
main technical parameters of FOTON petrol engine P5 mobile LED screen advertising truck is as below.
| Main technical parameters | |||
| Product name | mobile Led advertising truck for sale | Overall dimension(L*W*H)(mm) | 5100,5180×1710×2640,2100 |
| Total mass(Kg) | 2545 | Rated mass(Kg) | 195,0 |
| Curb mass(Kg) | 2220,2415 | Seated person | 2 |
| Approach/departure angle(°) | 39/23 | Front/rear suspension(mm) | 605/1425,605/1505 |
| Axle nos. | 2 | wheelbase(mm) | 3070,3170 |
| Axle load(Kg) | 995/1550 | Max speed(Km/h) | 100,110 |
| Truck chassis | |||
| Truck model | BJ1030V4JV5-01 | manufacturer | foton |
| Approach/departure angle(°) | 34/26 | Tire specification | 175R14LT 8PR*4 |
| Steel spring | -/5 | Front tread(mm) | 1338 |
| Fuel type | Gasoline | Rear tread(mm) | 1375,1455 |
| Emission standard | Euro Ⅵ | ||
| Engine model | Manufacturer | displacement(ml) | power(Kw) |
| DAM15KR | Dong’an | 1498 | 85 |
