Dongfeng Tianjin water truck adopts dongfeng Tianjin original chassis, Cummins 6 cylinders 190hp Euro 3 or Euro 4 diesel engine, And the dongfeng water tank volume is 10-12cbm, air-cut brake, exhaust brake, 3.6ton front bridge/9ton rear bridge, with original air-conditioner, etc. And the water tank adopts high quality carbon steel with 5mm thickness, with the functions of front dashing, rear sprinkling, side spraying and water cannon, controlled at the driver cab. CLW water truck equips with one special water sucking pump, fire fighting hose coupling, etc. Welcome customers over all the world to purchase our high quality and competive price water trucks.
main technical parameters of dongfeng tianjin water tanker truck is as below
| Main parameters | Dongfeng Tianjin water truck for sale | |||
| Chassis model | DFL1160 | Water tank volume(m³) | 11-15 | |
| Total mass(kg) | 16000 | Overall dimension(m m) | 8800×2380×2950 | |
| Curb mass(kg) | 6505 | Tank dimension(m m) | 5300×2100×1310 | |
| Rated mass(kg) | 9300 | Wheelbase (m m) | 5000,4700 | |
| Engine parameters | Model | B190 33 | Manufacturer | Cummins |
| Power(hp)/displacement(ml) | 190/5900 | Type | 6 cylinders in line | |
| Oil cunsuption(L/100km) | 15 | Emission standard | Euro 3/Euro 4 | |
| Chassis parameters | Drive type | 4×2 | Front/rear tread(m m) | 1880/1800 |
| Max speed (km/h) | 90 | Front/rear tread(m m) | 1430/2370 | |
| maximum grade ability (。) | 30 | Approach/departure angle(。) | 19/12 | |
| Min ground clearance (m) | Axle load(kg) | 6000/10000 | ||
| Tyre | 9.00-20,10.00-20 | Steel spring | 7/9+6,8/10+8 | |
| Driver cab | D530flathead one row and a half driver cab, | |||
| Front tread | 4.5T | |||
| Rear bridge | 9T | |||
| Transmission | Dongfeng 6 speed DF6S750 | |||
| Braking | Air braking | |||
| Chosen part | ||||
| Special device | Axle Power | 9.25kw | Alxe working speed | 1450circle/mins |
| Flow | 60cbm/h | Water sprinkling width | ≤14m | |
| Self-sucking height | ≤6.5m | Self-sucking time | ＜8m | |
| Water cannon rang(column) | ＜30m | Water cannon range | ＜18m | |
| Water cannon head | ＜90m | Water pump type | Self-sucking centrifugal | |
| Water pump model | Weilong 80QZB-60/90 | Tank material | 5mm carbon steel | |
More pictures of dongfeng Tianjin water trucks

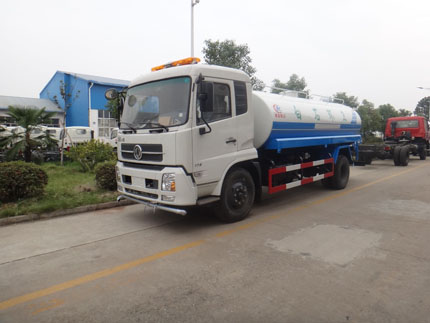

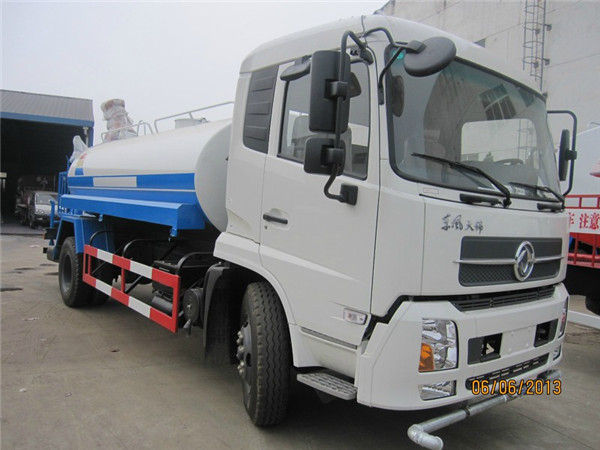

Dongfeng Tianjin water truck
Dongfeng Tianjin water truck with pestcide spraying device

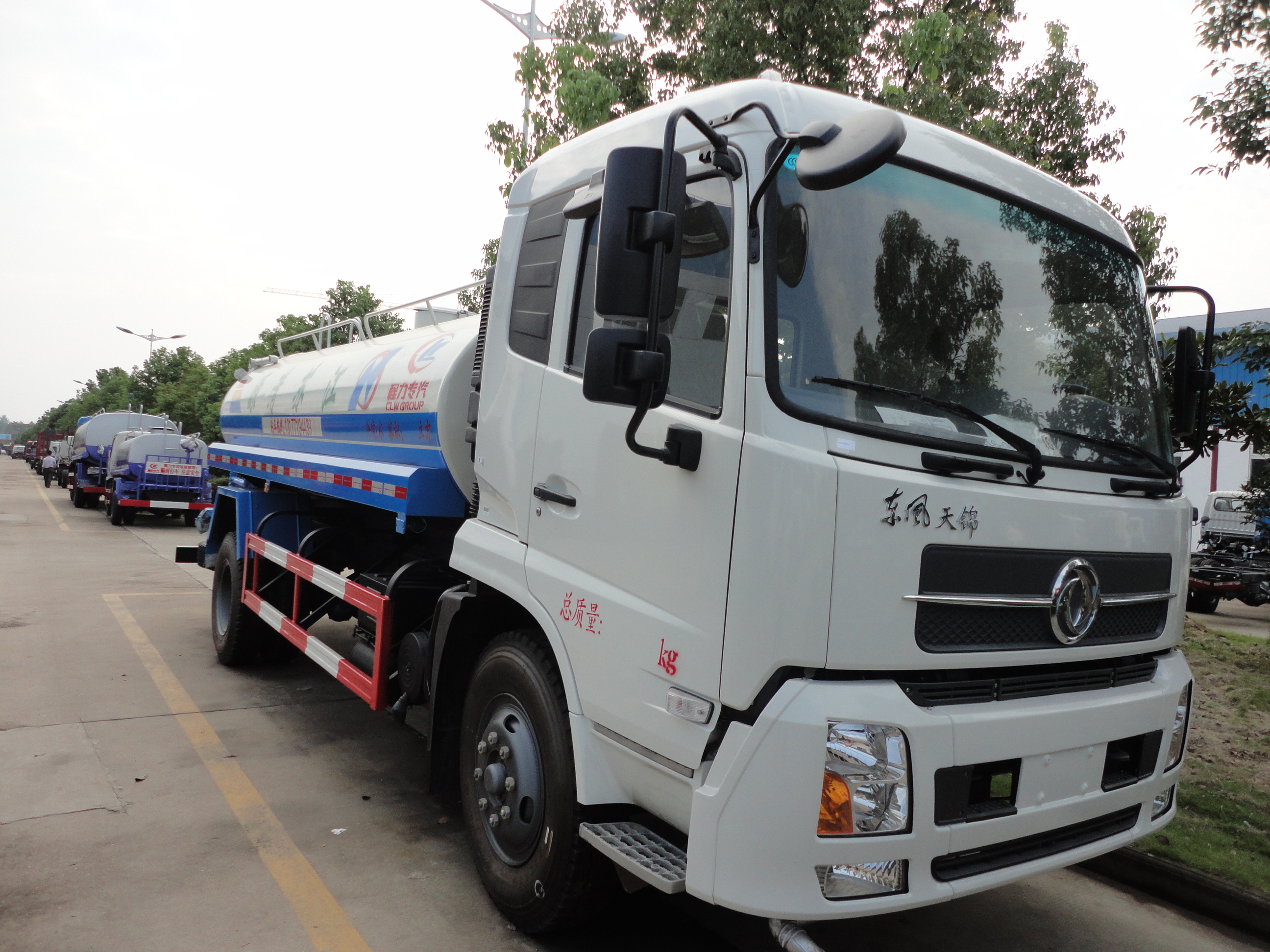

Hot sale Dongfeng tianjin water truck for sale
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
