| Item | Unit | Main parameters |
| Product name | LPG gas storage tank（12000L） | |
| Product model | CLG1800-12 | |
| Loading medium | LPG gas (propane) | |
| Overall dimension(L*W*H) | mm | 5034*1820*2410 |
| Tank dimension(inner diameter*thickness*length) | mm | DN1800*10*5034 |
| Tank volume | m3 | 12cbm |
| Tank thickness | mm | 10 |
| End heads thickness | mm | 12 |
| Curb mass | kg | 3380 |
| Rated mass | kg | 4788 |
| Designed pressure | Mpa | 1.77 |
| Working pressure | Mpa | ≤1.6 |
| Working temperature | ℃ | ≤50 |
| Hydraulic test pressure | Mpa | 2.22 |
| Air tight test pressure | Mpa | 1.77 |
| Tank and main Material pressure components | Q345R、16Mnlll | |
| Standard | <>,<> | |
| Chosen assembly | Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc. | |

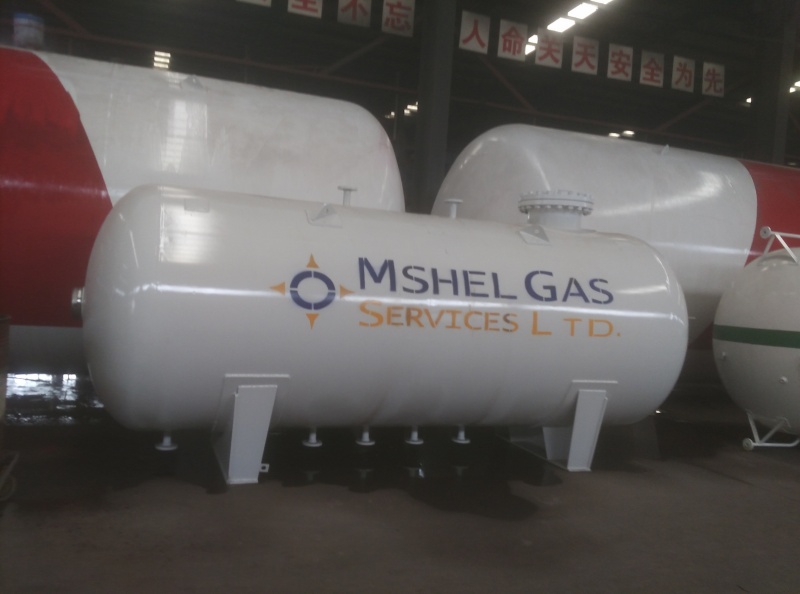

small 12m3 liquid propane gas tank pictrues as below
HOT SALE！ bulk lpg gas storage tanker for sale
As a professional special vehicle manufacturer in China, we manufacture the biggest LPG truck in China whose valid volume is 35.5m3, the biggest lpg trailer in the world whose valid volume is 59.52m3. And the lpg gas tank we manufacture is from 5cbm to 200cbm. We not only manufacture lpg gas storage tank on ground but also the lpg gas storage tank under ground.
We have manufacture license of A2 type of pressure vessel, C2 type of lpg trucks for sale, C3 type of lpg tank container, etc. The material of our lpg tank for sale is Q345R and the limited service time of our lpg tank is 15 years.
If you are interested in our lpg gas tank and want to get the latest lpg tank price, please feel free to contact Ms. Anita Deng. The hot sale line is 0086 13329899995.
