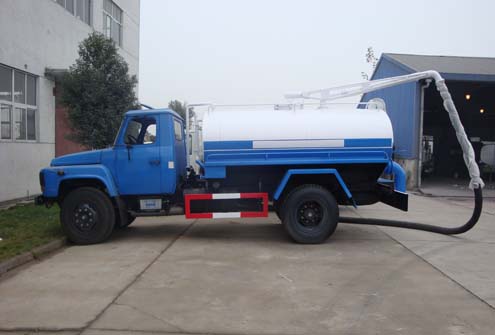

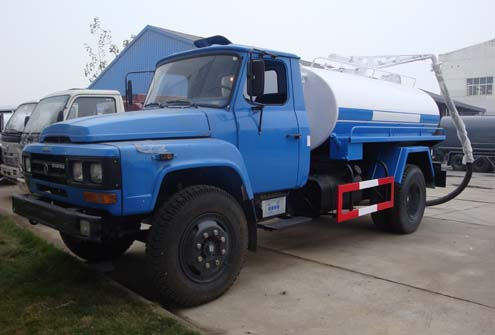

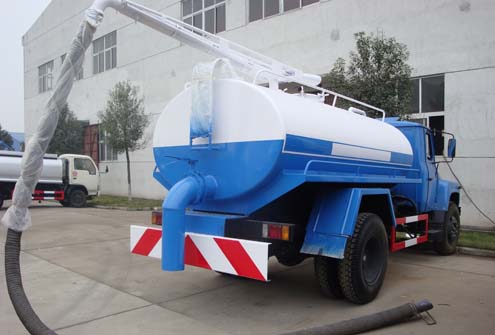

| Dongfeng 140 fecal suction truck for sale | |
| Main parameters | |
| Product name | Dongfeng vacuum fecal suction truck |
| Chassis model | EQ1102/EQ1100 |
| Rated mass(kg) | 5000 |
| Engine model | YC4E140-30 |
| power/displacement(kw/ml) | 105/4260 |
| Tanker volume(m3) | 5000L-6000L |
| Overall dimension(mm) | 6950×2470×2850(mm) |
| Tanker dimension(mm) | 3400×1900×1200 |
| ◆chassis main parameters | |
| Wheelbase(mm) | 3950 |
| front/rear tread(mm) | 1810/1800 |
| transmission | 5 speed transmission |
| bridge | 2.8ton front bridge/8ton rear bridge |
| Approach/departure angle | 34/19 |
| Front/rear suspension(mm) | 1065/1785 |
| Tyre specification | 9.00-20*6 |
| Steering | Power steering |
| Max speed(km/h) | 90 |
| ◆engine main parameter | |
| Engine model | YC4E140-30 |
| Max power (kw) | 105KW(140hp) |
| displacement(ml) | 4260 |
| Fuel type | Diesel |
| Emission standard | Euro 3 |
| Engine manufacturer | Yuchai |
| ◆special function | |
| The vacuum tank adopts high quality 4mm carbon steel, Basic equipments: Basic equipment: inspect feces window, gravity mouth, cleaning apparatus, fecal suction pipe, oil-water separators, overflow valve, etc. Fecal suction nozzle, special vacuum pump((rating rotate speed=1400r/m, min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, rotation: clockwise) ) the rear door of the fecal suction truck can be dumping hydraulic, and the discharging mouth is opened by air cylinders. | |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of vacuum truck, fecal suction truck, sewage suction truck, sludge tank truck, vacuum tank truck, etc in China. With many years' experience in supplying, We Chengli Special Automobile Co., Ltd. could supply dongfeng fecal suction truck, foton vacuum truck, FAW sewage suction truck, HOWO vacuum truck, North Benz sewage suction truck, ISUZU sewage suction truck, etc. More information, please feel free to contact with us.
