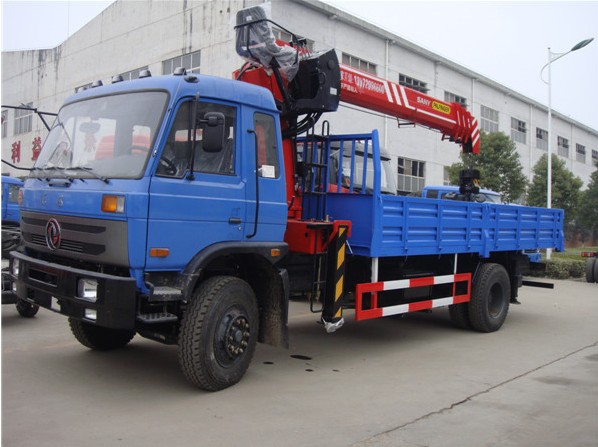

Dongfeng truck with 10 ton Palfinger SANY crane
1.Ultralong lifting boom,particular technology, strong lifting capacity, wide working range.
2.Easy operation,high humanness.
3.Utilize double pump hydraulic system,stong adaptability
4.Reasonable design, light curb weight, large carrying capacity.
5.Wide outrigger span, good working stability
6.Wide usage, high-level configuration, good quality
7.Nice appearance, sophisticated technology, long service time
Technical parameters of dongfeng 4*2 10ton truck with crane
Items | Descriptions | Specifications and Types |
General | Truck Name | dongfeng 10ton Palfinger Truck mounted crane |
Drive Type | 4*2 | |
Gross Vehicle Weight(kg) | 16000 | |
Curb Weight (kg) | 8305 | |
Overall Dimensions L*W*H(mm) | 9000×2500×3790 | |
Engine | Engine Model | B190 33 |
|
| |
Fuel Type | Diesel | |
Power | 140kw/190HP | |
Emission Standard | Euro III | |
Displacement(ml) | 5900 | |
Engine Type | 6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
Chassis | Chassis Brand | Dongfeng |
Front/Rear Axle Load(KG) | 6000/10000 | |
Tire No. | 6 | |
Tire Specification | 9.00-20 Nylon tire or 9.00R20 steel tire | |
Wheelbase (mm) | 4700 | |
Axle No. | 2 | |
Gear Box | 6 speed forward with 1 reverse, manual | |
Brake | Air brake | |
Radiator | Suitable for tropical climate | |
Front/rear suspension(mm) | 1430/2570 | |
Leaf Spring No. | 8/10+8 | |
Crane and outrigger | Max lifting weight(kg) | 10000 |
Max lifting Moment(t.m) | 25 | |
Max lifting height(m) | 16.5 | |
Max working range(m) | 14.5 | |
Boom Type | Hydraulic drive,synchronous telescopic boom | |
Boom No. | 4 section | |
Outrigger No. | 2 pcs front outrigger, rear outrigger is optional | |
Outrigger Span(mm) | 2280/5600 |
