16ton dongfeng 8x4 crane truck
1. Cummins engine 340hp
2. dongfeng 8x4 chassis
3.16ton folded& straight crane boom
4. 360 degreee full rotation
5.four outrigger, high stability
Main Technical Parameter | ||||
Product Name | dongfeng 8*4 16ton folded Crane Truck | Gross Vehicle Weight (kg) | 31000 | |
Max Lifting Capacity | 16,000kg at 2.5m | Cab Allowed Persons | 3 | |
Axle No. | 4 | Wheelbase (mm) | 1850+4350+1350 | |
Drive Type | 8x4 | Max Speed(km/h) | 90 | |
Chassis Technical Parameter | ||||
Chassis Model | EQ | Chassis Name | Truck Chassis | |
Chassis Brand | Dongfeng | Manufacturer | Dongfeng Automobile Co., Ltd | |
Overall Dimension (mm) | 10930×2500×3030 | Tyre No. | 12 with 1 spare tyre | |
App./ Dep. Angle(º) | 19/20 | Tyre Spec. | 11.00-20 | |
Leaf Spring No. | 9/9/10 | Front Track (mm) | 2050/2050 | |
Fuel Type | Diesel | Rear Track (mm) | 1860/1860 | |
Steering Wheel | Power-assistant | Brake System | Air brake | |
F/R Suspension(mm) | 1460/2465 | Axle Load(kg) | 6500/6500/18000 | |
Engine Technical Parameter | ||||
Engine Model | IsLe340 30 | Emission Standard | Euro III | |
Displacement ( mL ) | 8900 | Power | 250kw/340hp | |
Superstructure Technical Parameters | ||||
Max Lifting Moment | 40T.M | Boom No. | 4 | |
Rotation Degree | 360° | Max Working Radius | 10.1 | |
Max Lifting Height | 11.8m | Steel wire rope | ¢16mm x 100m | |
Outrigger No. | 4 | Horizontal Span of outrigger | 2.4-7.2m | |
Hydraulic pressure | 24Mpa | Hydraulic Tank Volume | 180L | |

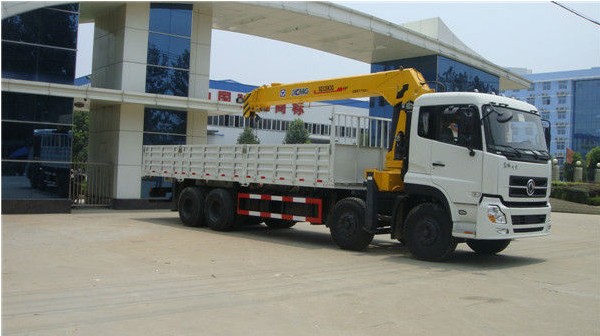

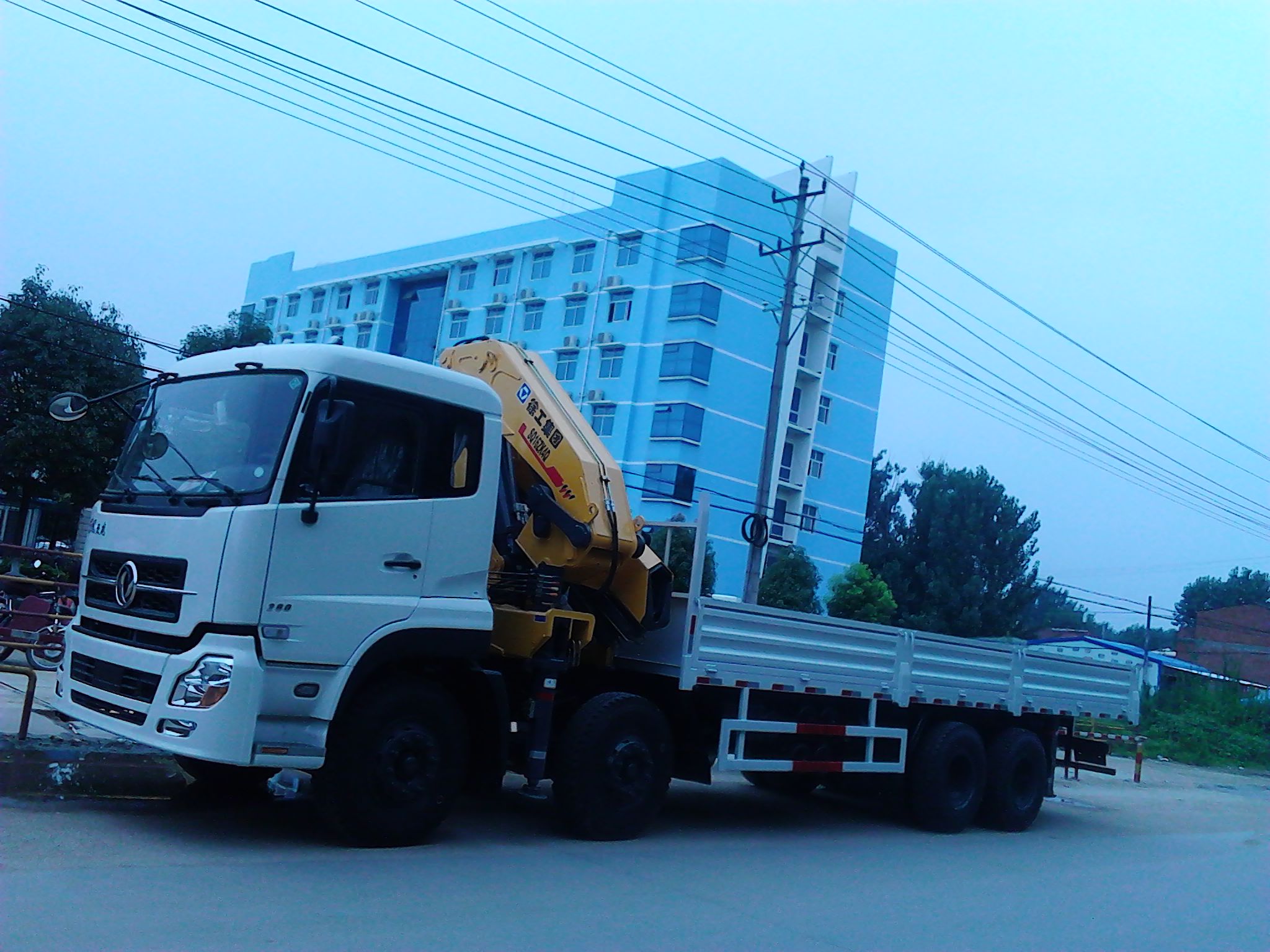

dongfeng 16ton folded crane truck with rear ladder

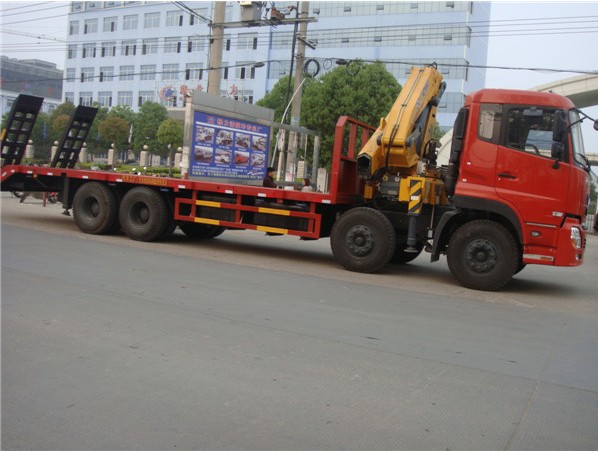

dongfeng 16ton straight cargo truck with crane

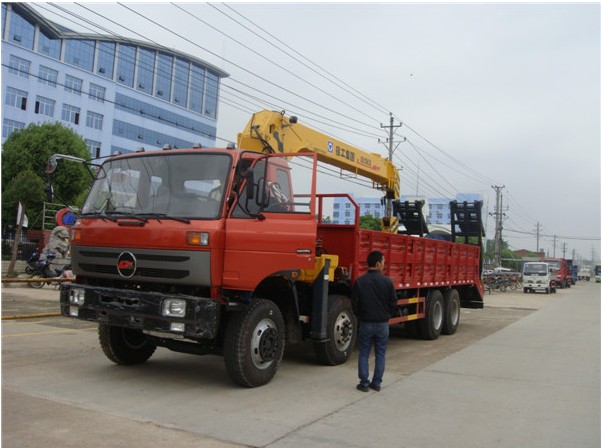

dongfeng 16ton straight crane truck with rear ladder

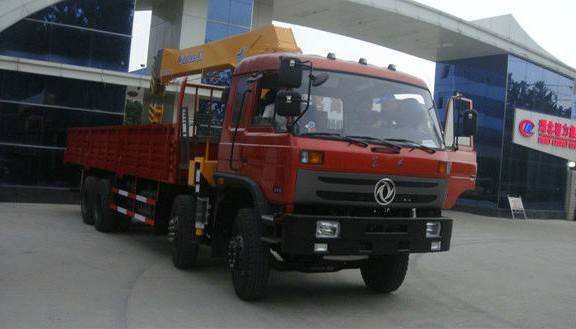

dongfeng tianlong 16ton folded crane truck
dongfeng tianlong 8*4 straight crane truck
More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
